1956 Plymouth Dealership Data Book
Chassis

If you were able to order your car new at your local dealership back when our cars were new, your ever-friendly salesman likely would have sat down with you and paged through one of these books with you. They typically show some of the major options and option groups available for each model line along with some photos. They were not meant to be a "complete" list of options, and since they were printed just as the new model year began these books do contain some errors at times.
Like just about everything here at HH, this section will be a work in progress and other data books will be added as time goes on.

Special thanks to SuperB & Doug Hammer! SuperB let Doug borrow this book so he could scan it for us, thanks guys!

STYLING BODY CHASSIS ENGINES/TRANSMISSIONS
MODELS/EQUIPMENT OPTIONS COMPARISONS

CLICK ON IMAGES TO ENLARGE
Image: 56_Plymouth_Chassis_01

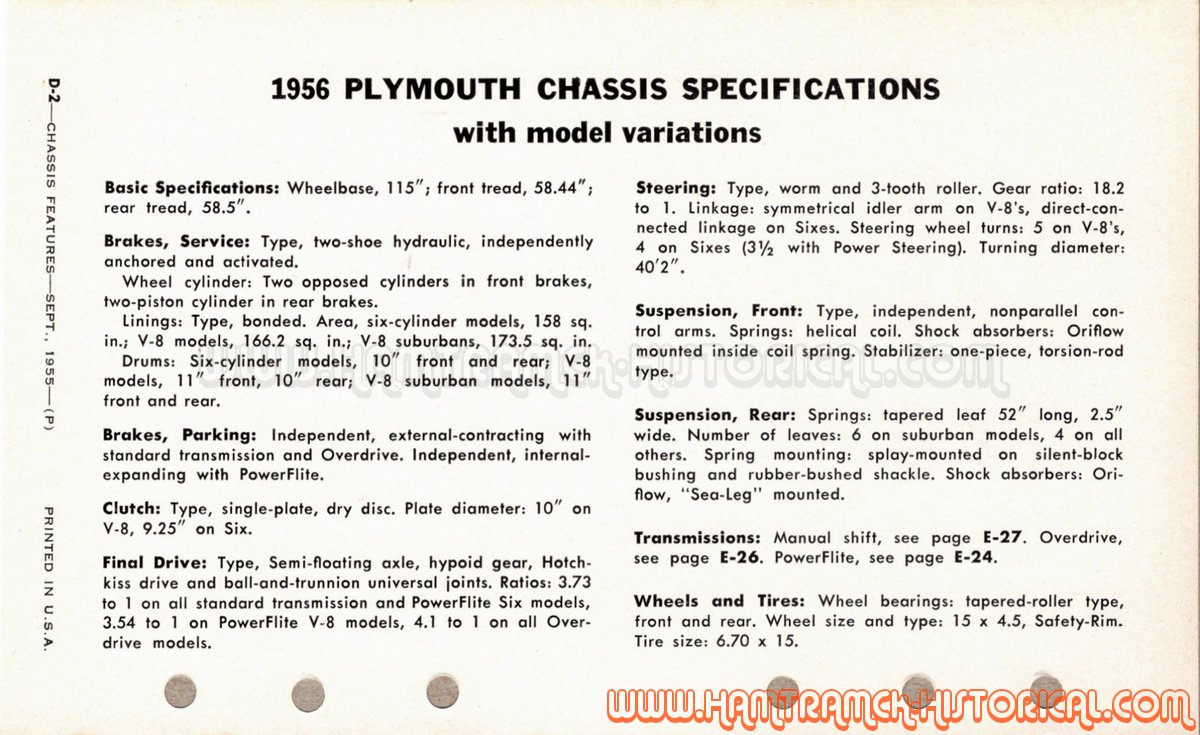

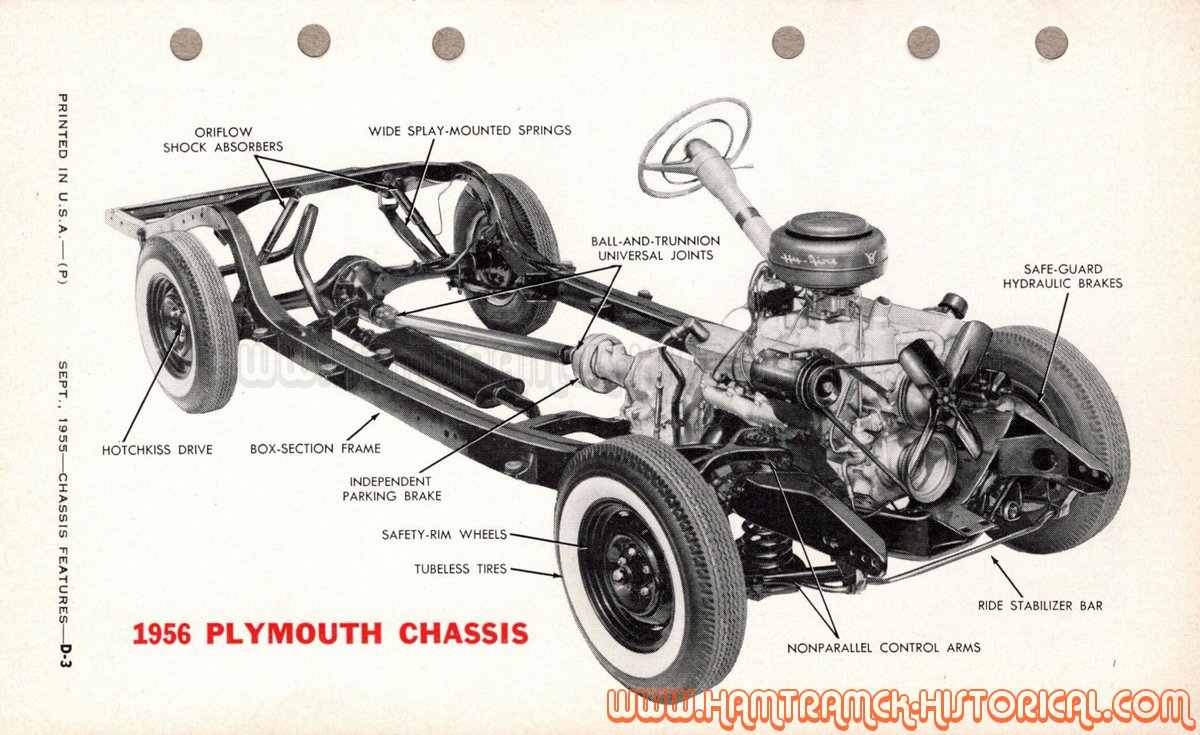

1956 Plymouth Chassis Specifications
with model variations
Image: 56_Plymouth_Chassis_02

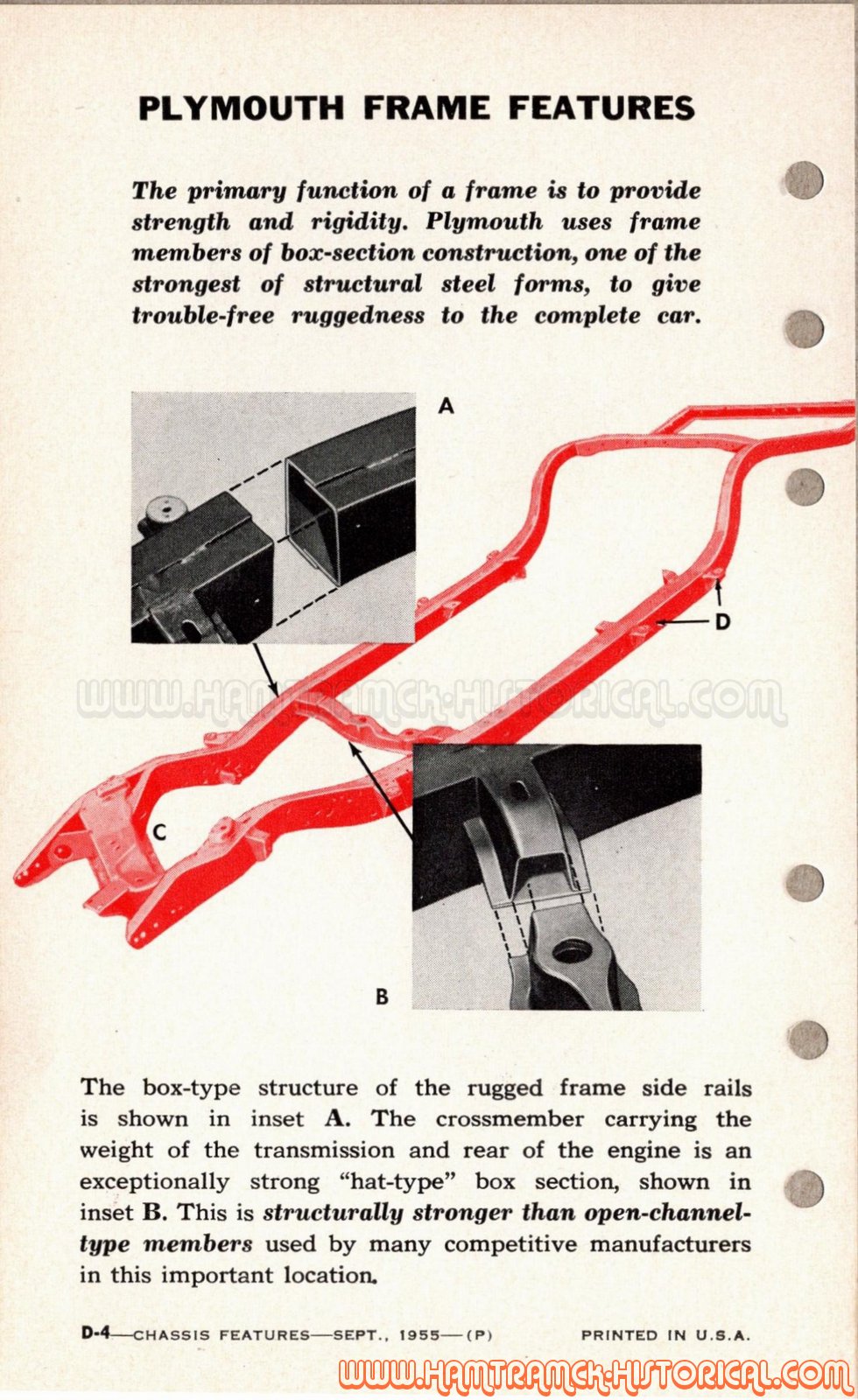

Image: 56_Plymouth_Chassis_03

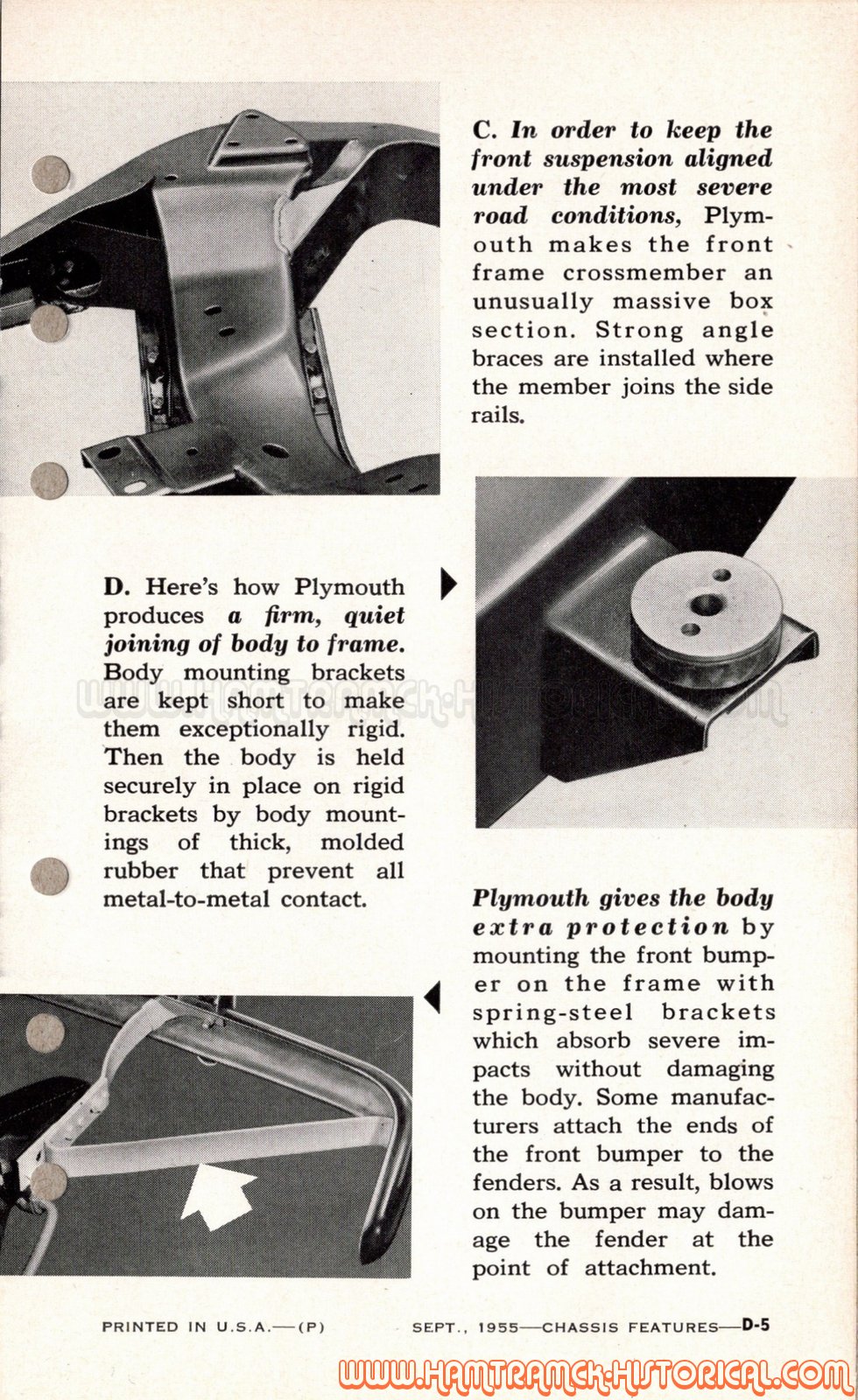

Image: 56_Plymouth_Chassis_04

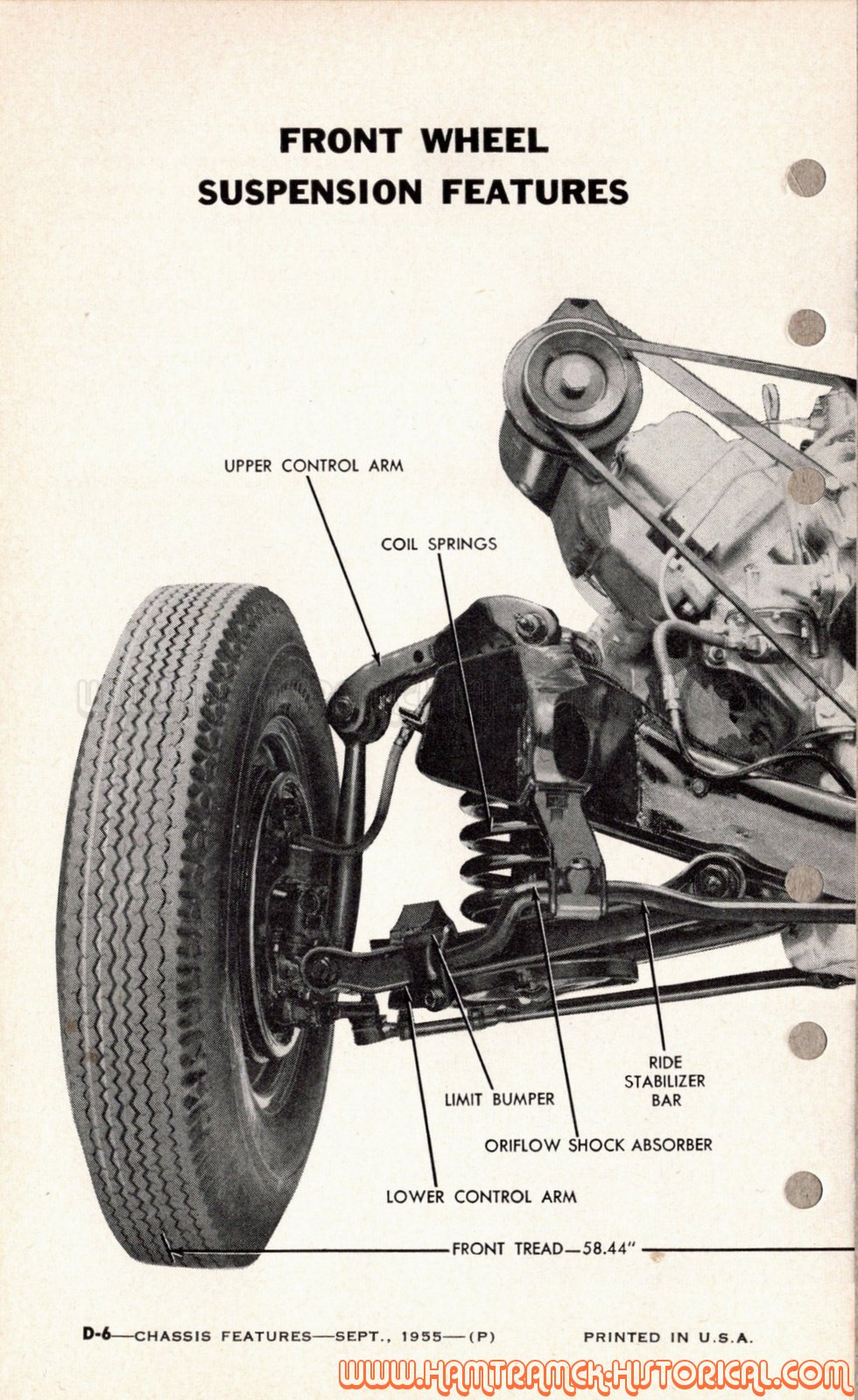

Image: 56_Plymouth_Chassis_05
Image: 56_Plymouth_Chassis_06

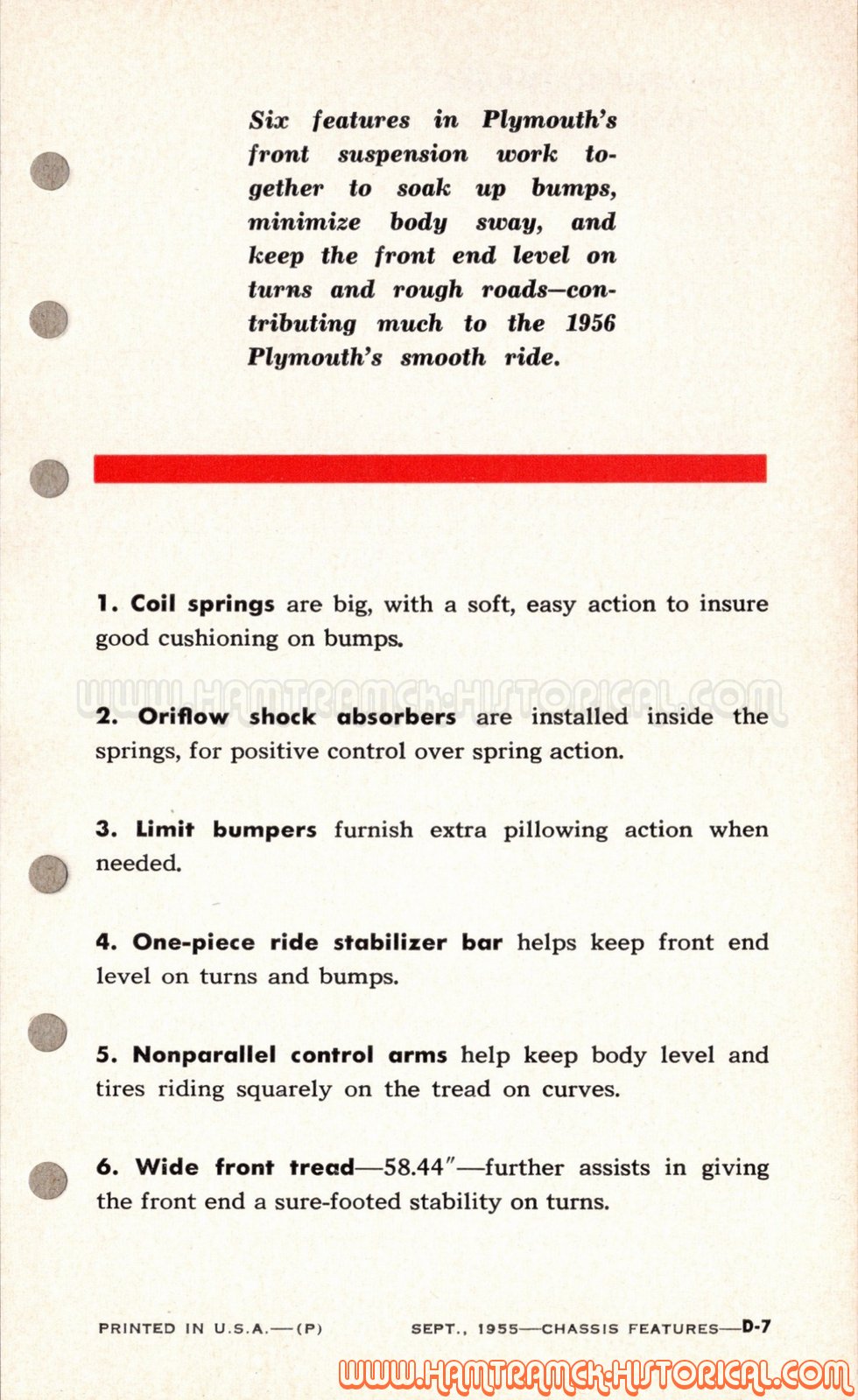

Six features in Plymouth's front suspension work together to soak up bumps, minimize body sway, and keep the front end level on turns and rough roads - contrbuting much to the 1956 Plymouth's smooth ride.

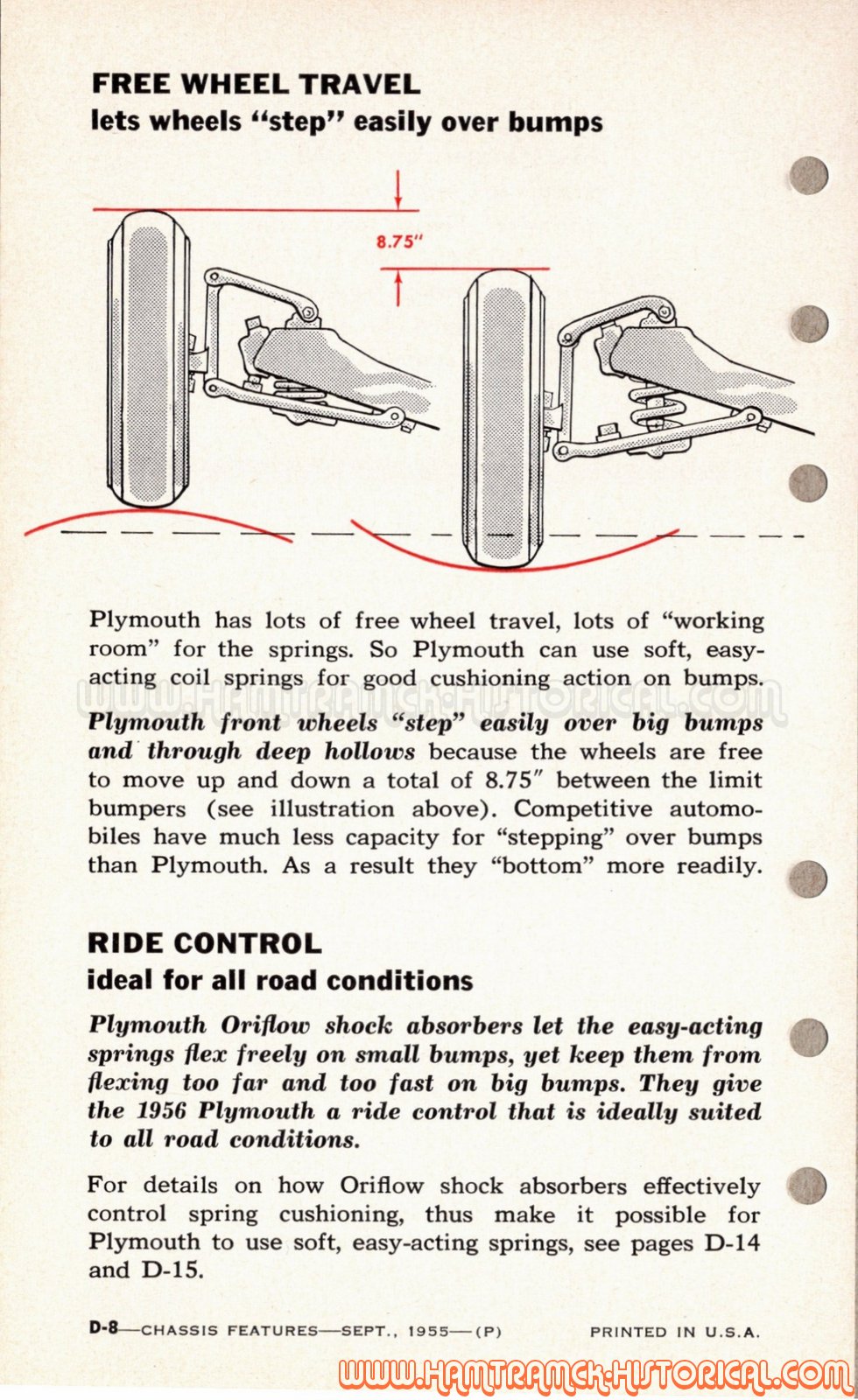

Image: 56_Plymouth_Chassis_07

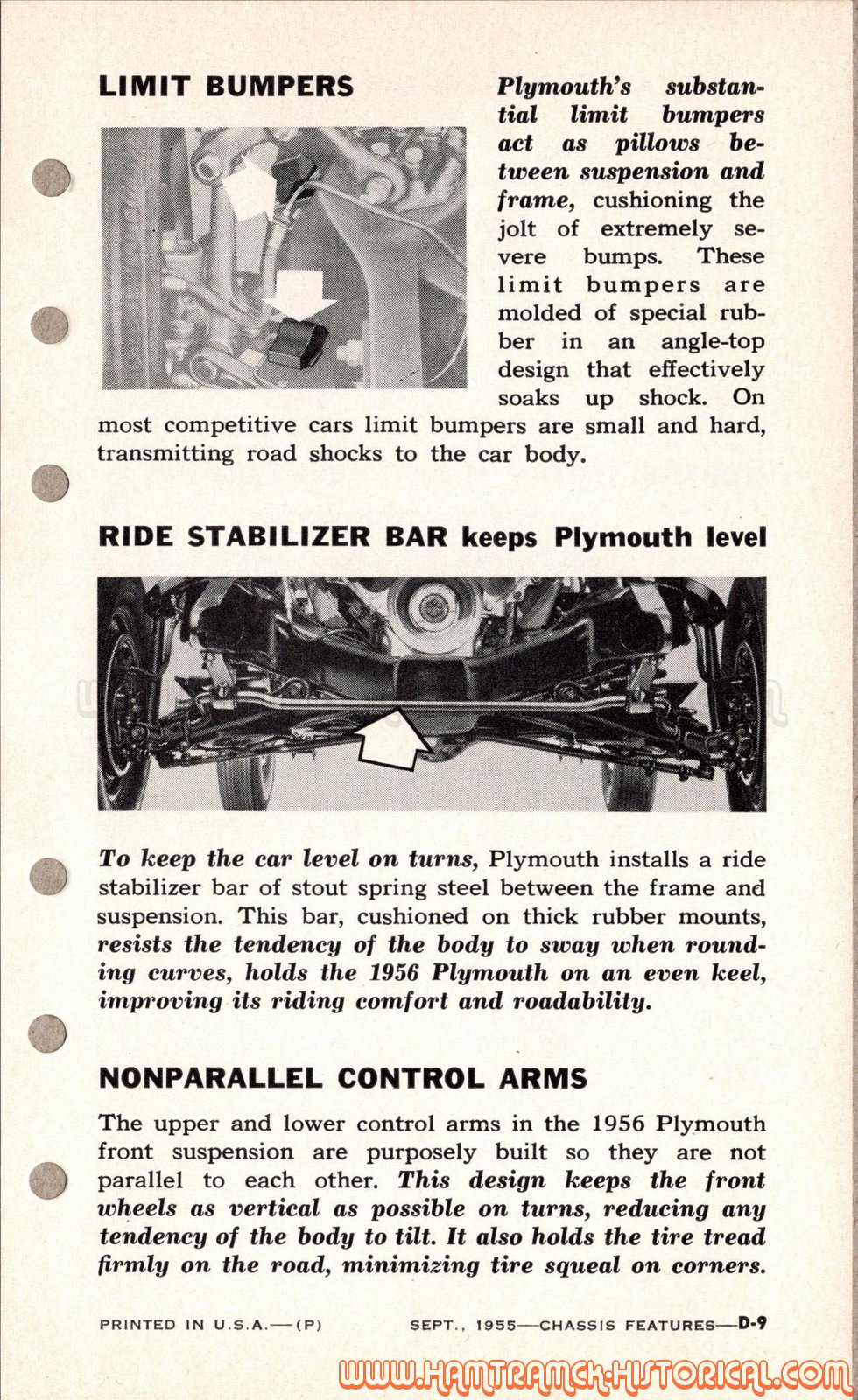

Image: 56_Plymouth_Chassis_08

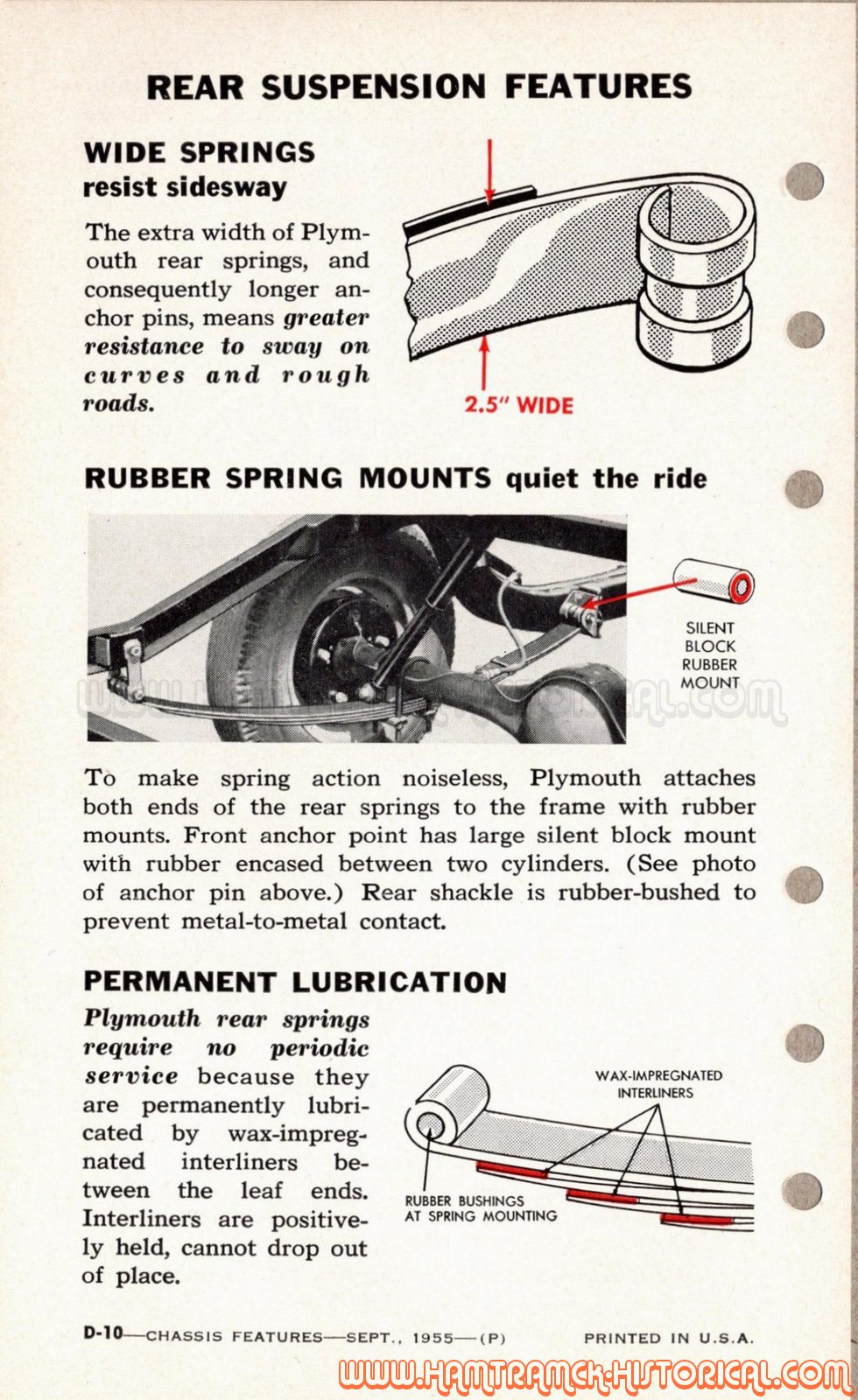

Image: 56_Plymouth_Chassis_09

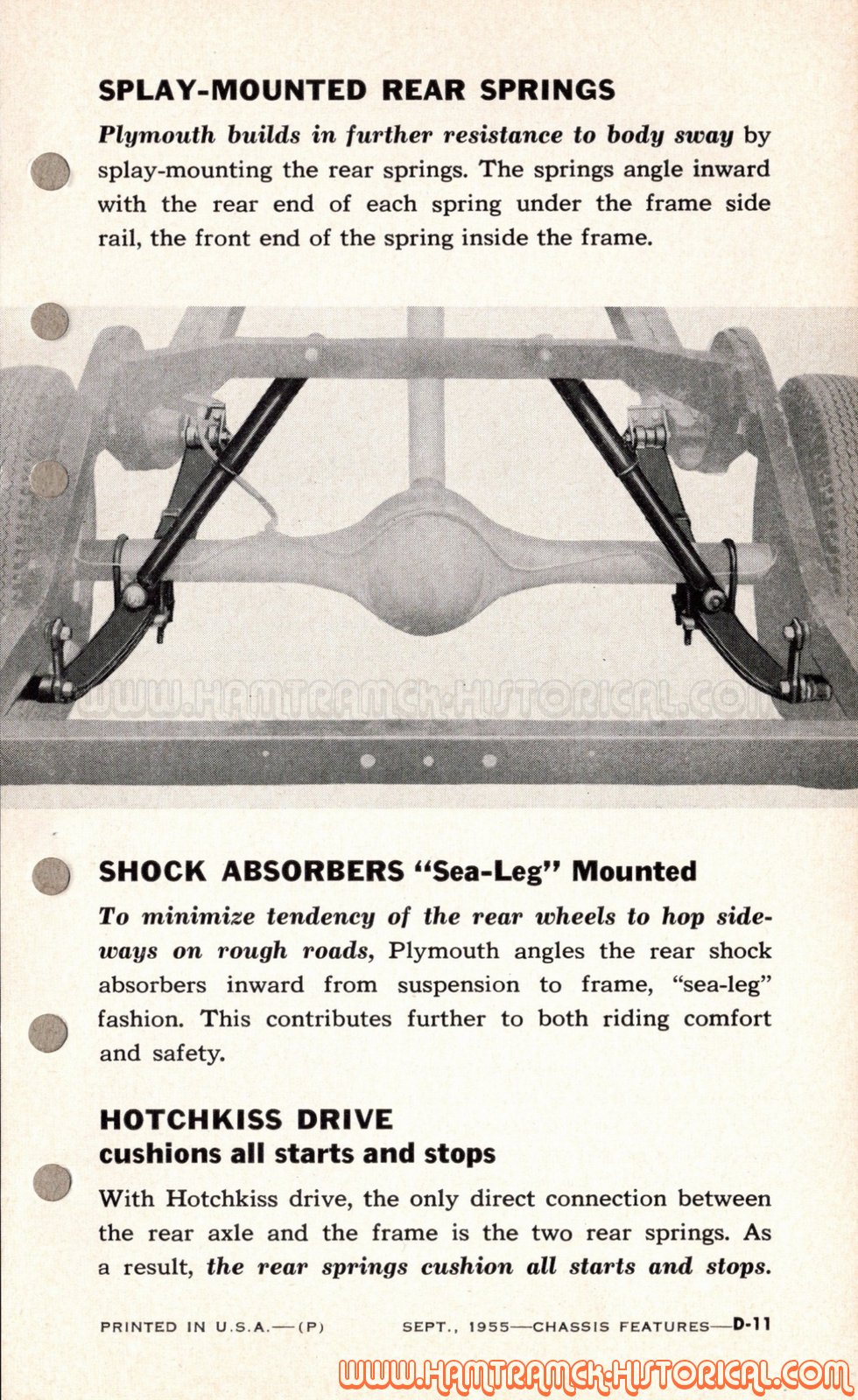

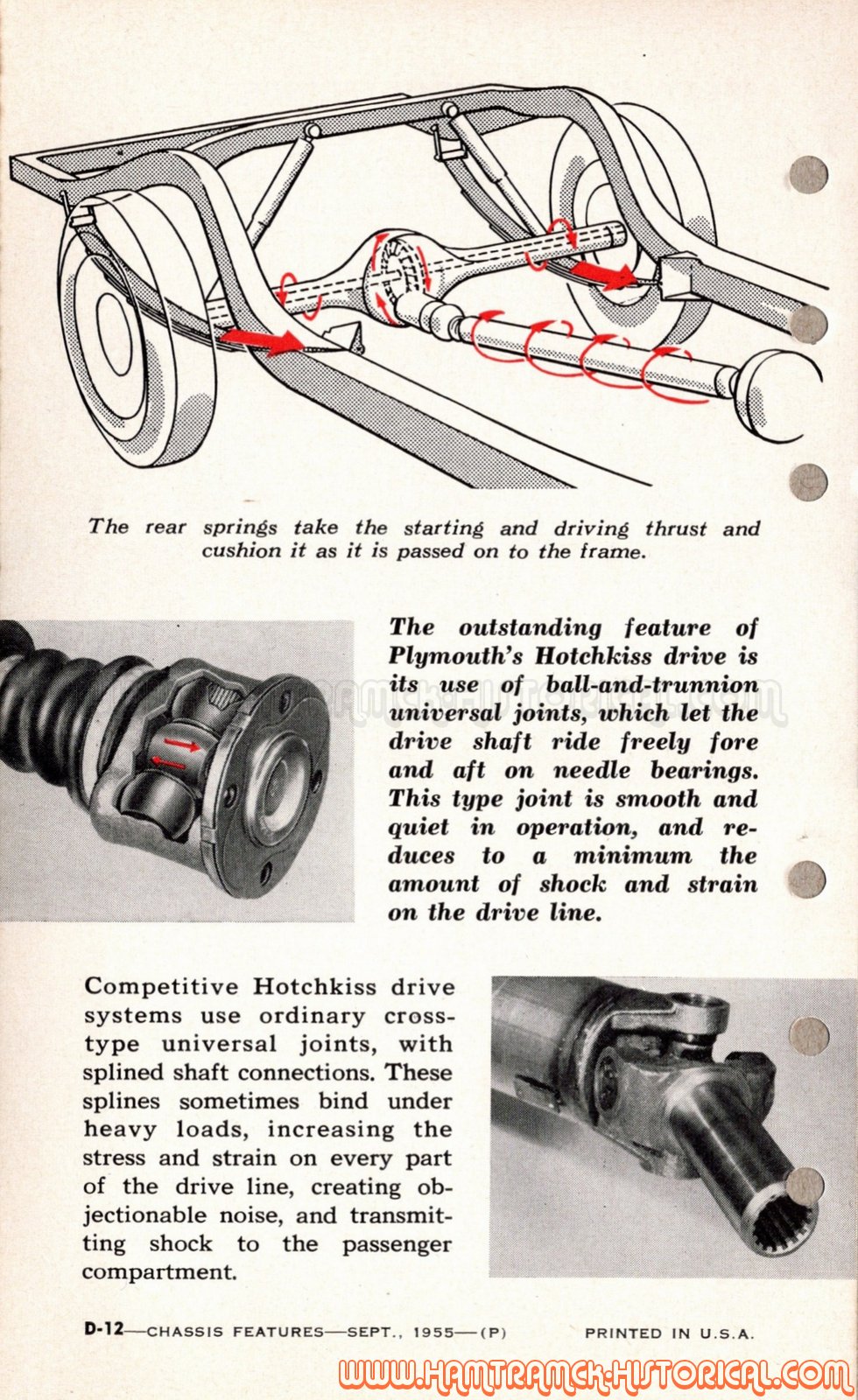

Image: 56_Plymouth_Chassis_10

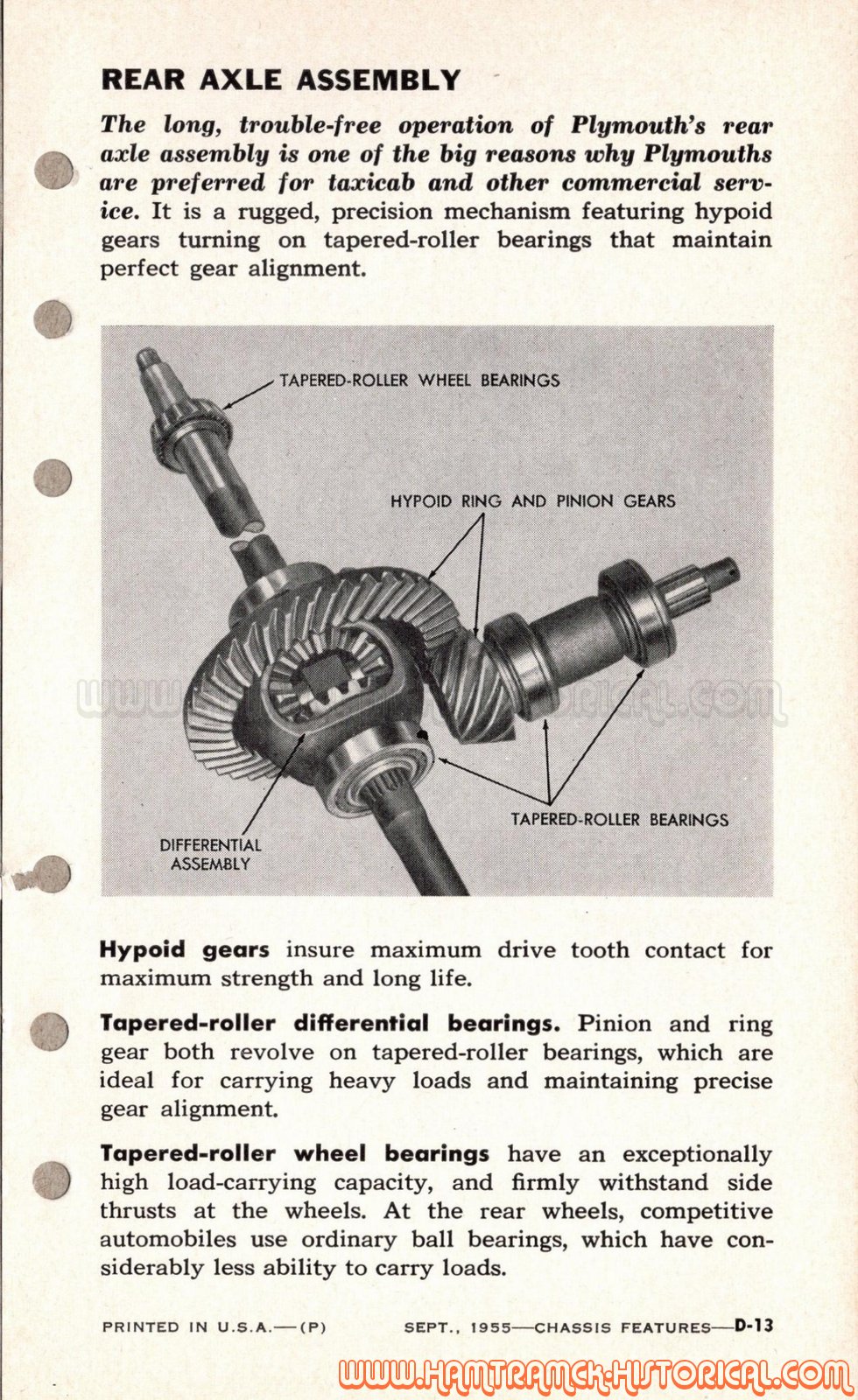

Image: 56_Plymouth_Chassis_11
Image: 56_Plymouth_Chassis_12

Image: 56_Plymouth_Chassis_13

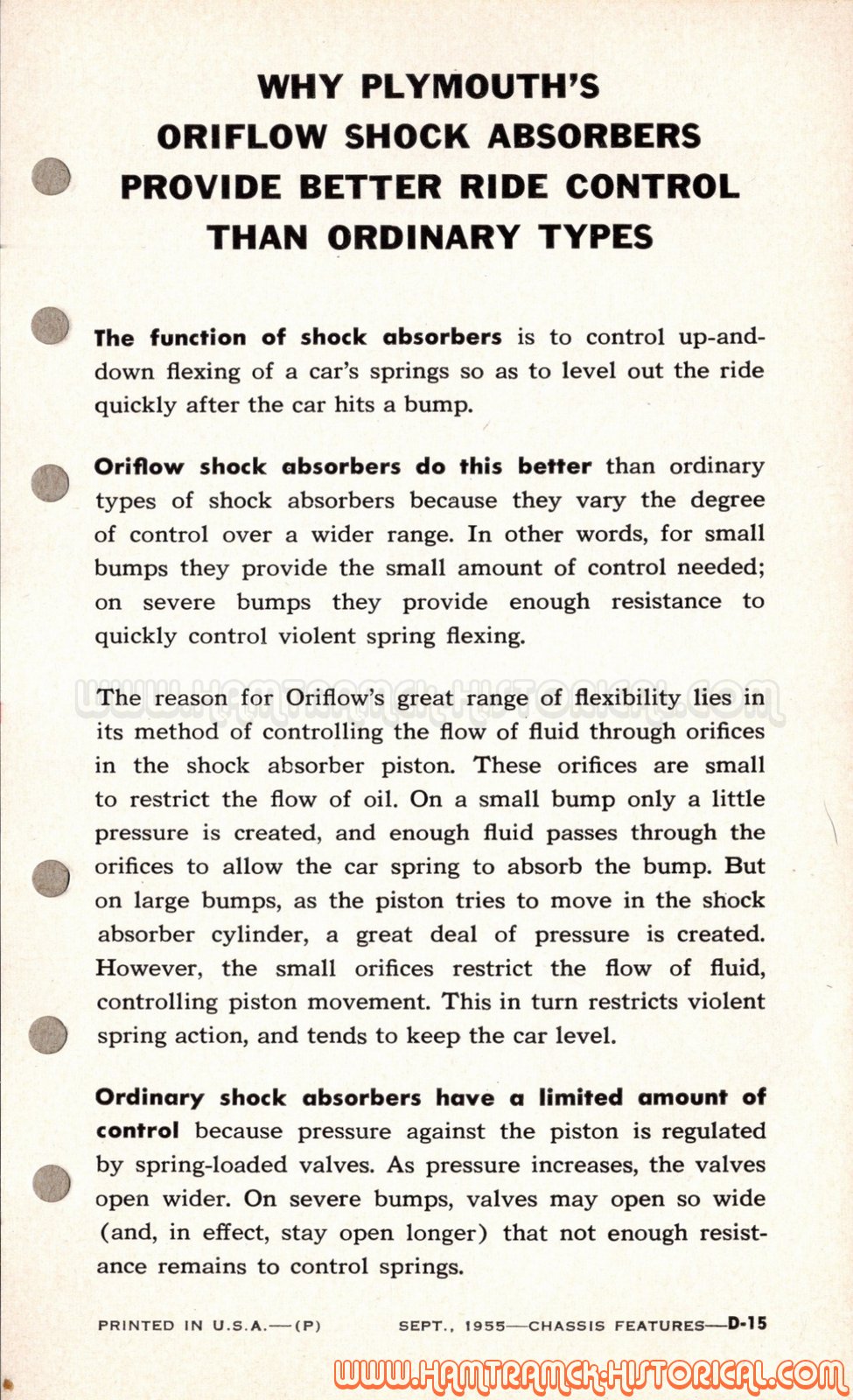

Image: 56_Plymouth_Chassis_14

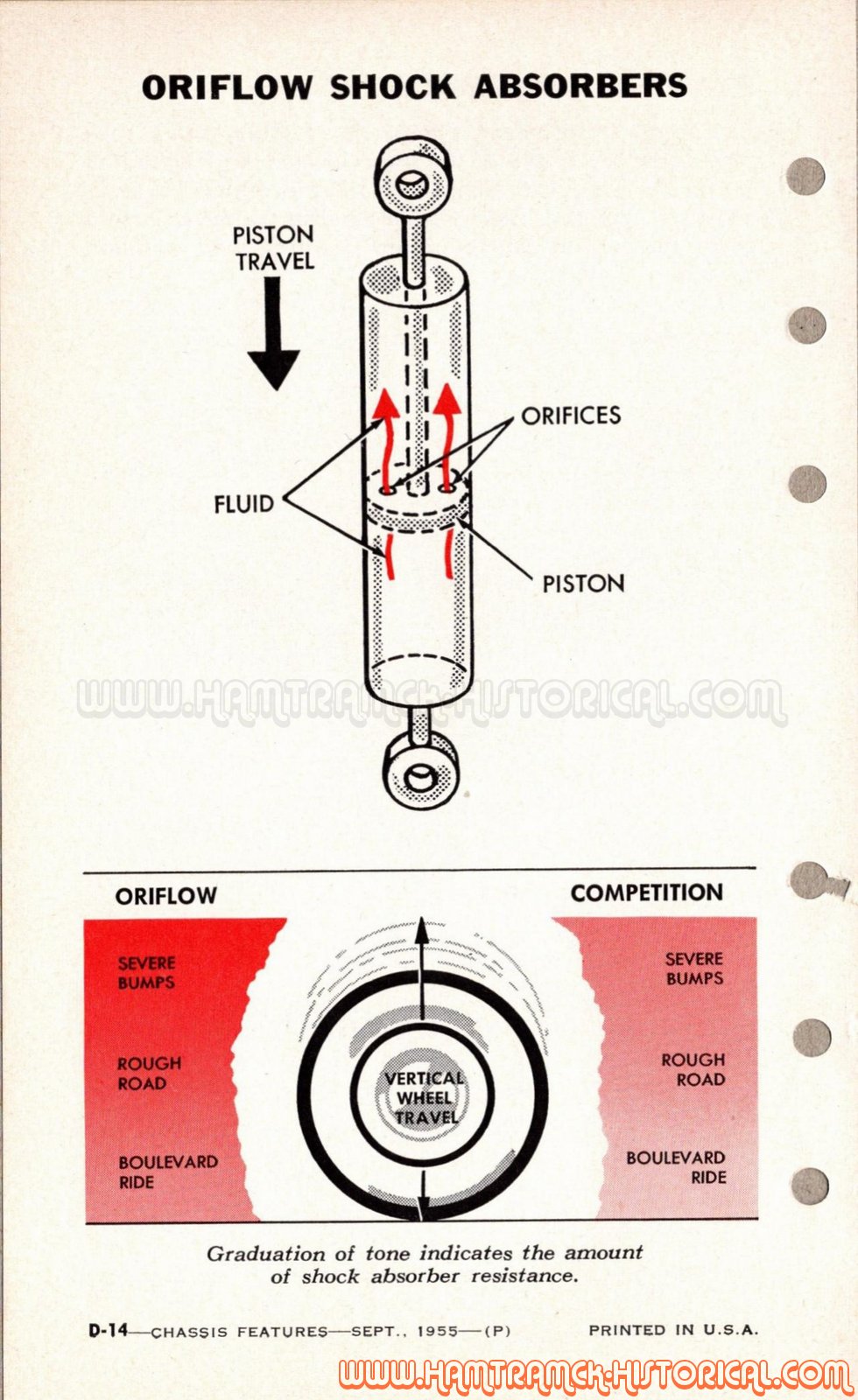

Why Plymouth's Oriflow Shock Absorbers Provide Better Ride Control Than Ordinary Types

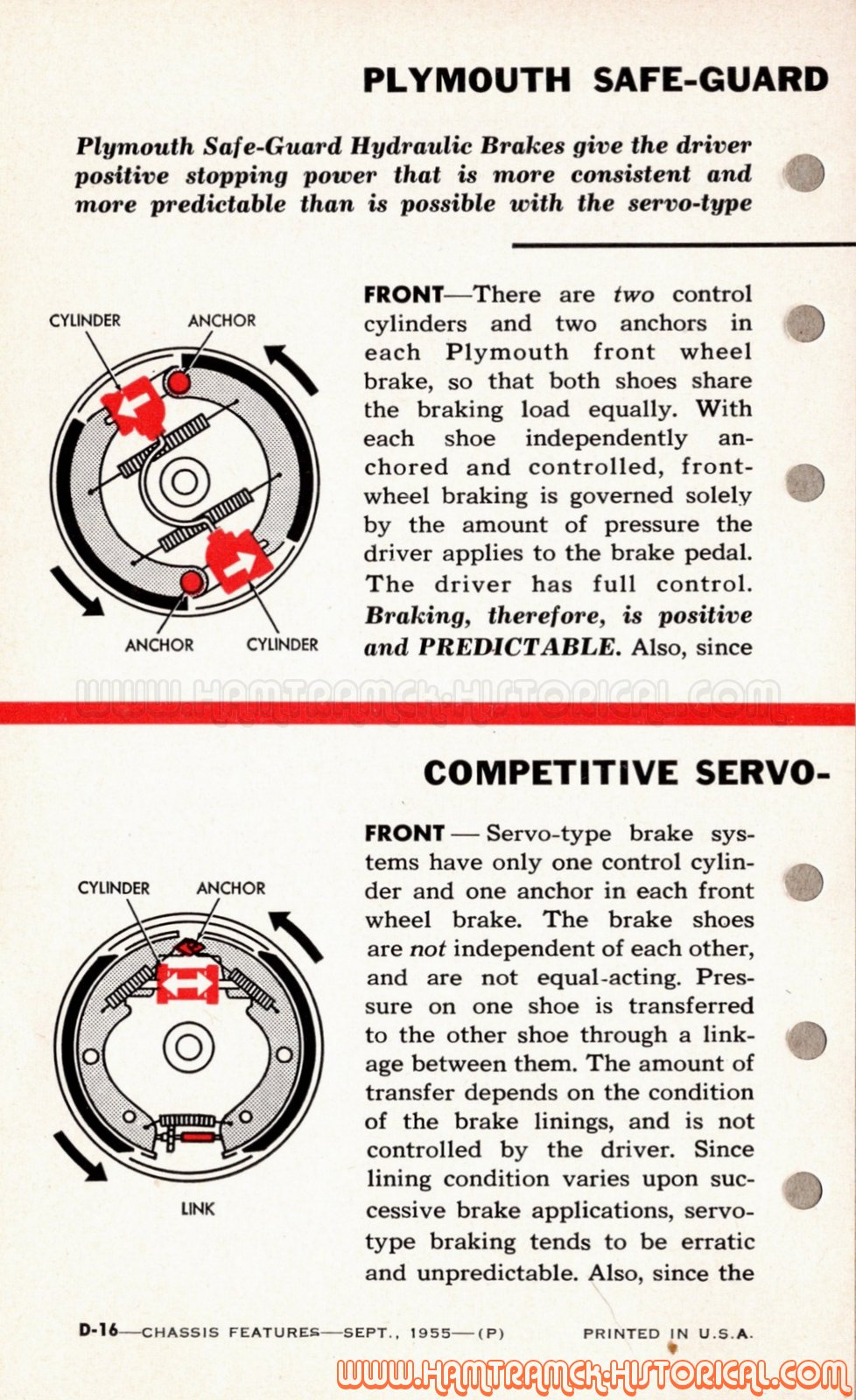

Image: 56_Plymouth_Chassis_15

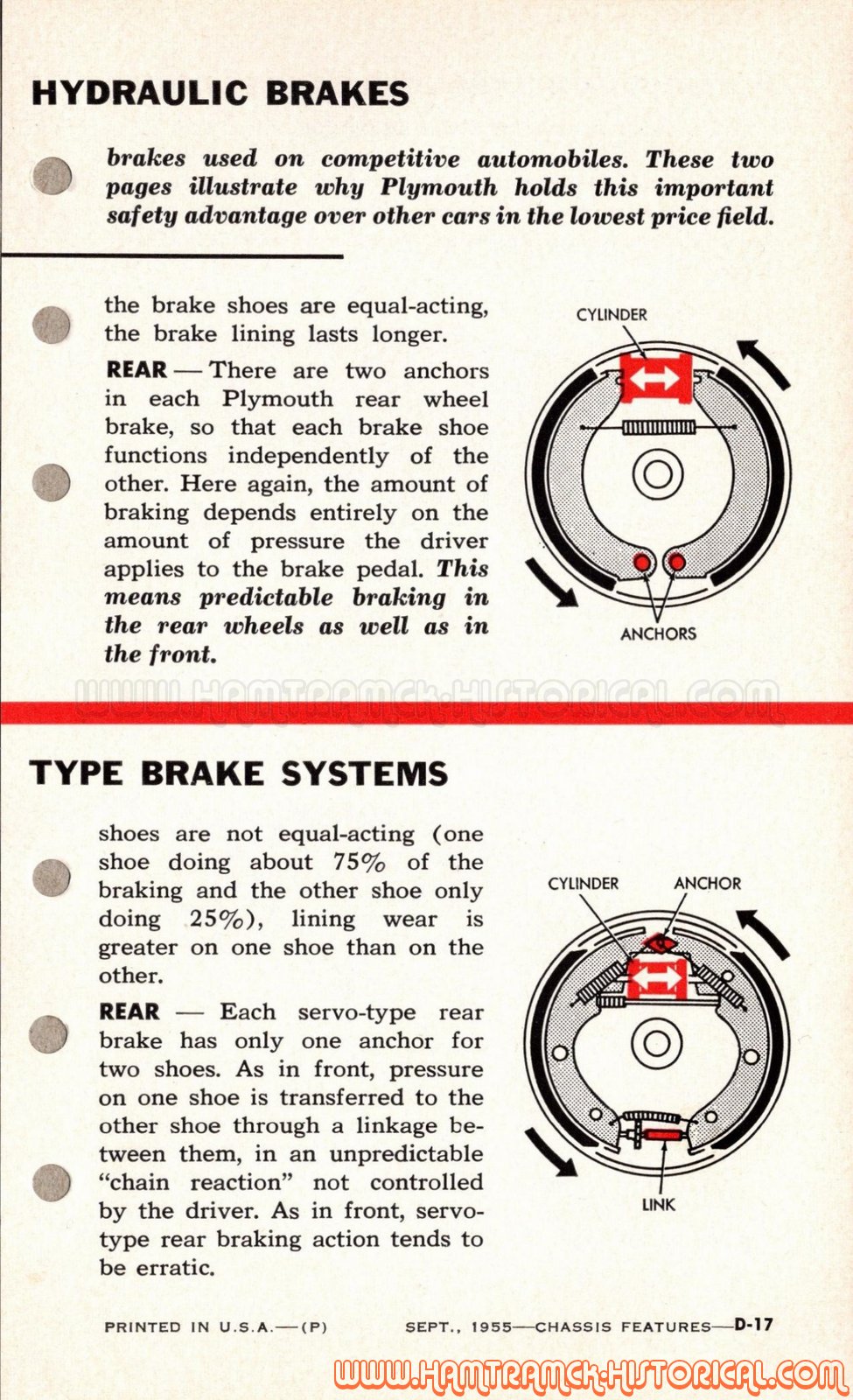

Image: 56_Plymouth_Chassis_16

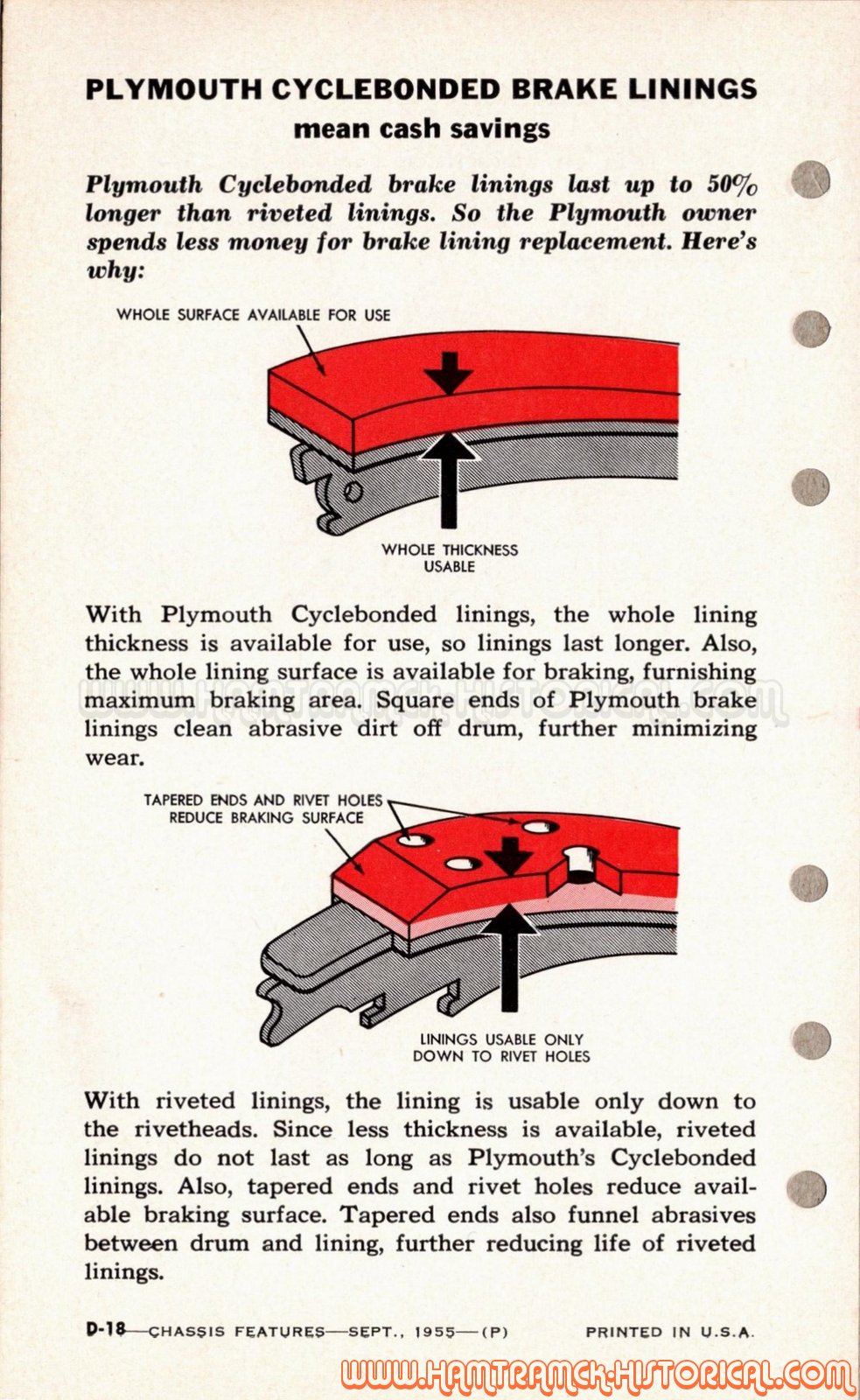

Image: 56_Plymouth_Chassis_17

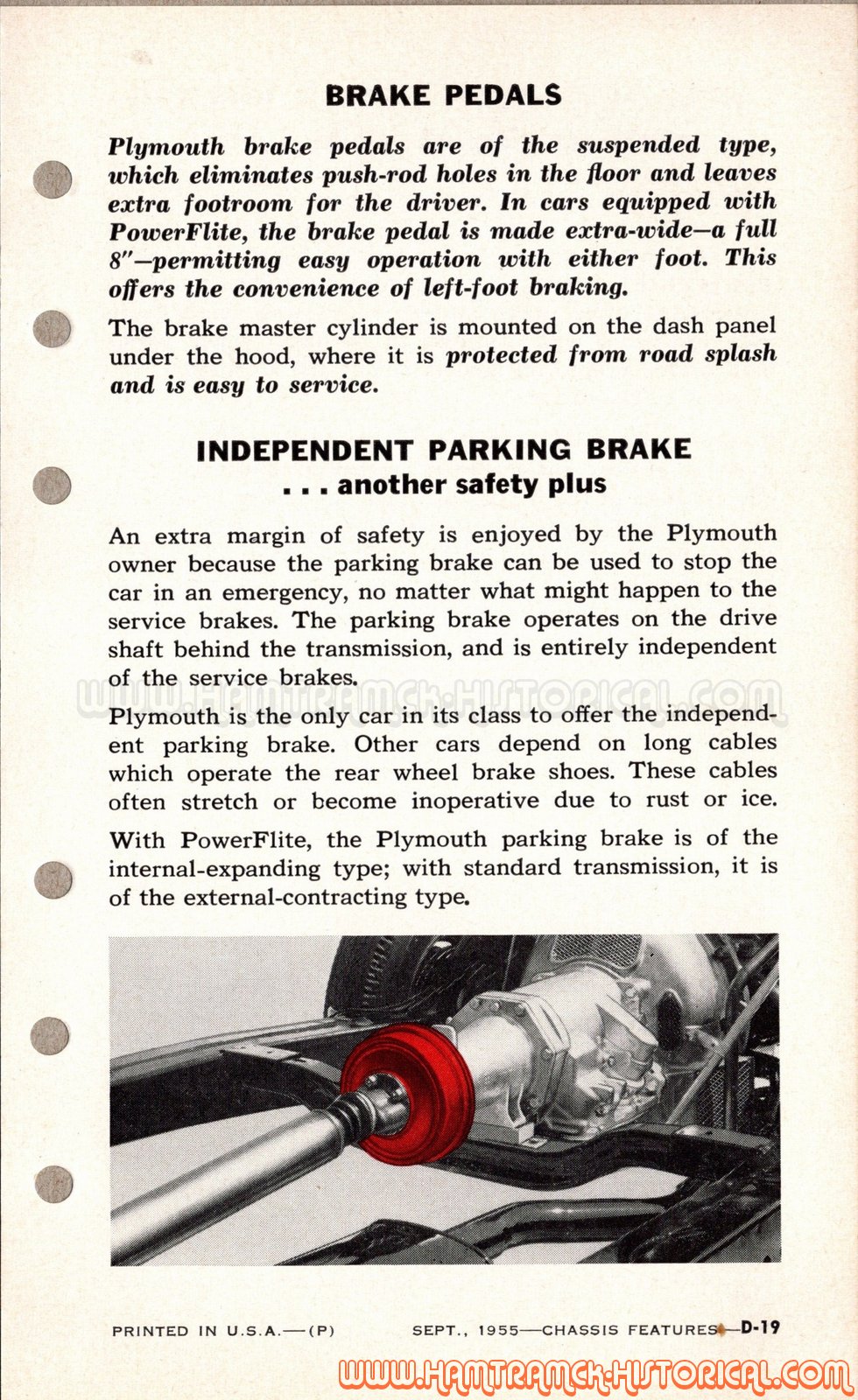

Image: 56_Plymouth_Chassis_18

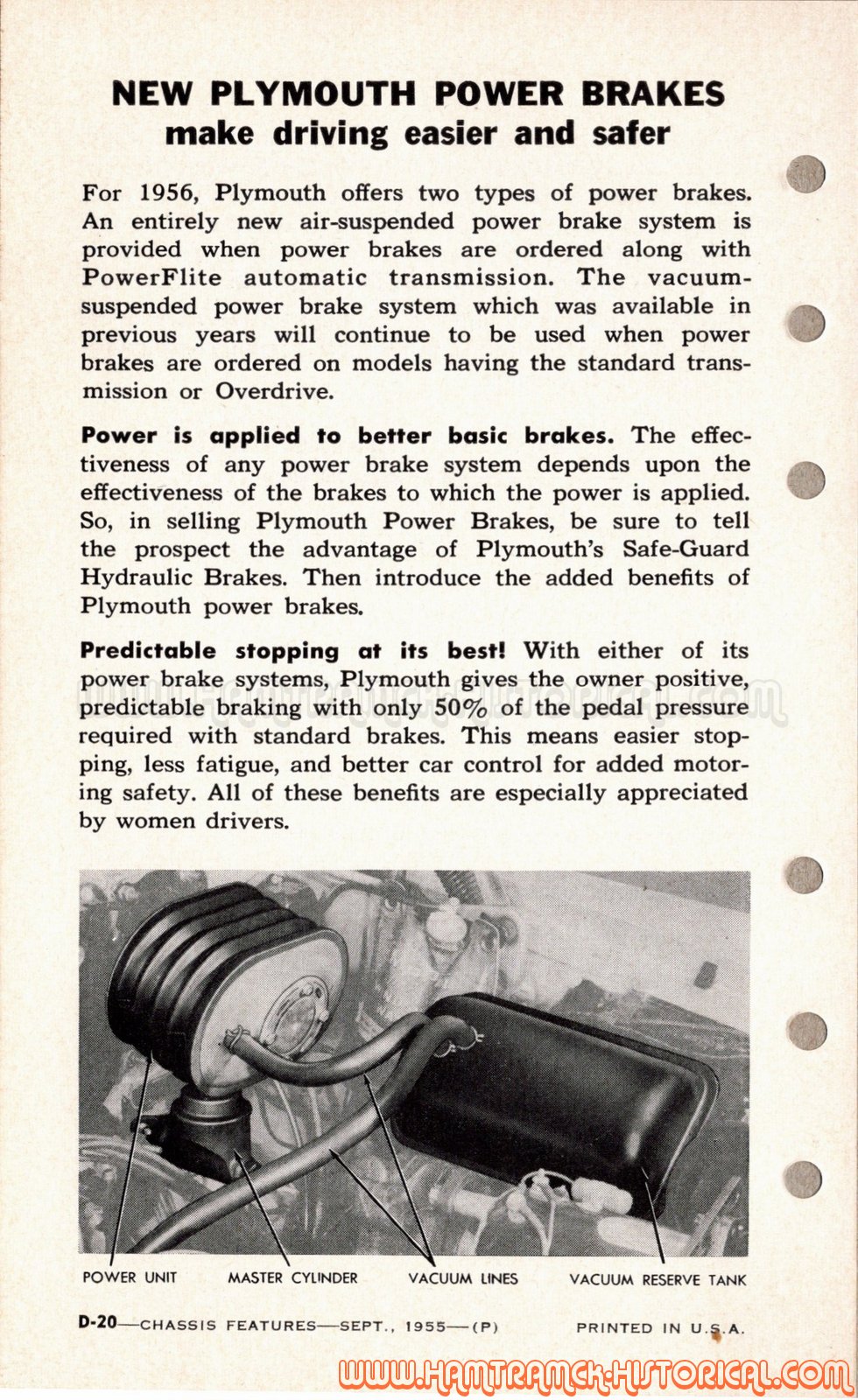

Image: 56_Plymouth_Chassis_19

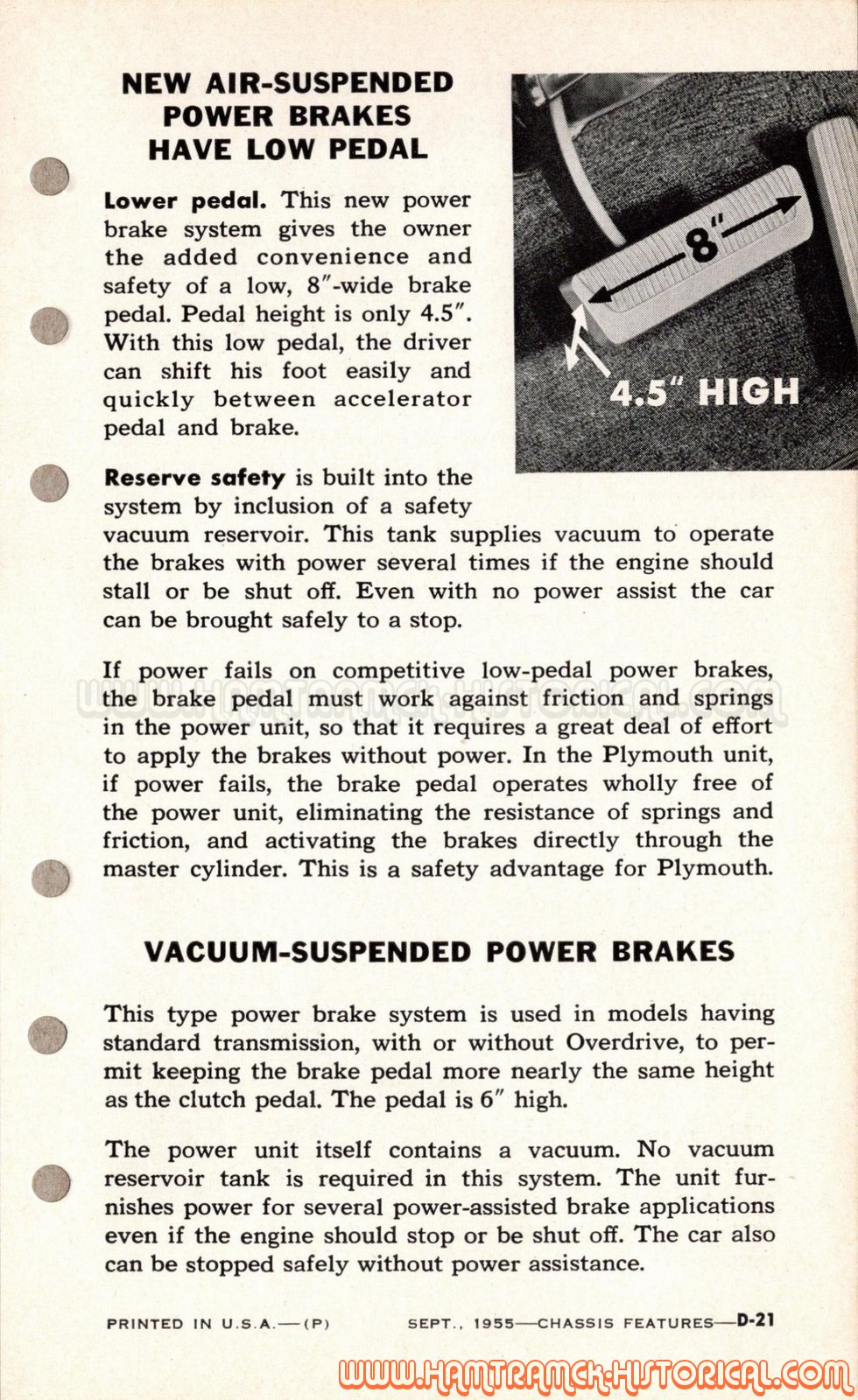

Image: 56_Plymouth_Chassis_20

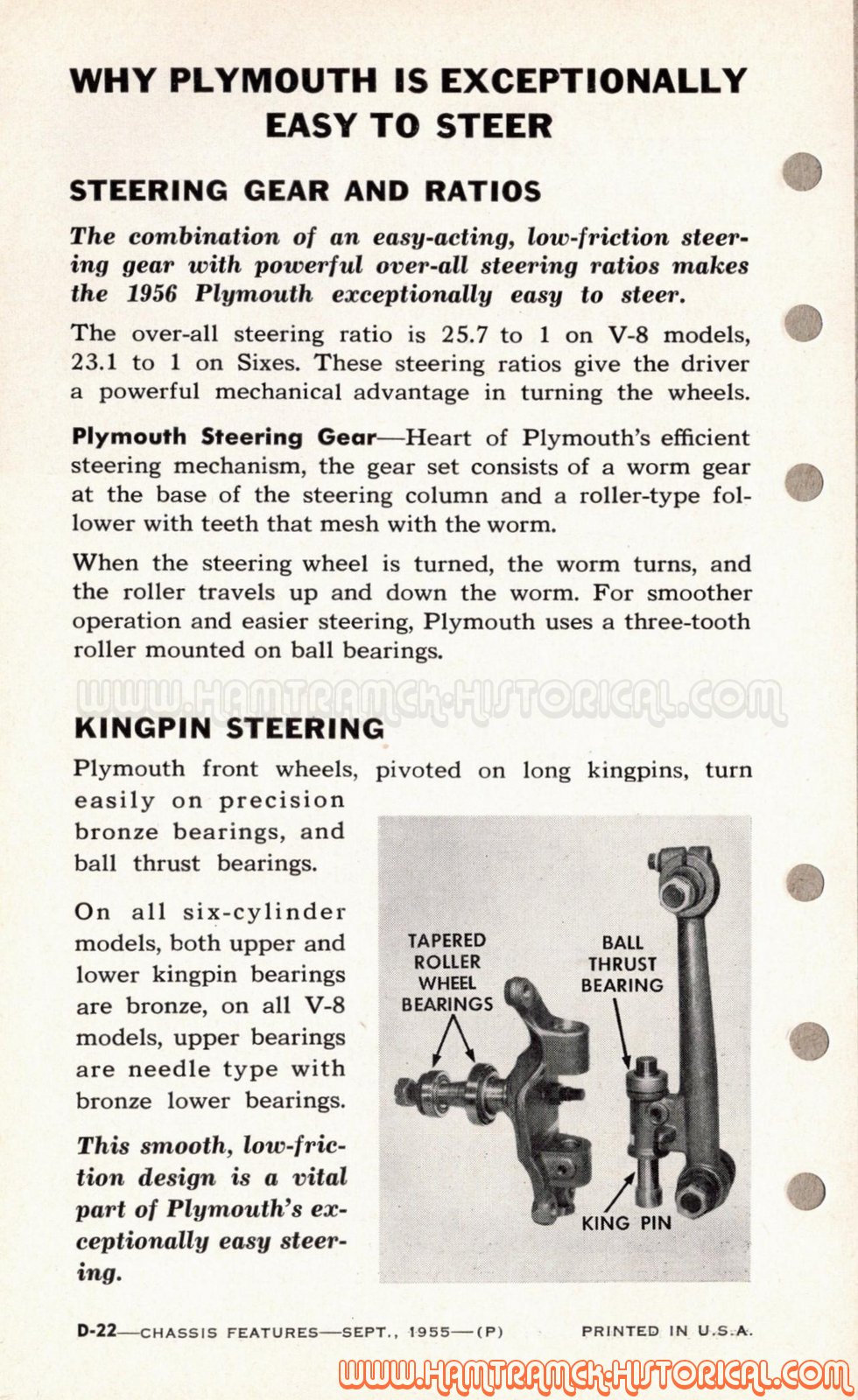

Image: 56_Plymouth_Chassis_21
Image: 56_Plymouth_Chassis_22
Image: 56_Plymouth_Chassis_23

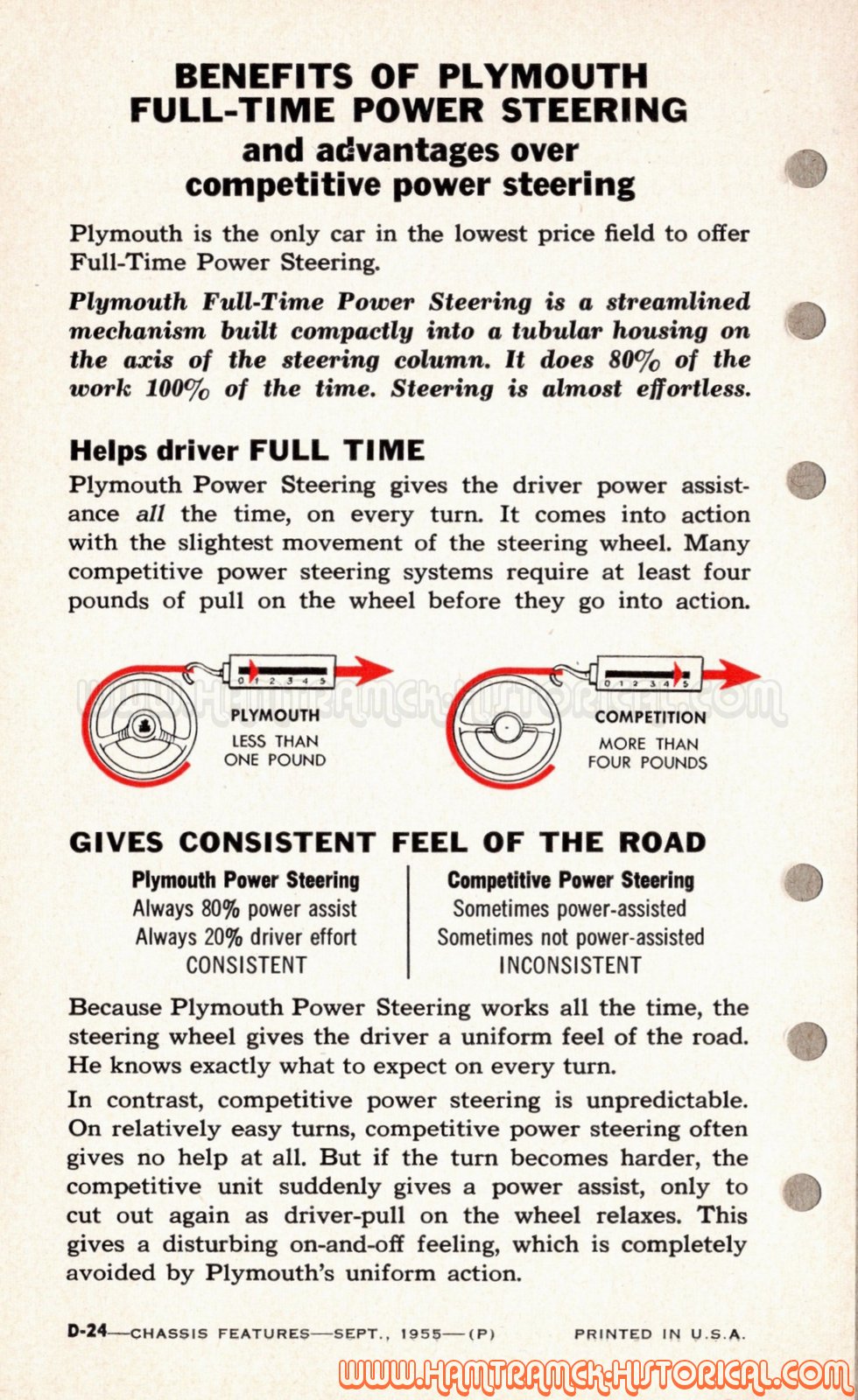

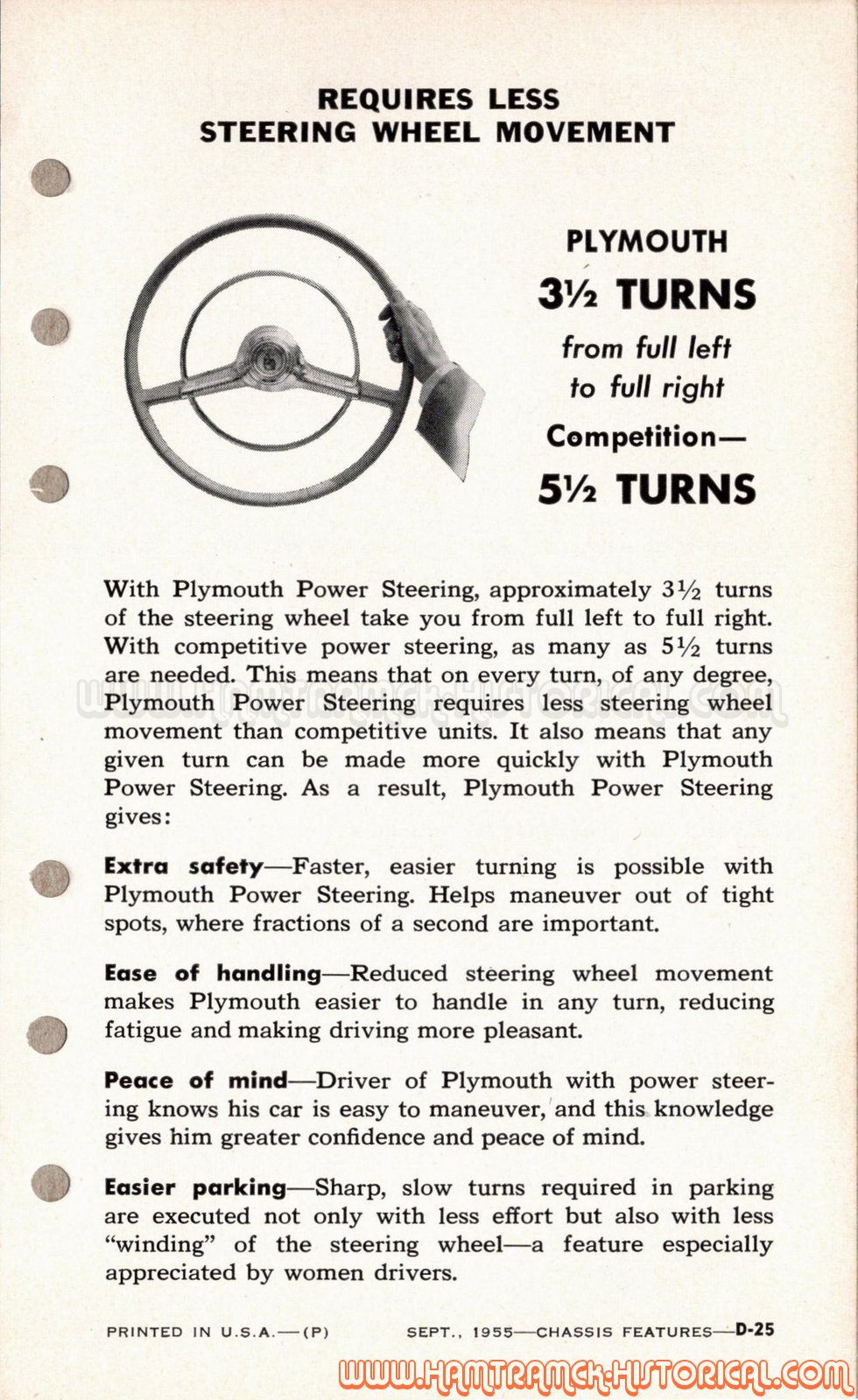

Benefits of Plymouth Full-time Power Steering
and advantages over competitive power steering
Image: 56_Plymouth_Chassis_24

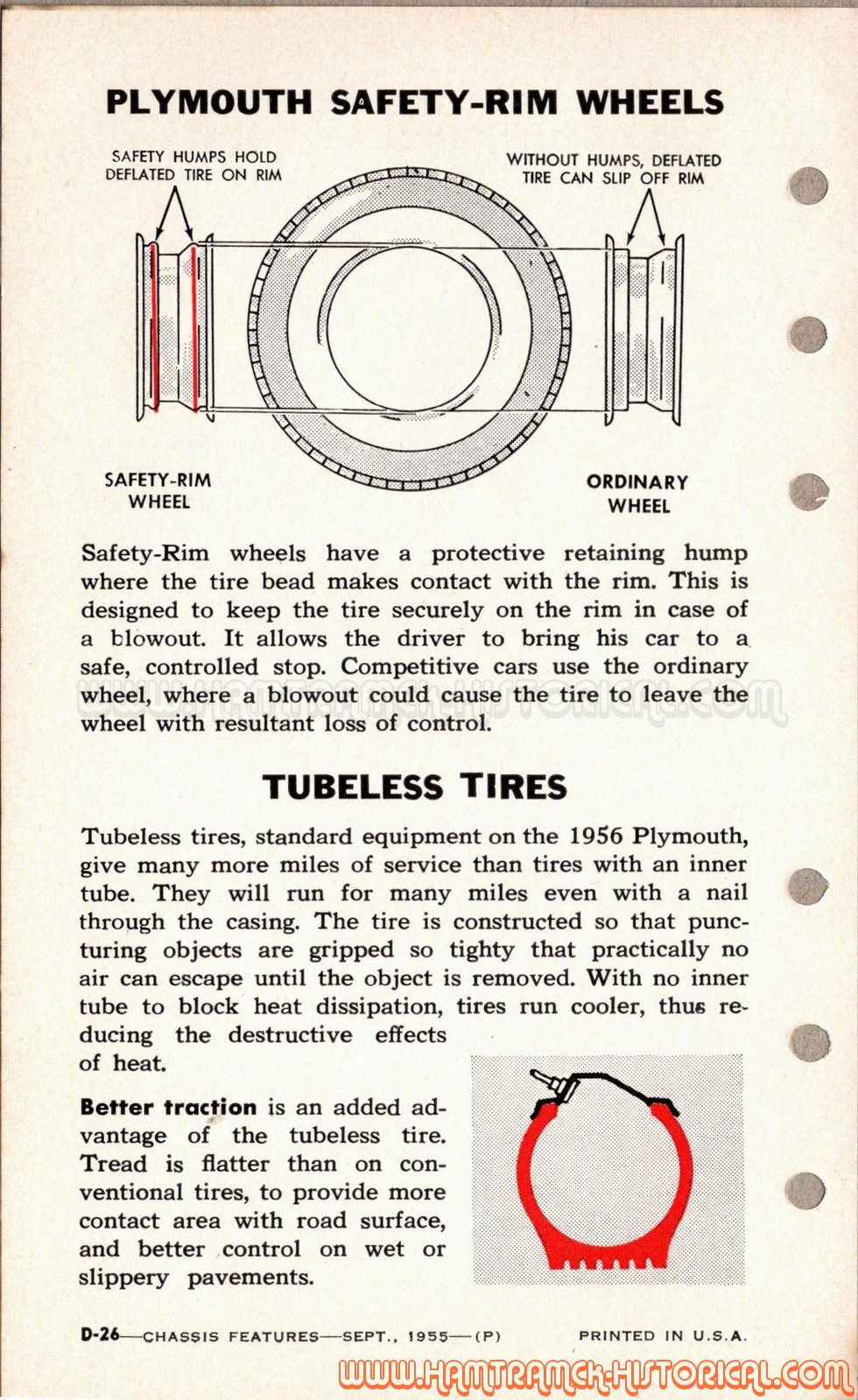

Image: 56_Plymouth_Chassis_25
