1964 Chrysler Dealership Data Book
Engines, Transmissions & Chassis

If you were able to order your car new at your local dealership back when our cars were new, your ever-friendly salesman likely would have sat down with you and paged through one of these books with you. They typically show some of the major options and option groups available for each model line along with some photos. They were not meant to be a "complete" list of options, and since they were printed just as the new model year began these books do contain some errors at times.
Like just about everything here at HH, this section will be a work in progress and other data books will be added as time goes on.

Special thanks to SuperB & Doug Hammer! SuperB let Doug borrow this book so he could scan it for us, thanks guys!

MODELS, PRICING & OPTIONS ENGINES, TRANSMISSIONS & CHASSIS BODY DATA

CLICK ON IMAGES TO ENLARGE

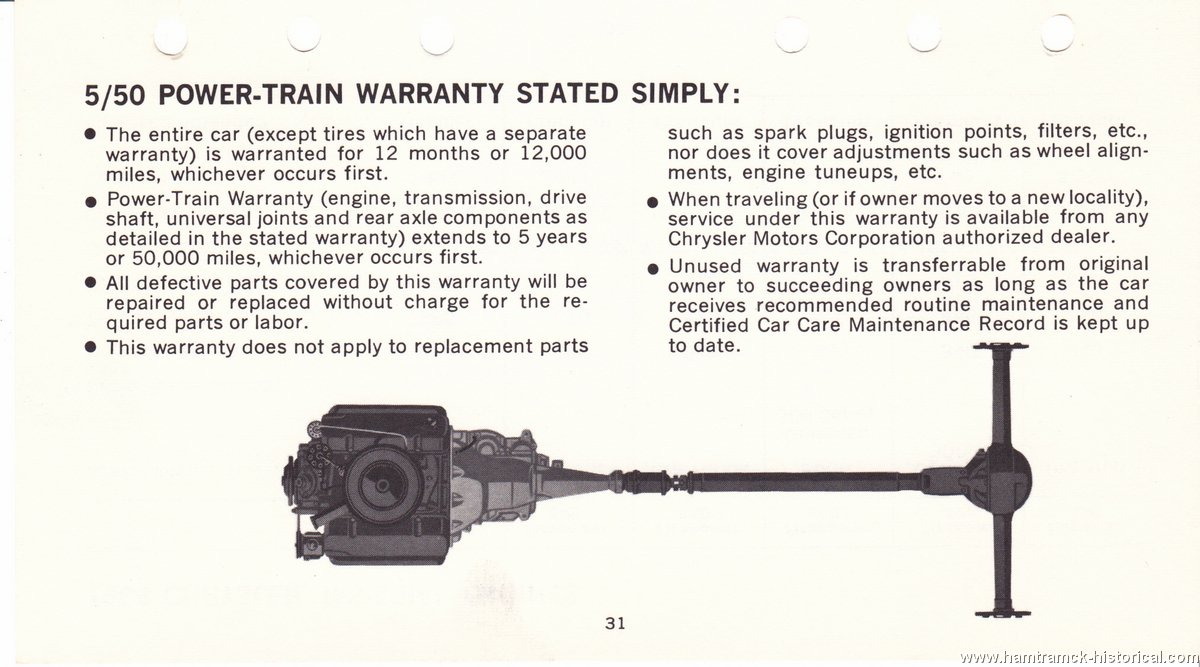

Image: 64_Chry_Impl_Engine_trans_Specs_0001
50-50 Power-Train Warranty Stated Simply

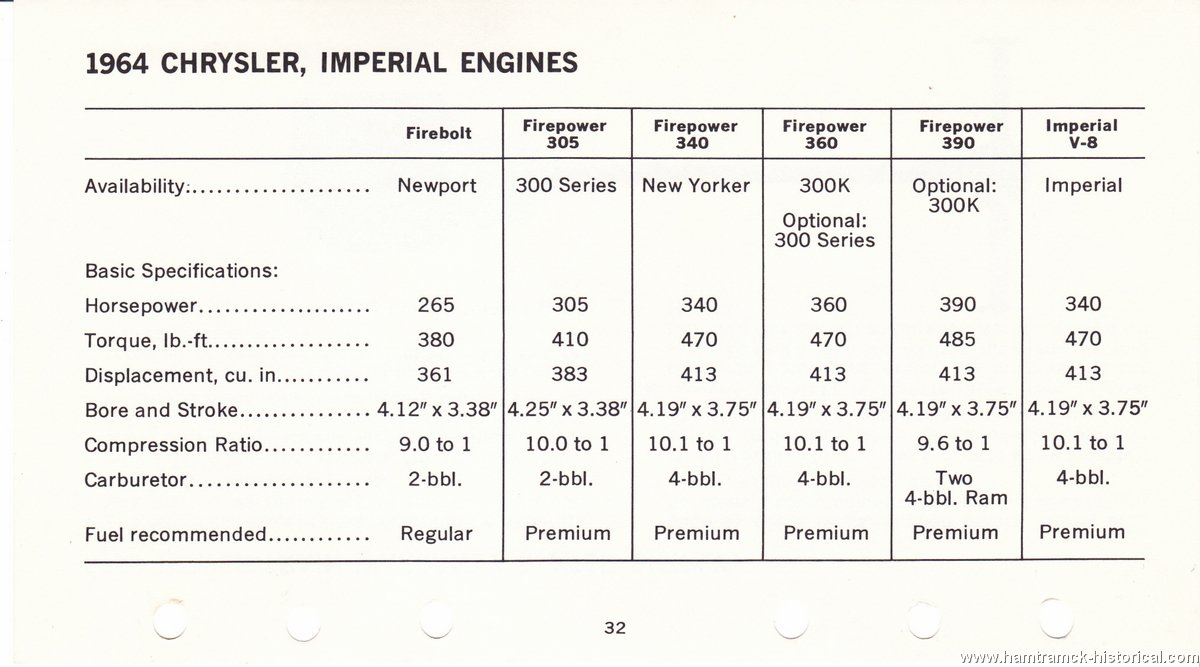

Image: 64_Chry_Impl_Engine_trans_Specs_0002
Chrysler, Imperial Engines

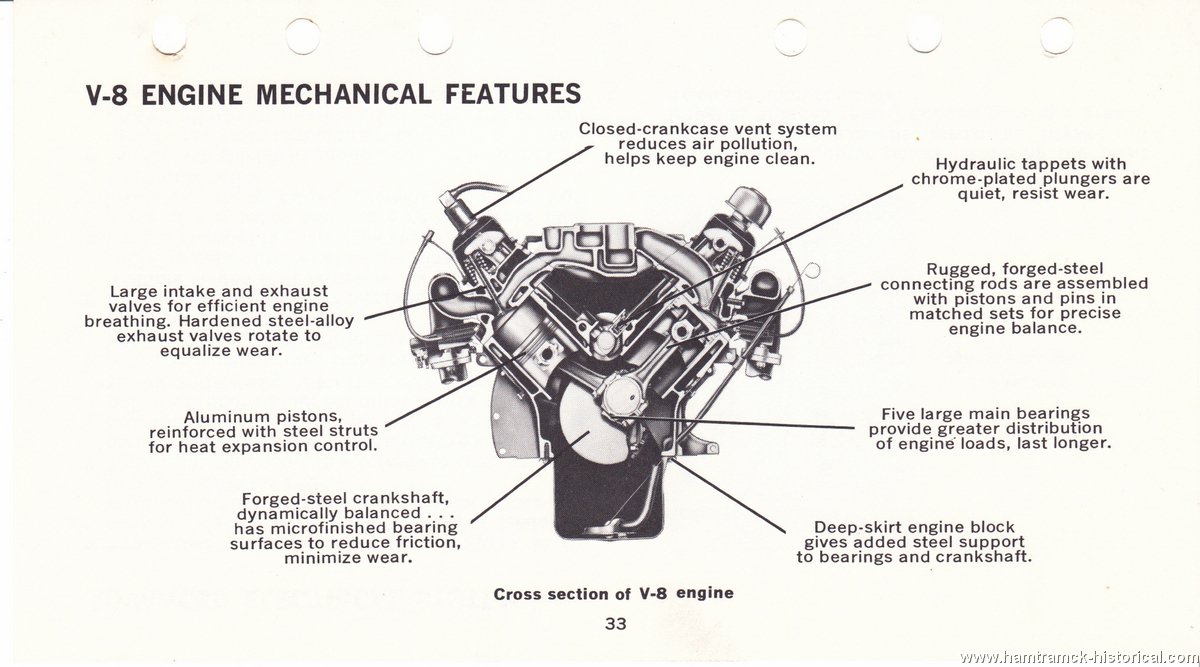

Image: 64_Chry_Impl_Engine_trans_Specs_0003
V-8 Engine Mechanical Features

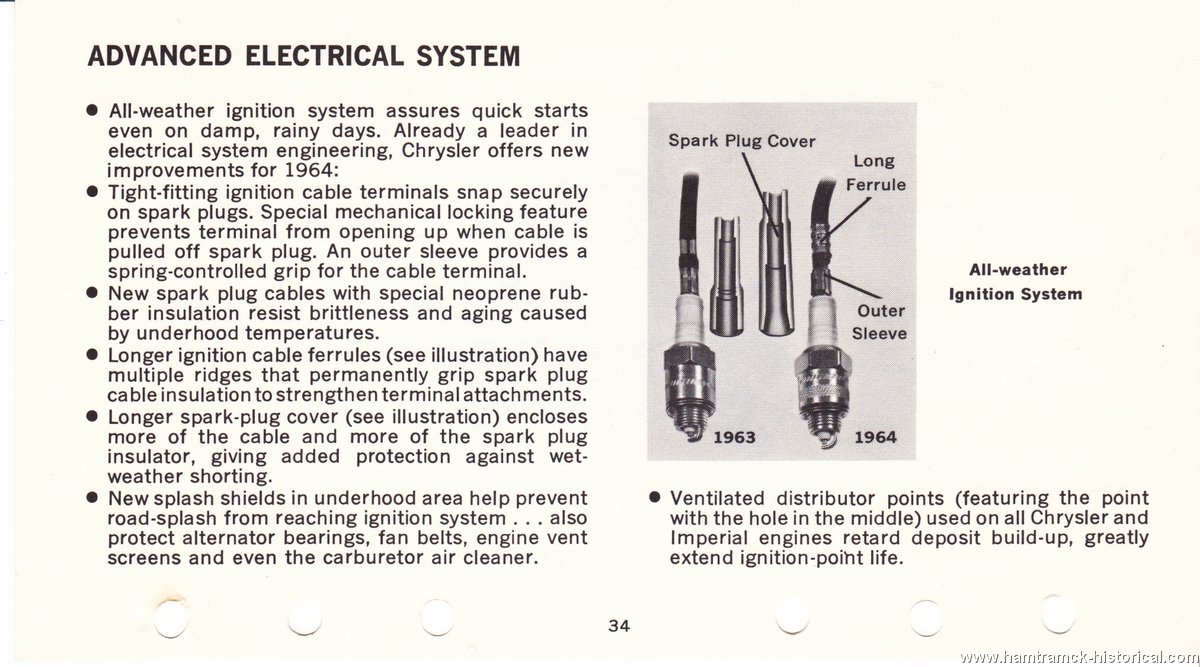

Image: 64_Chry_Impl_Engine_trans_Specs_0004
Advanced Electrical System

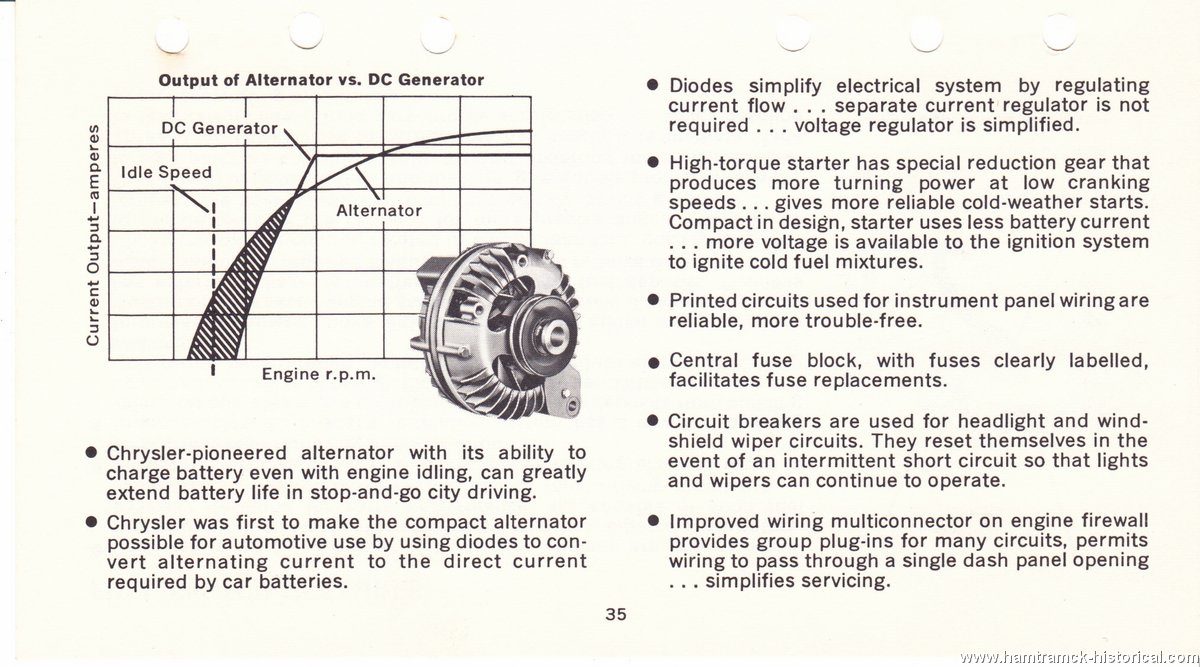

Image: 64_Chry_Impl_Engine_trans_Specs_0005
Output of Alternator vs. DC Generator

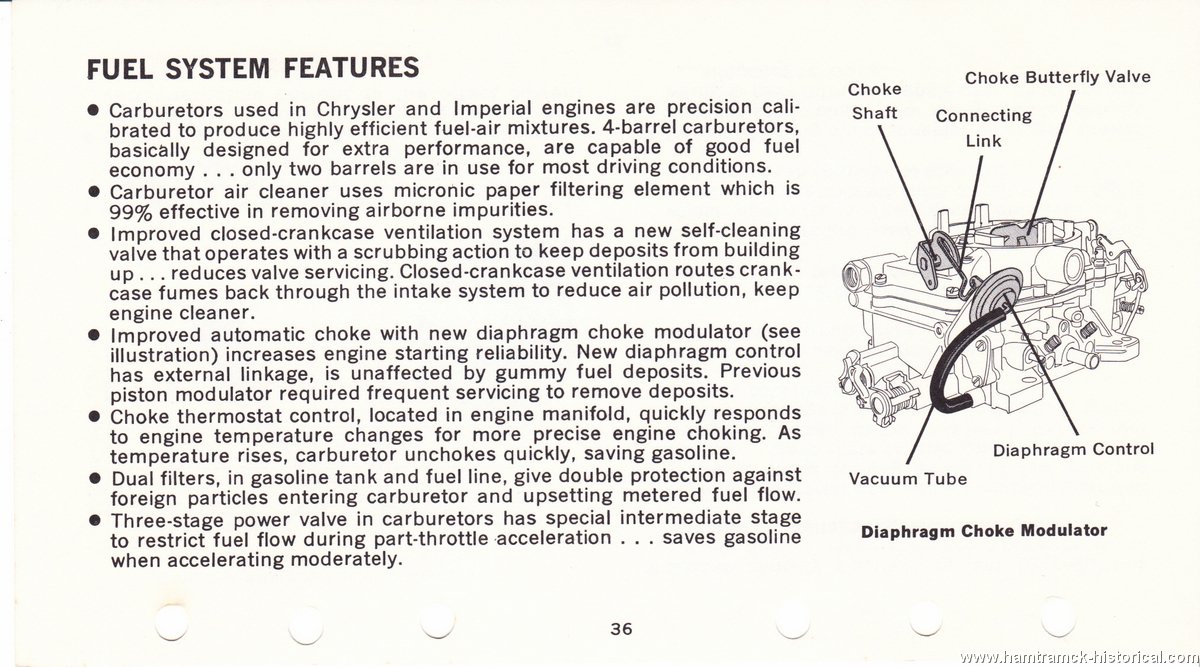

Image: 64_Chry_Impl_Engine_trans_Specs_0006
Fuel System Features

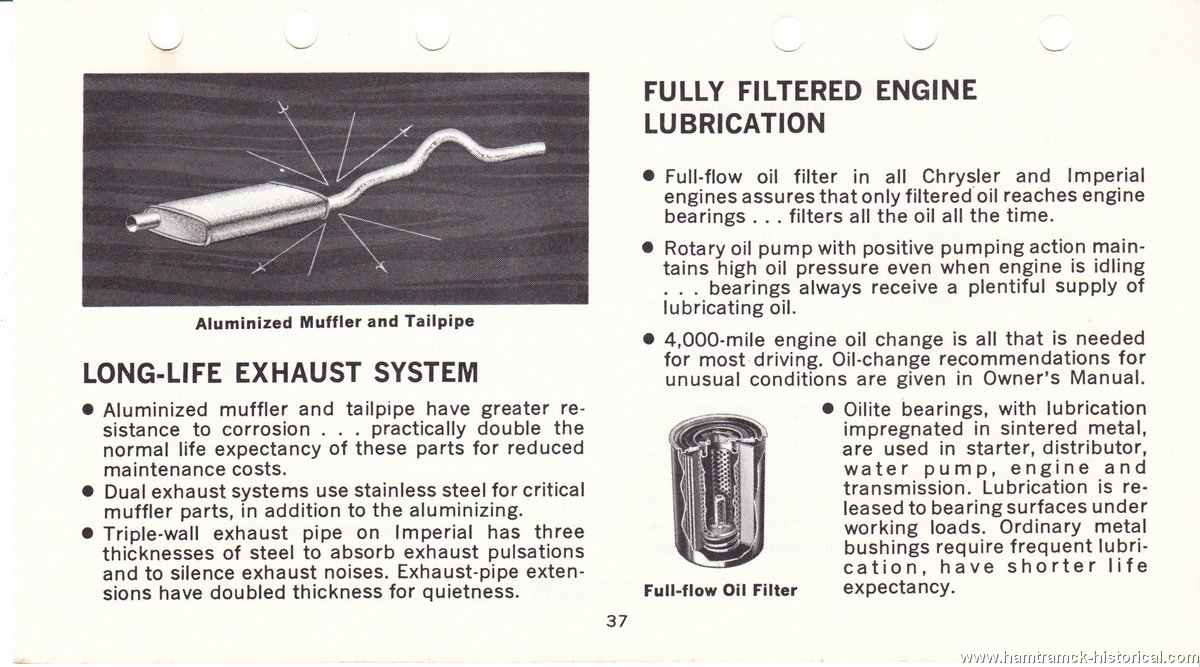

Image: 64_Chry_Impl_Engine_trans_Specs_0007
Long-Life Exhaust System and Fully Filtered Engine Lubrication

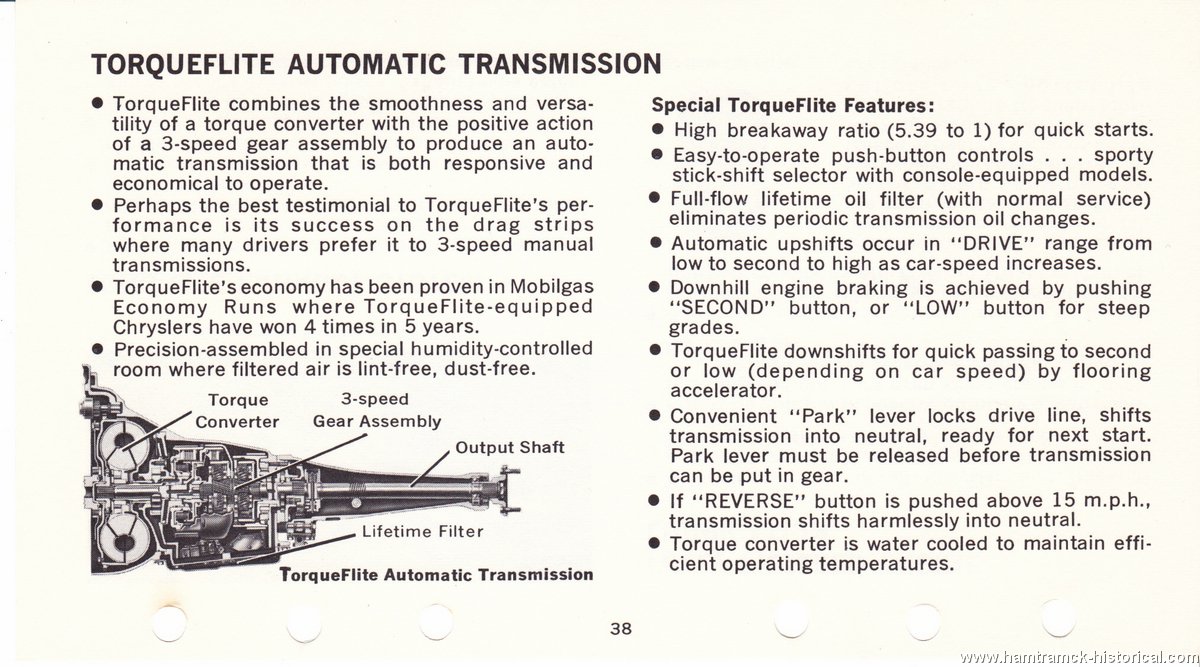

Image: 64_Chry_Impl_Engine_trans_Specs_0008
Torqueflite Automatic Transmission

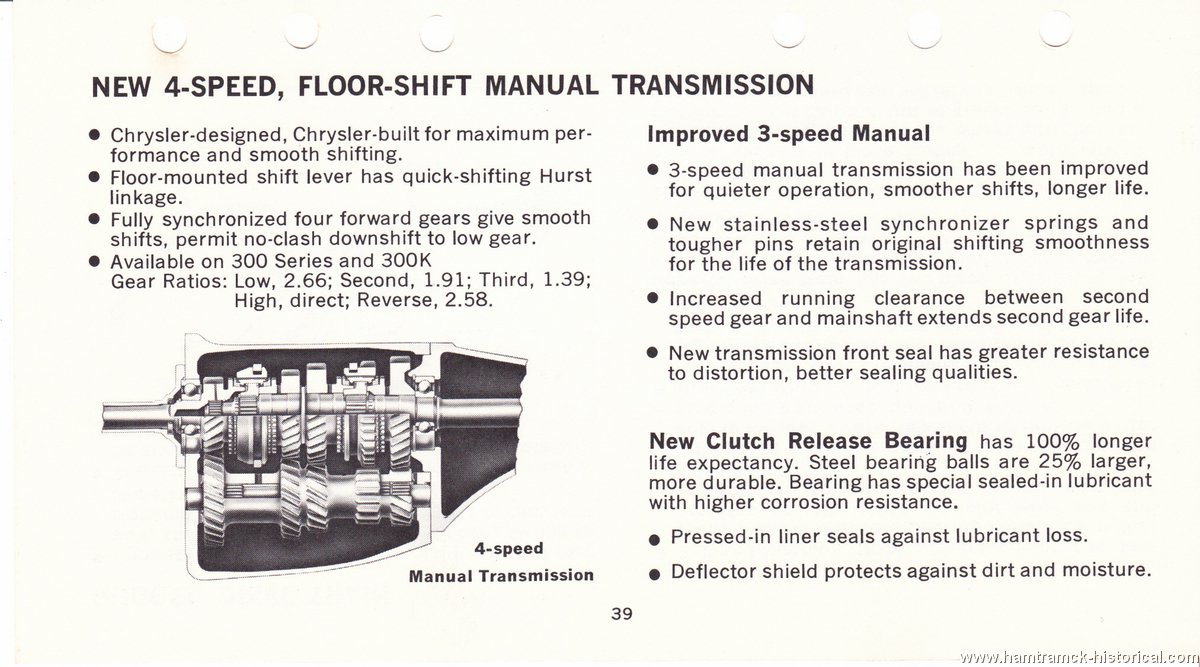

Image: 64_Chry_Impl_Engine_trans_Specs_0009
New 4-speed, Floor-Shift Manual Transmission

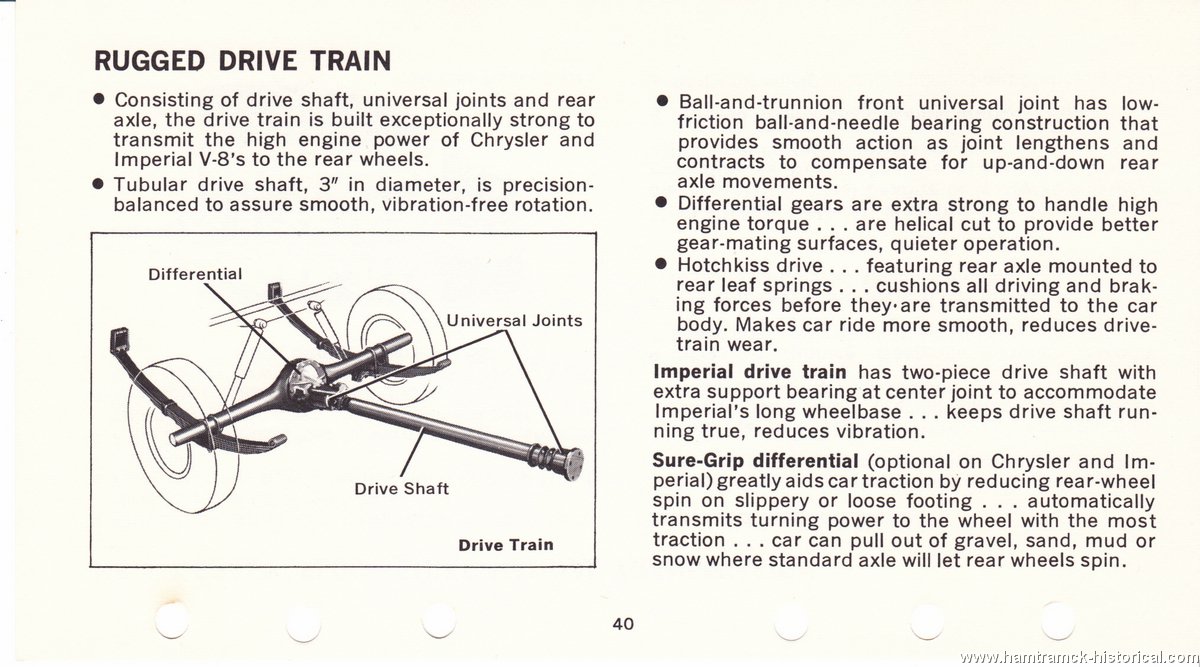

Image: 64_Chry_Impl_Engine_trans_Specs_0010
Rugged Drive Train

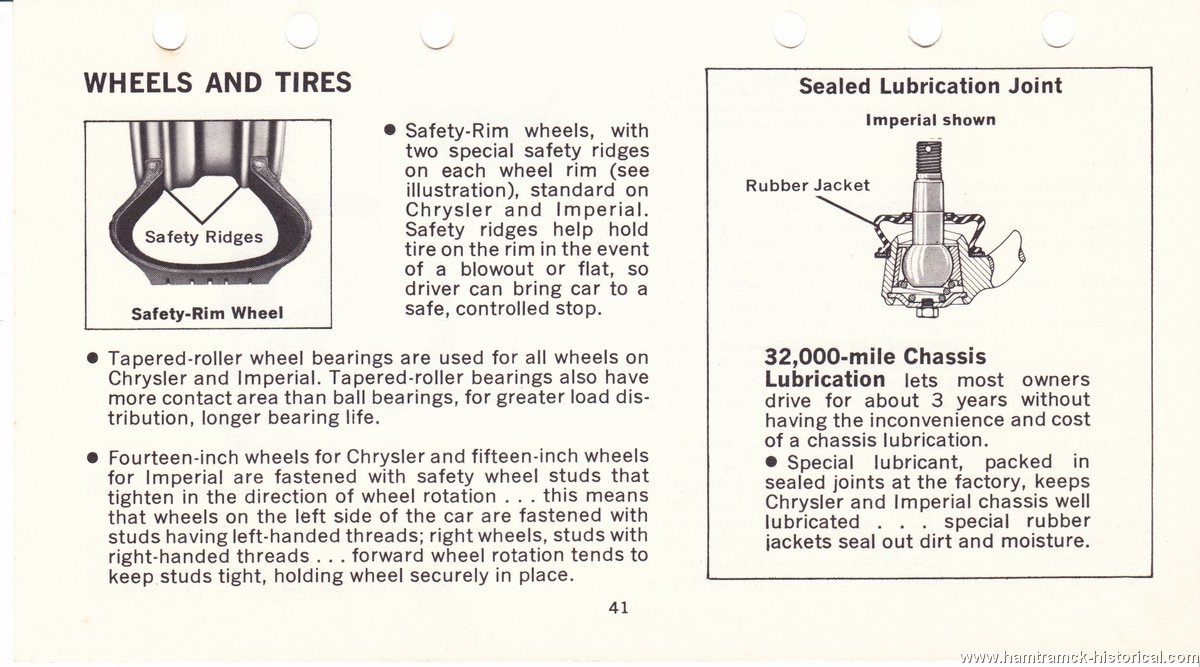

Image: 64_Chry_Impl_Engine_trans_Specs_0011
Wheels and Tires

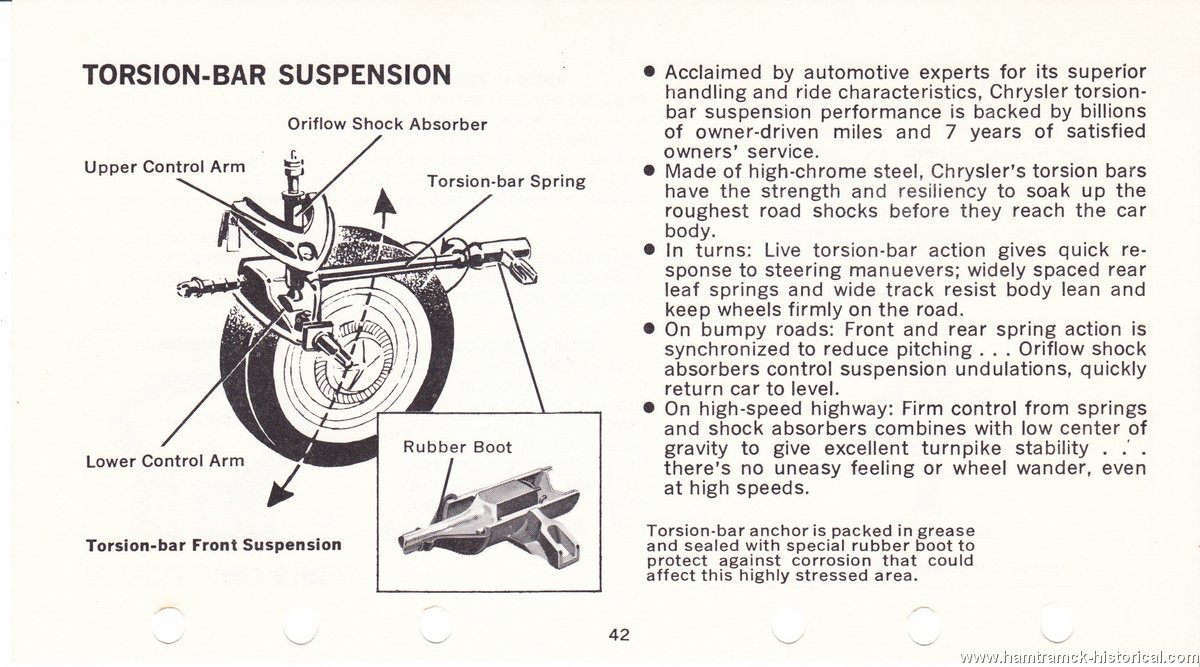

Image: 64_Chry_Impl_Engine_trans_Specs_0012
Torsion-Bar Suspension

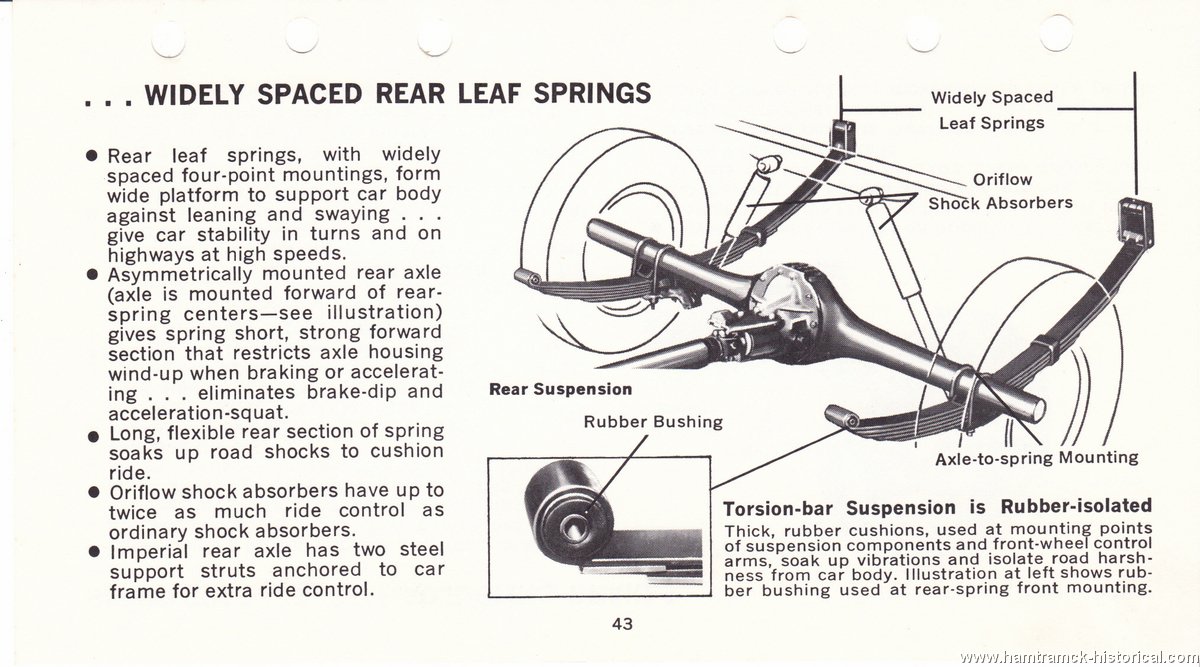

Image: 64_Chry_Impl_Engine_trans_Specs_0013
... Widely Spaced Rear Leaf Springs

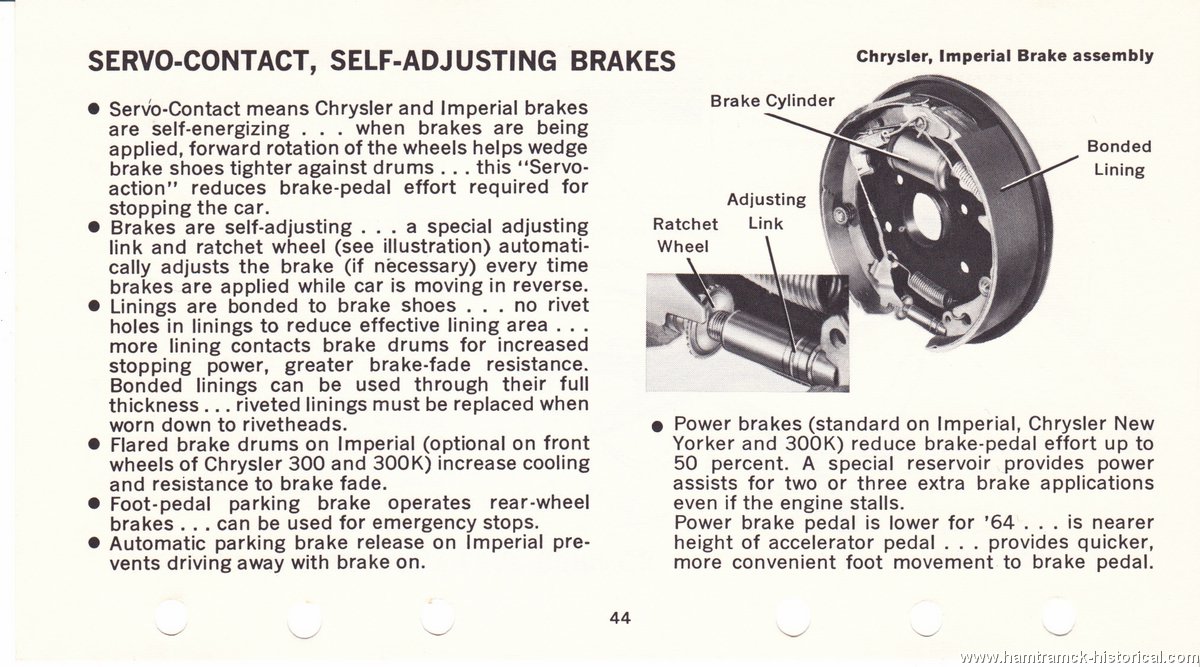

Image: 64_Chry_Impl_Engine_trans_Specs_0014
Servo-Contact, Self-Adjusting Brakes

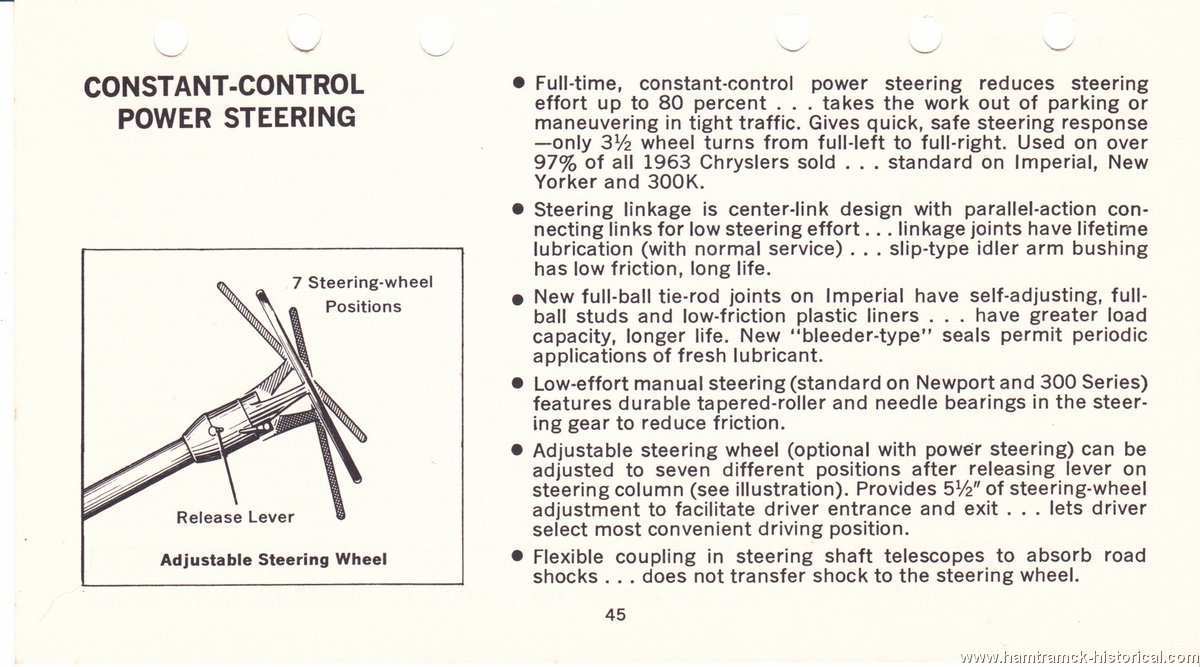

Image: 64_Chry_Impl_Engine_trans_Specs_0015
Constant-Control Power Steering

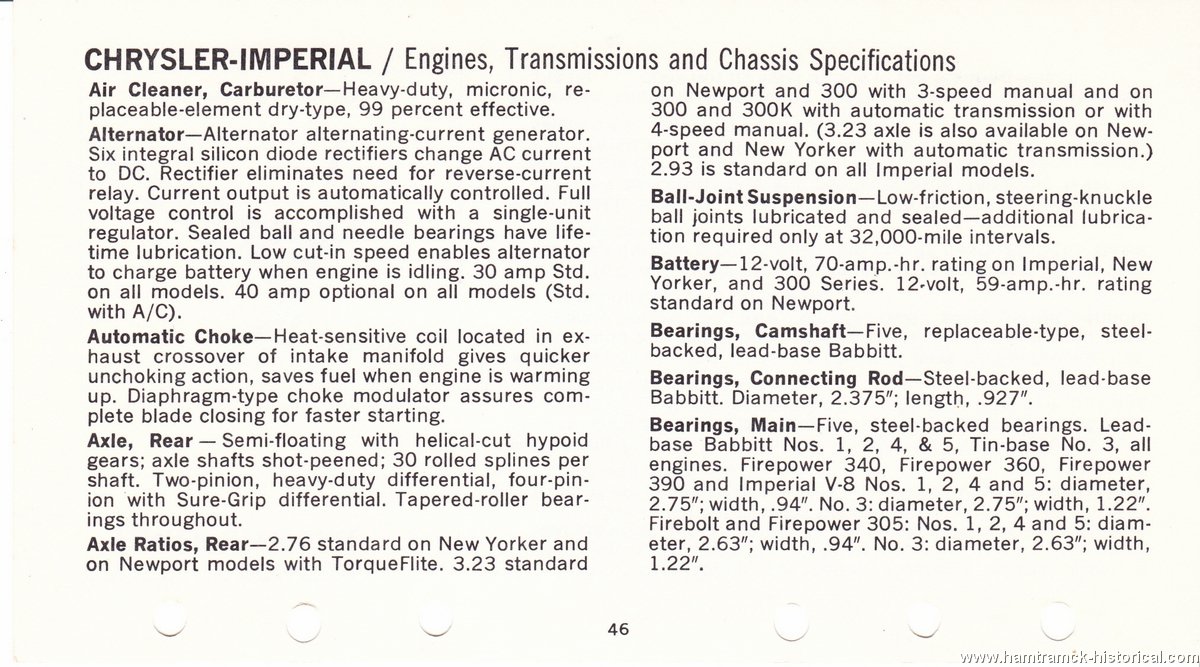

Image: 64_Chry_Impl_Engine_trans_Specs_0016
Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (A-B)

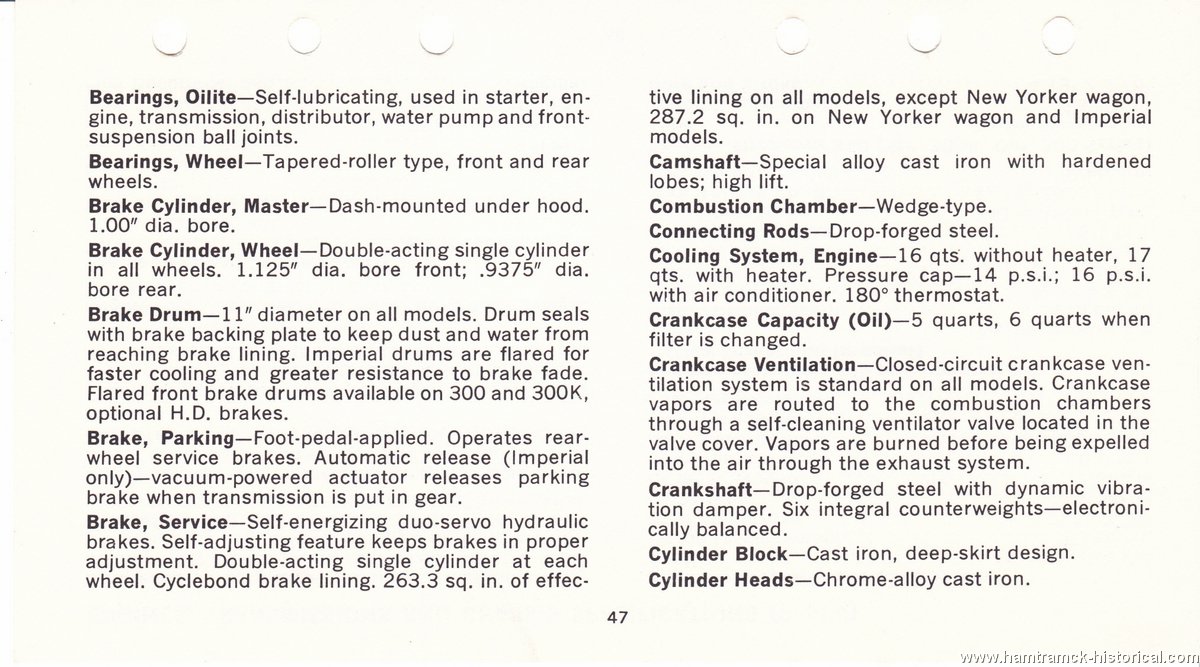

Image: 64_Chry_Impl_Engine_trans_Specs_0017
Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (B-C)

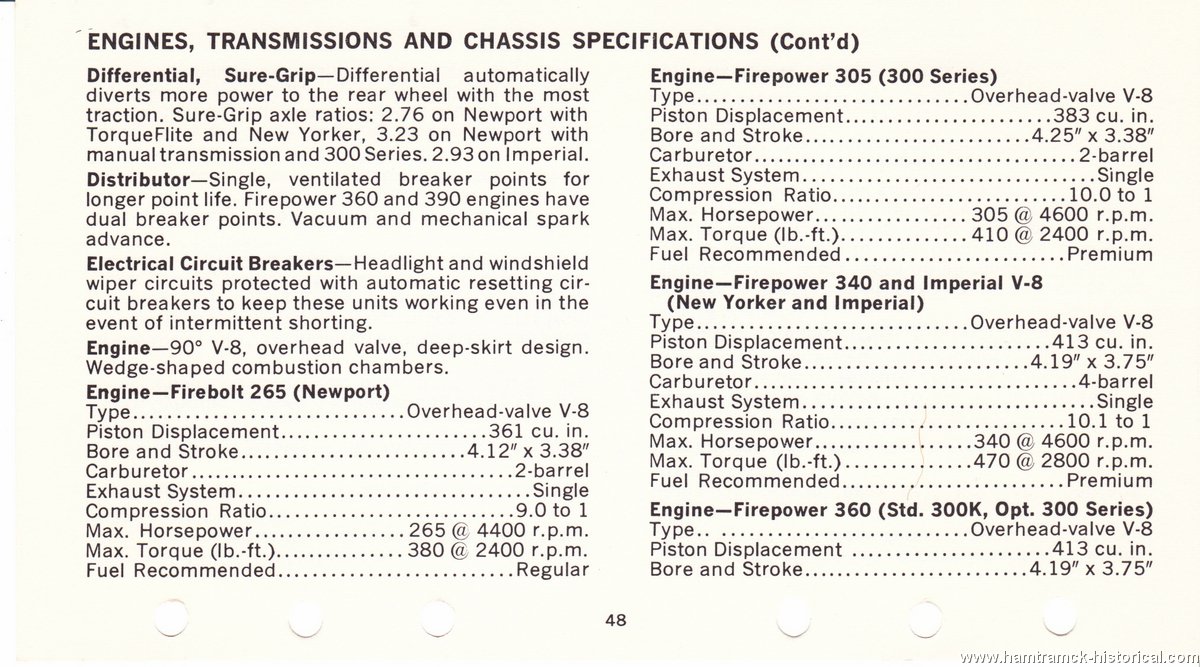

Image: 64_Chry_Impl_Engine_trans_Specs_0018
Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (D-E)

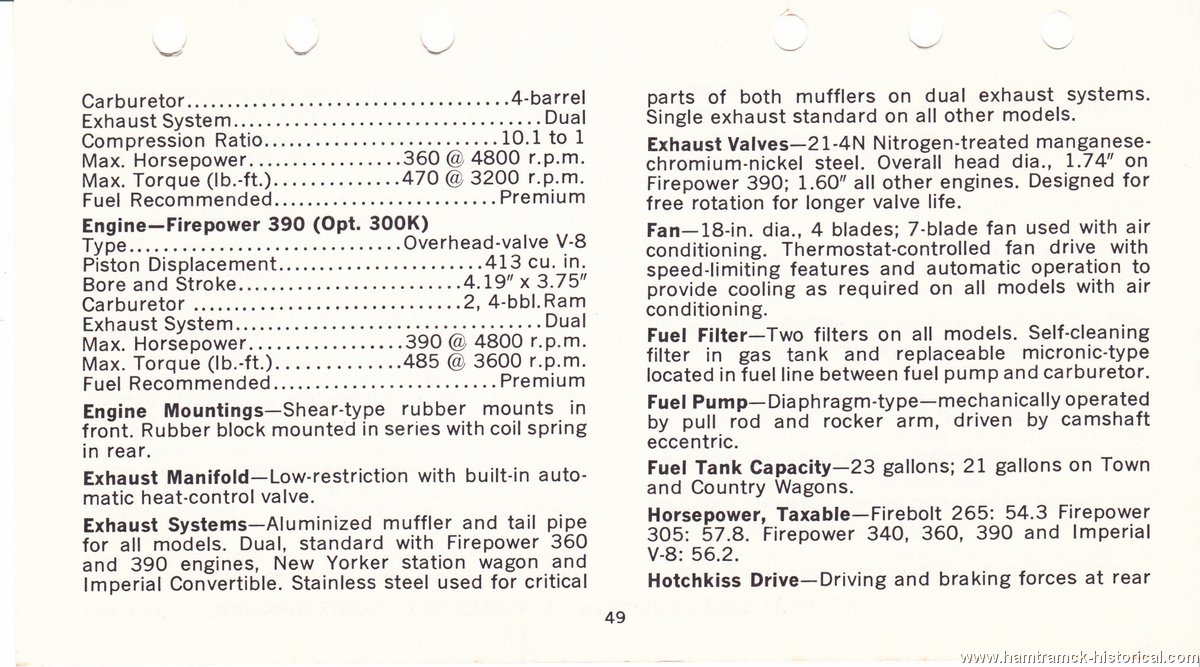

Image: 64_Chry_Impl_Engine_trans_Specs_0019
Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (E-H)

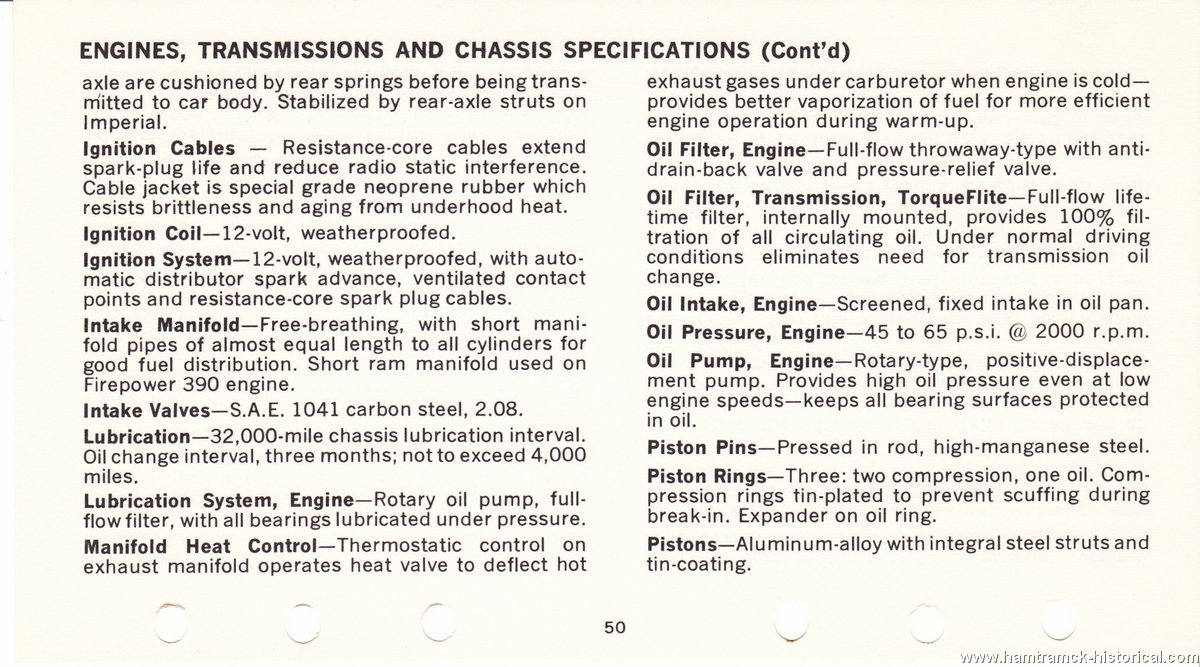

Image: 64_Chry_Impl_Engine_trans_Specs_0020
Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (I-P)

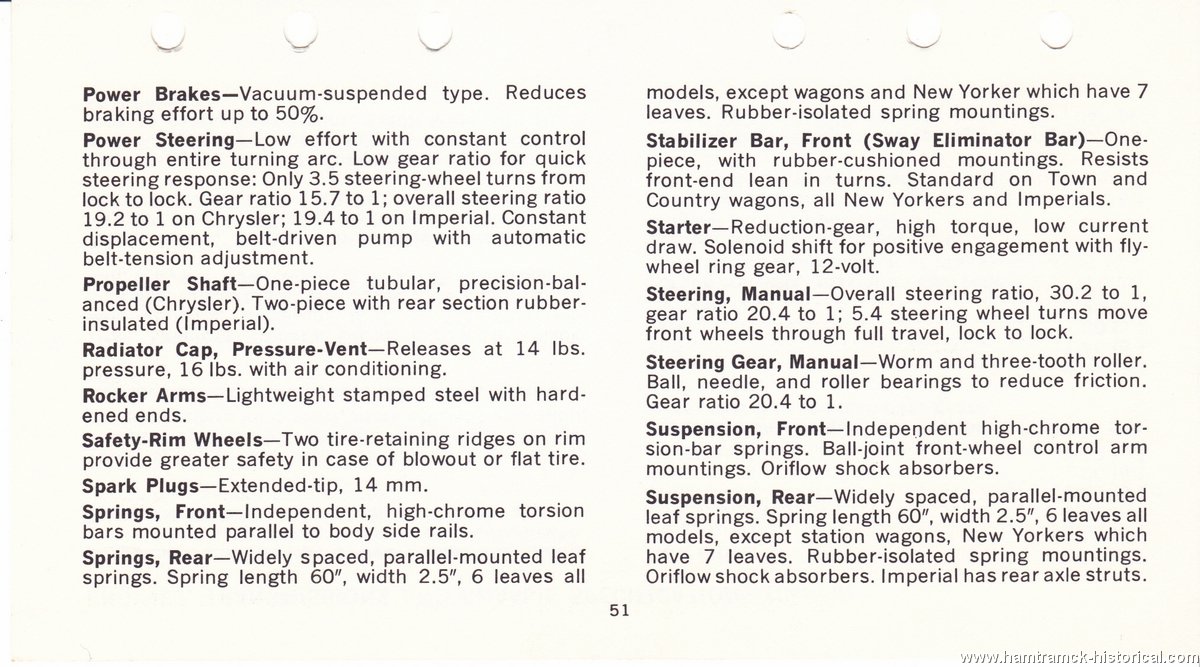

Image: 64_Chry_Impl_Engine_trans_Specs_0021
Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (P-S)
Image: 64_Chry_Impl_Engine_trans_Specs_0022
Chrysler-Imperial/ Engines, Transmissions and Chassis Specifications (S-V)
