1970 Plymouth Dealership Data Book
Specifications

If you were able to order your car new at your local dealership back when our cars were new, your ever-friendly salesman likely would have sat down with you and paged through one of these books with you. They typically show some of the major options and option groups available for each model line along with some photos. They were not meant to be a "complete" list of options, and since they were printed just as the new model year began these books do contain some errors at times.
Like just about everything here at HH, this section will be a work in progress and other data books will be added as time goes on.

Special thanks to Doug Hammer for initiating this project for us.

BARRACUDA BELVEDERE FURY
STATION WAGONS VALIANT/DUSTER SPECIFICATIONS

CLICK ON IMAGES TO ENLARGE

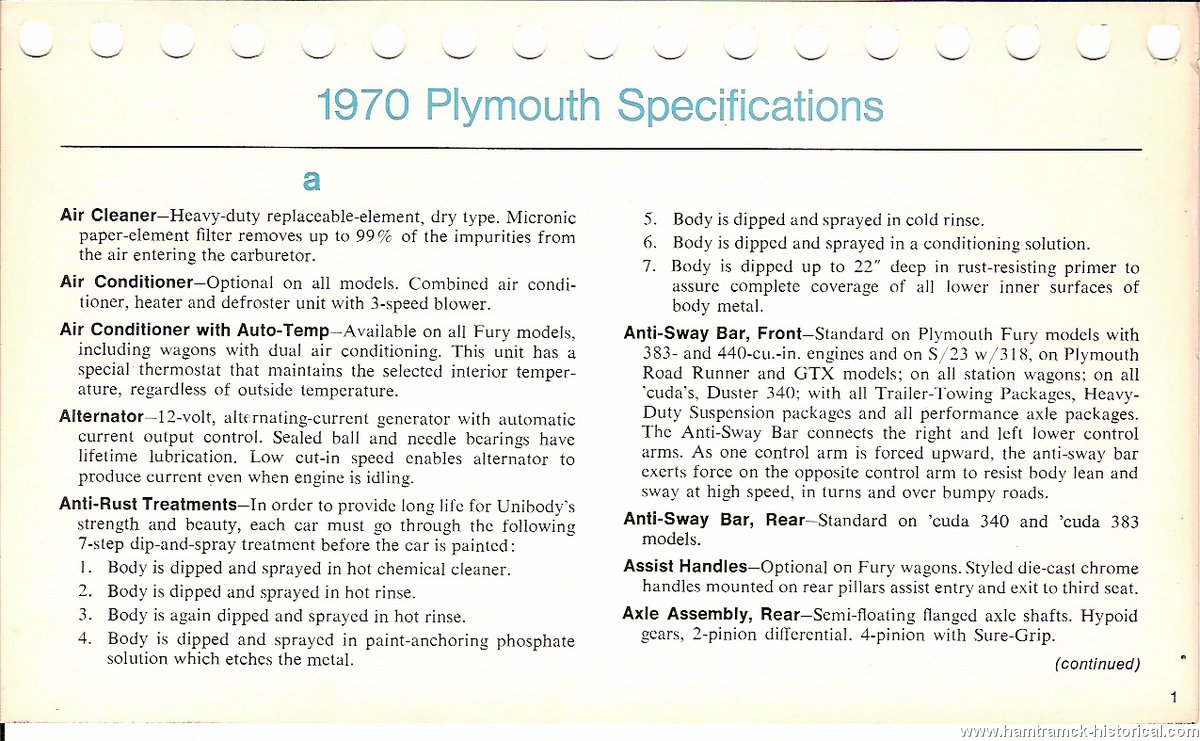

Image: 70_Plymouth_Specs0001
Air Cleaner - Axle

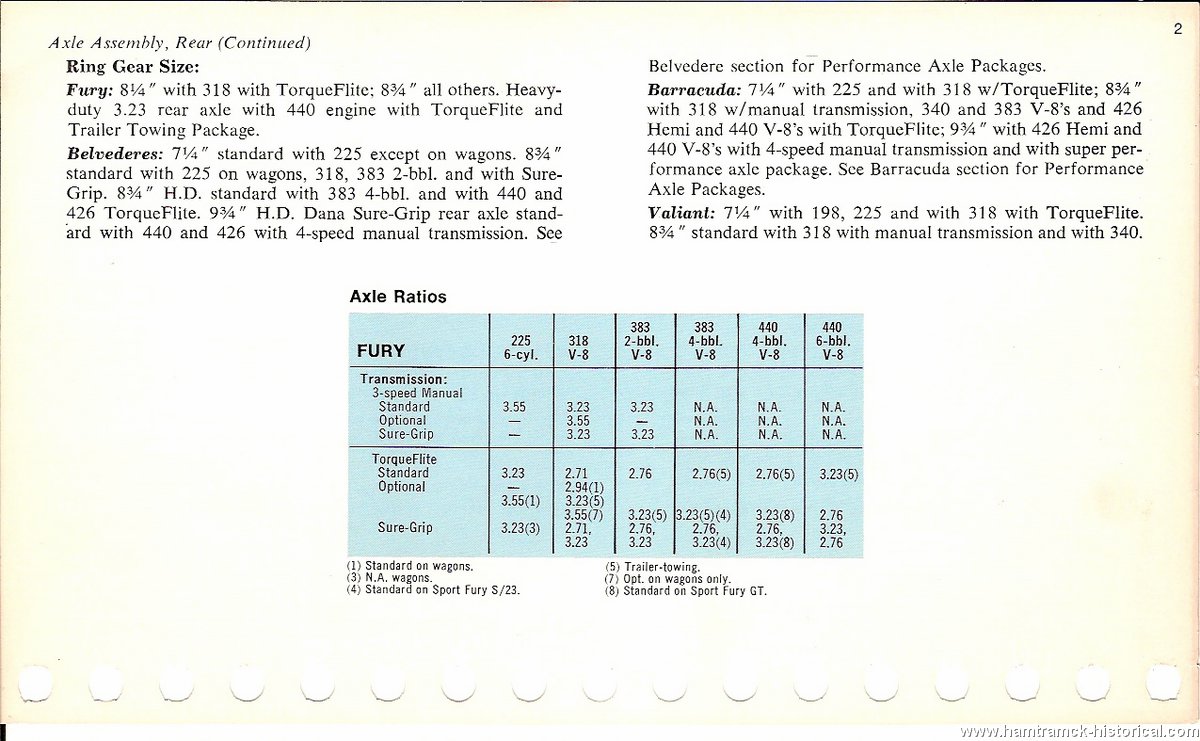

Image: 70_Plymouth_Specs0002
Axle Ratios - Fury

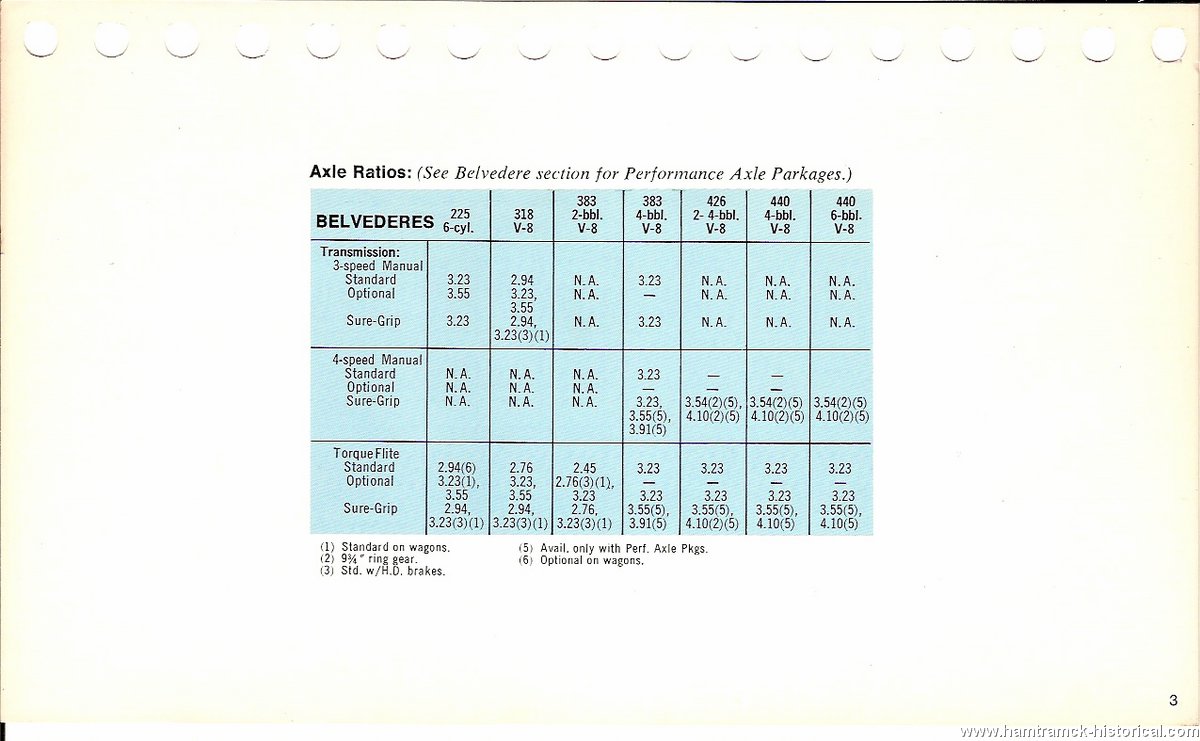

Image: 70_Plymouth_Specs0003
Axle Ratios - Belvedere

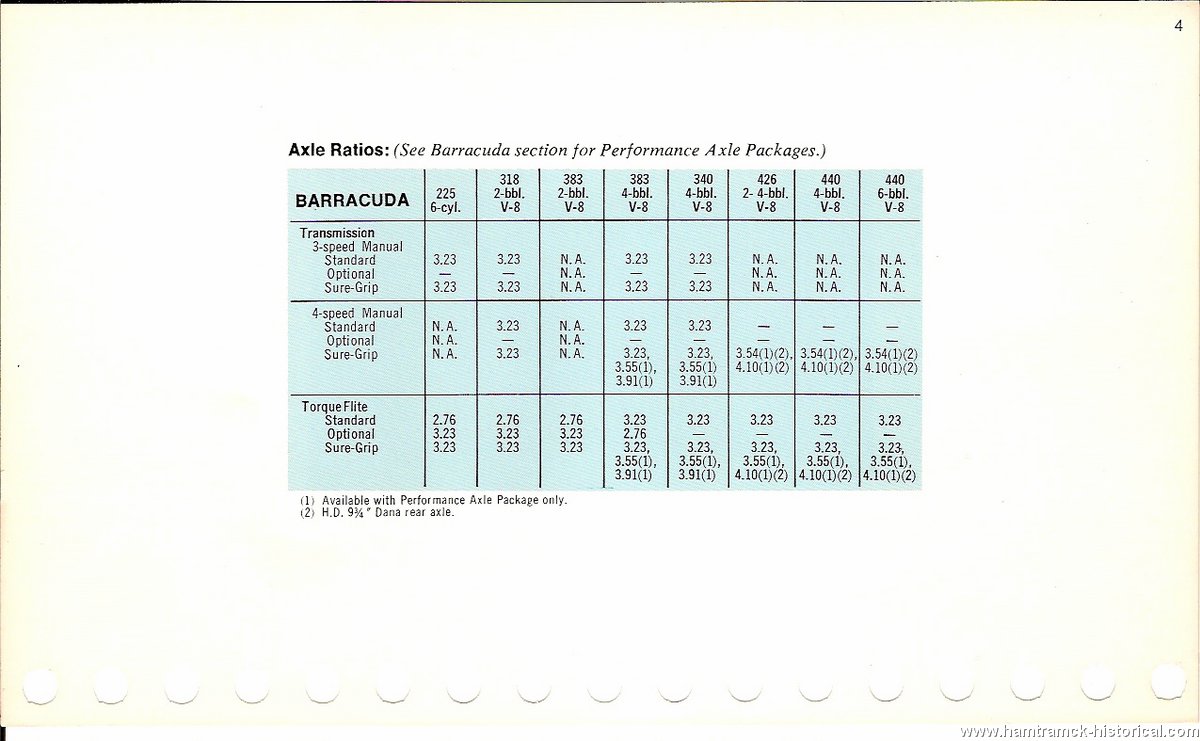

Image: 70_Plymouth_Specs0004
Axle Ratios - Barracuda

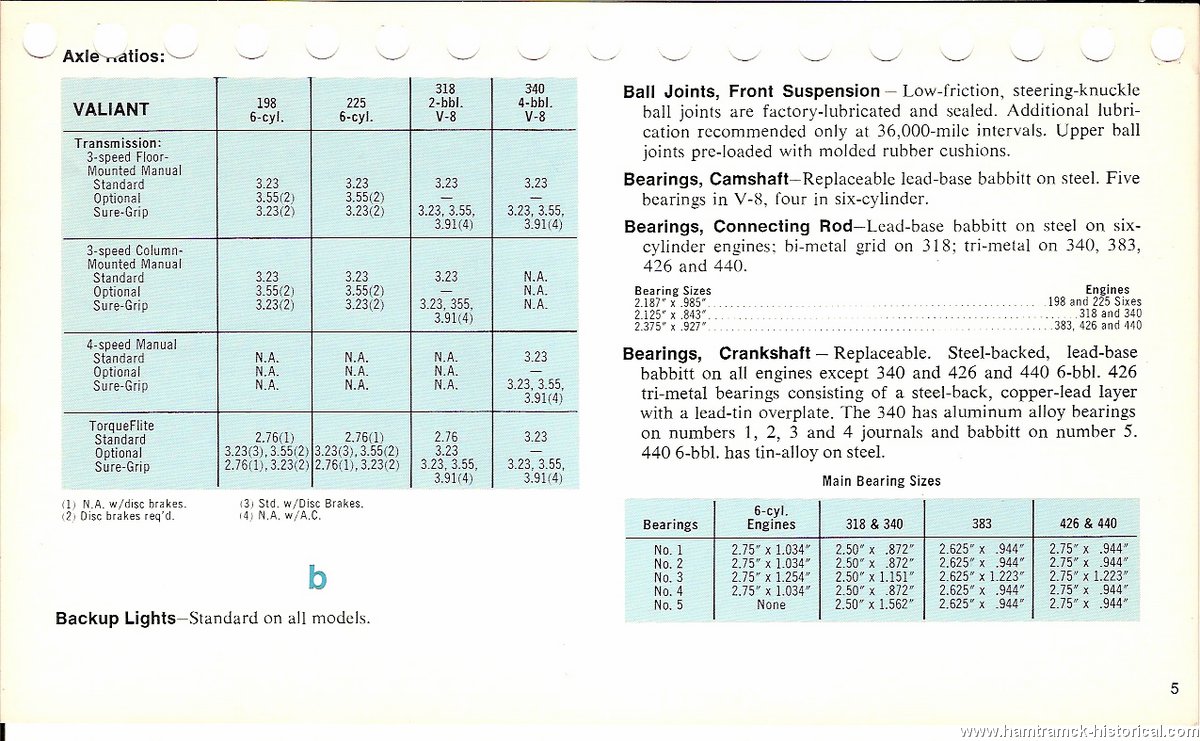

Image: 70_Plymouth_Specs0005
Axle Ratios - Valiant

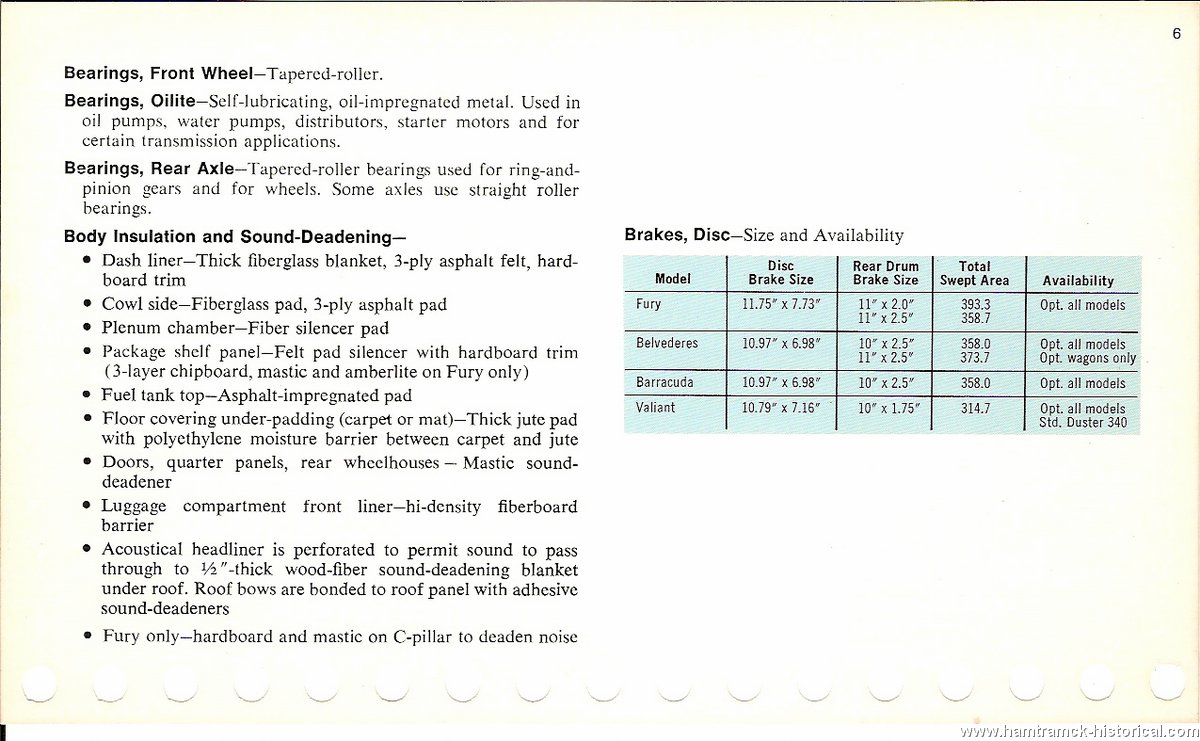

Image: 70_Plymouth_Specs0006
Bearings - Brakes Disk
Image: 70_Plymouth_Specs0007
Brakes Drum - Camshaft

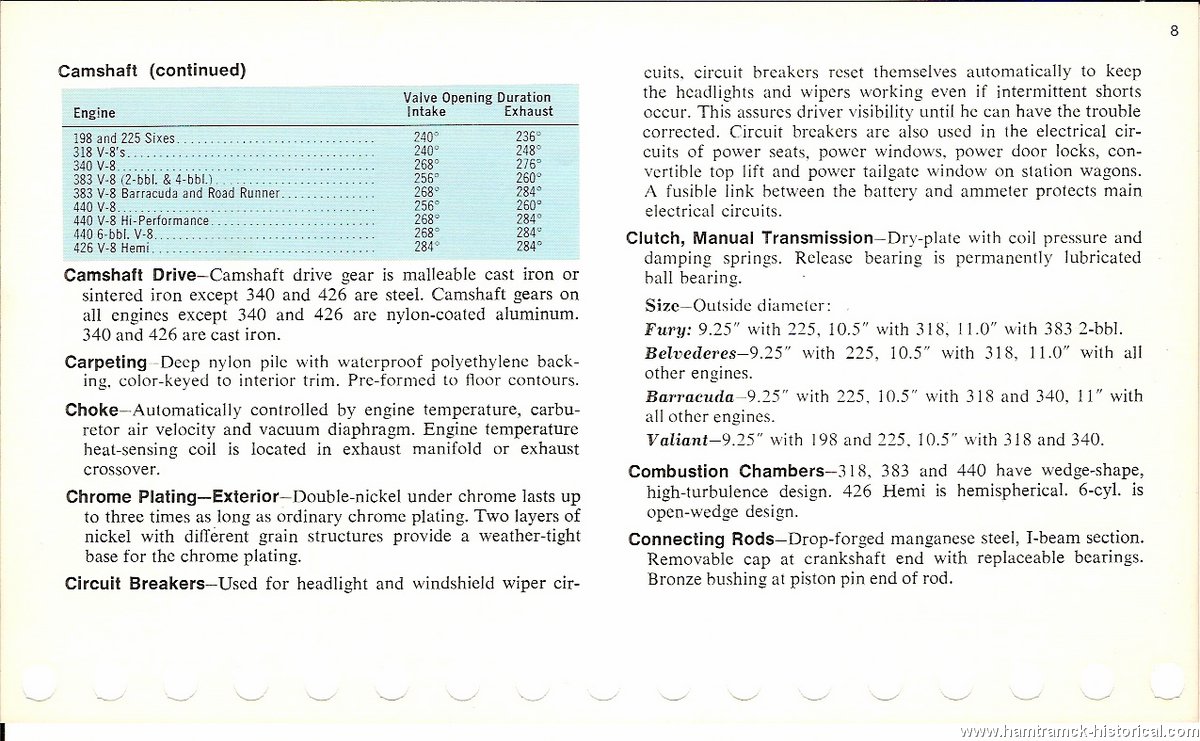

Image: 70_Plymouth_Specs0008
Camshaft - Connecting Rods

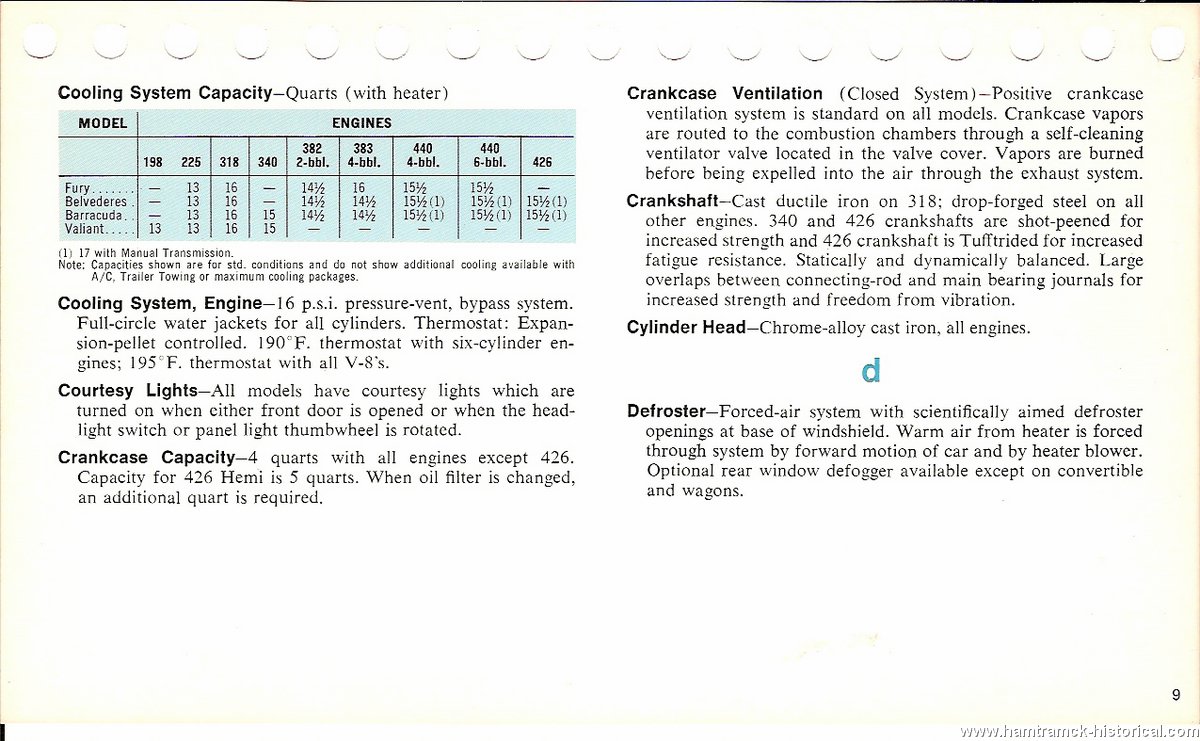

Image: 70_Plymouth_Specs0009
Cooling capacity - Defroster

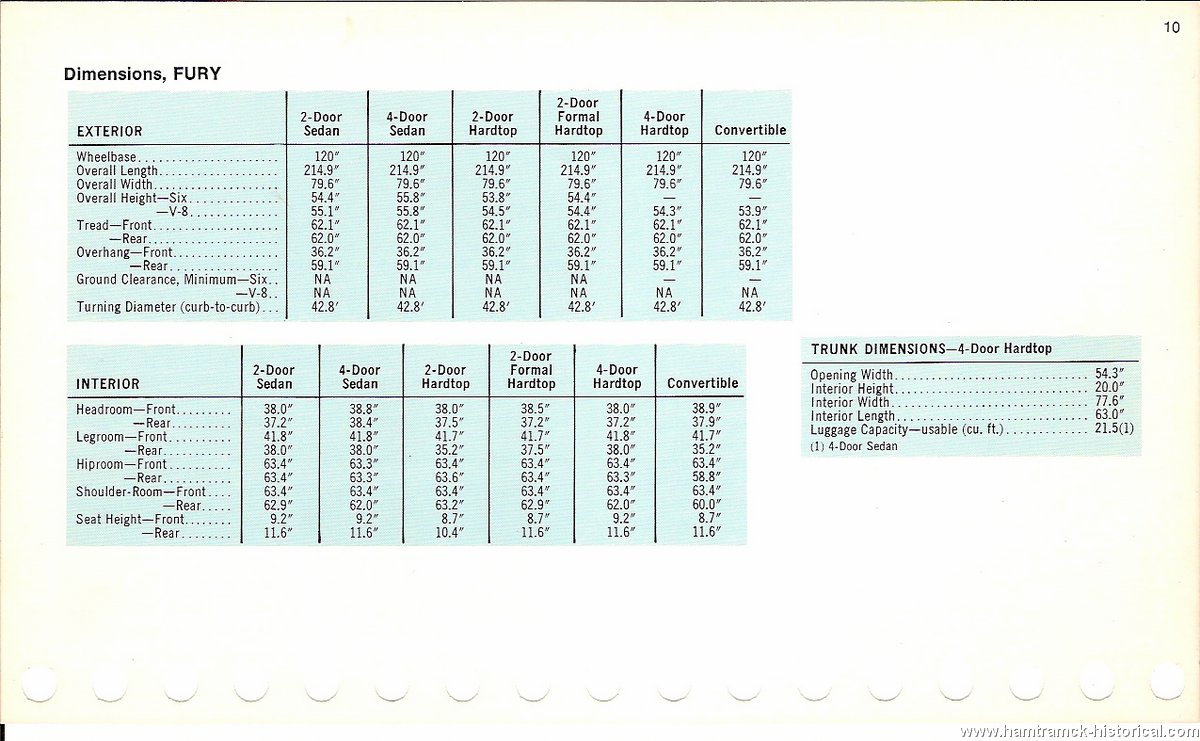

Image: 70_Plymouth_Specs0010
Dimensions Fury

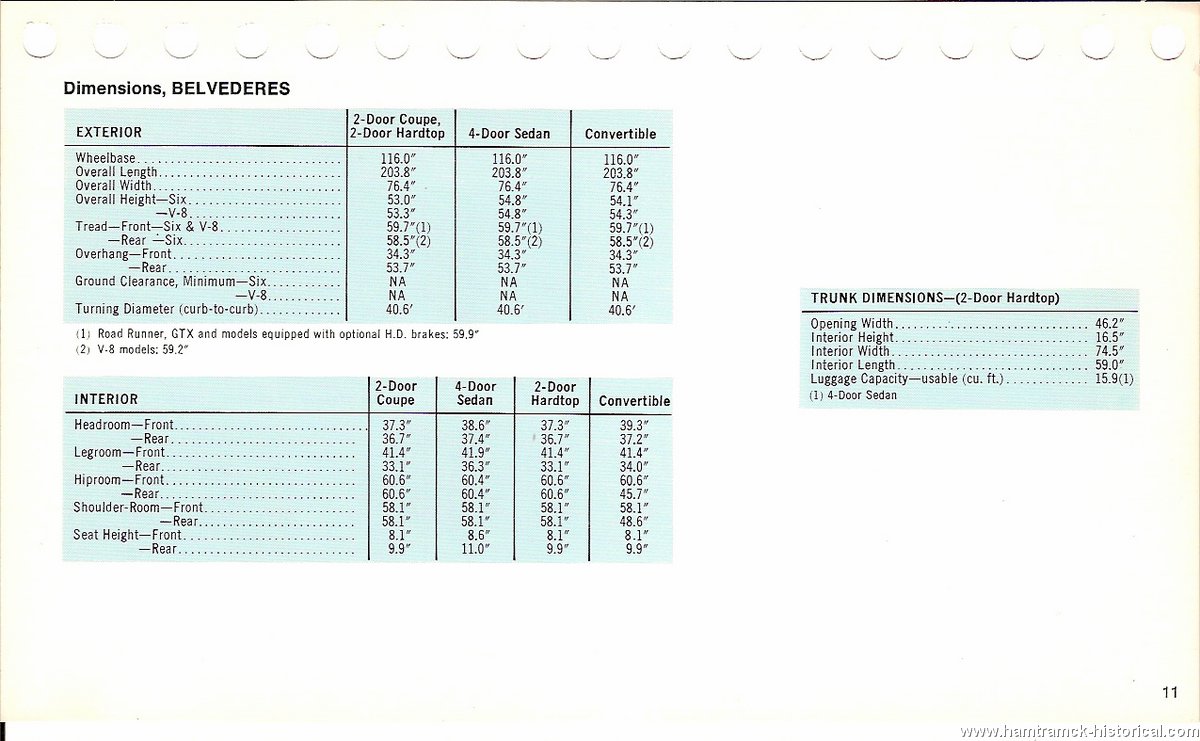

Image: 70_Plymouth_Specs0011
Dimensions Belvederes

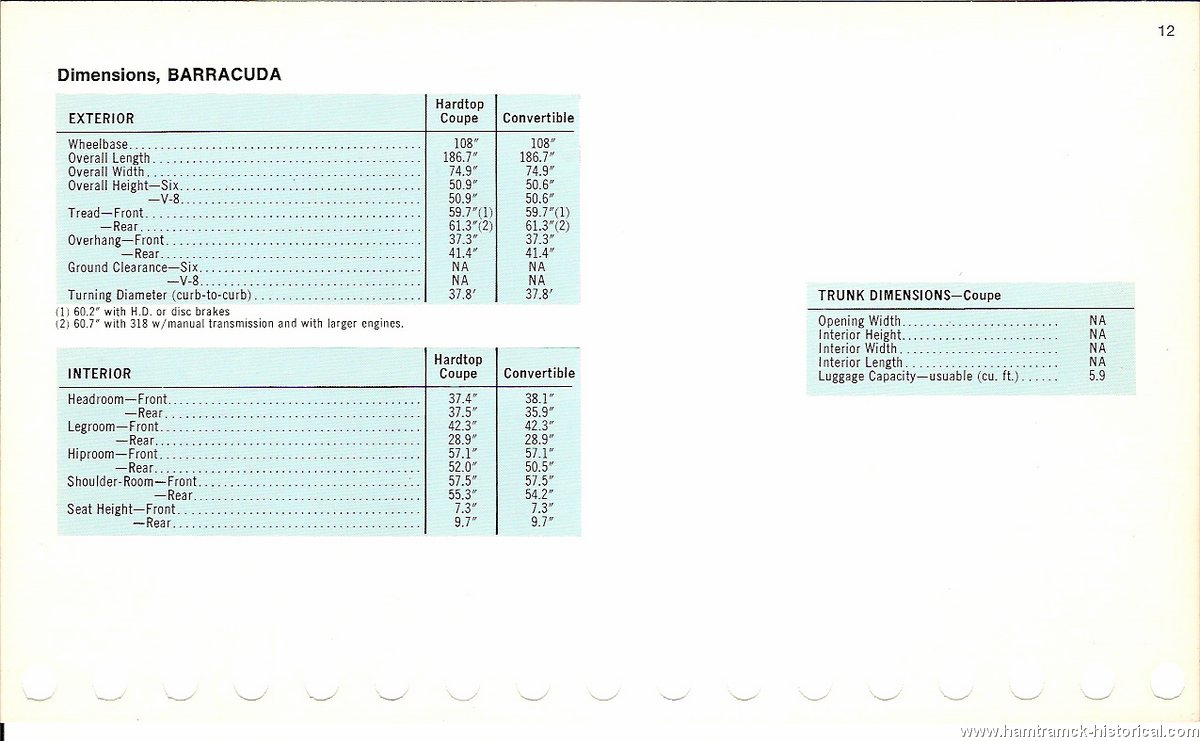

Image: 70_Plymouth_Specs0012
Dimensions Barracuda

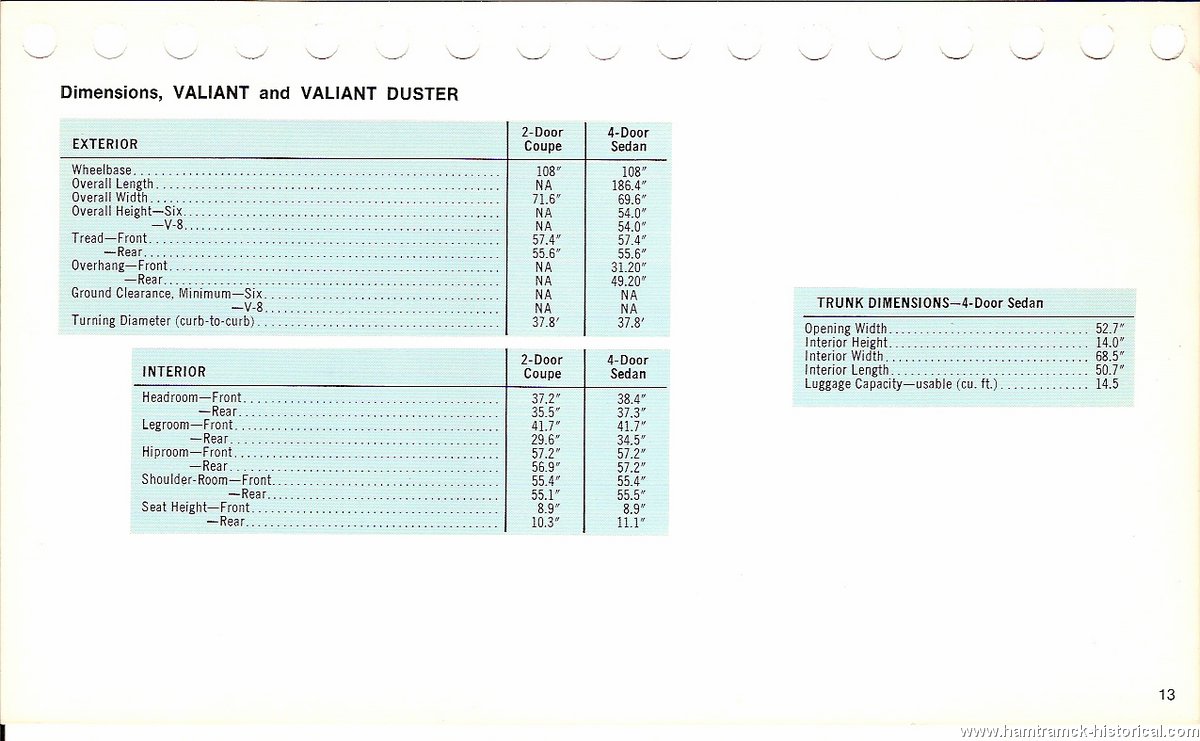

Image: 70_Plymouth_Specs0013
Dimensions Valiant & Duster

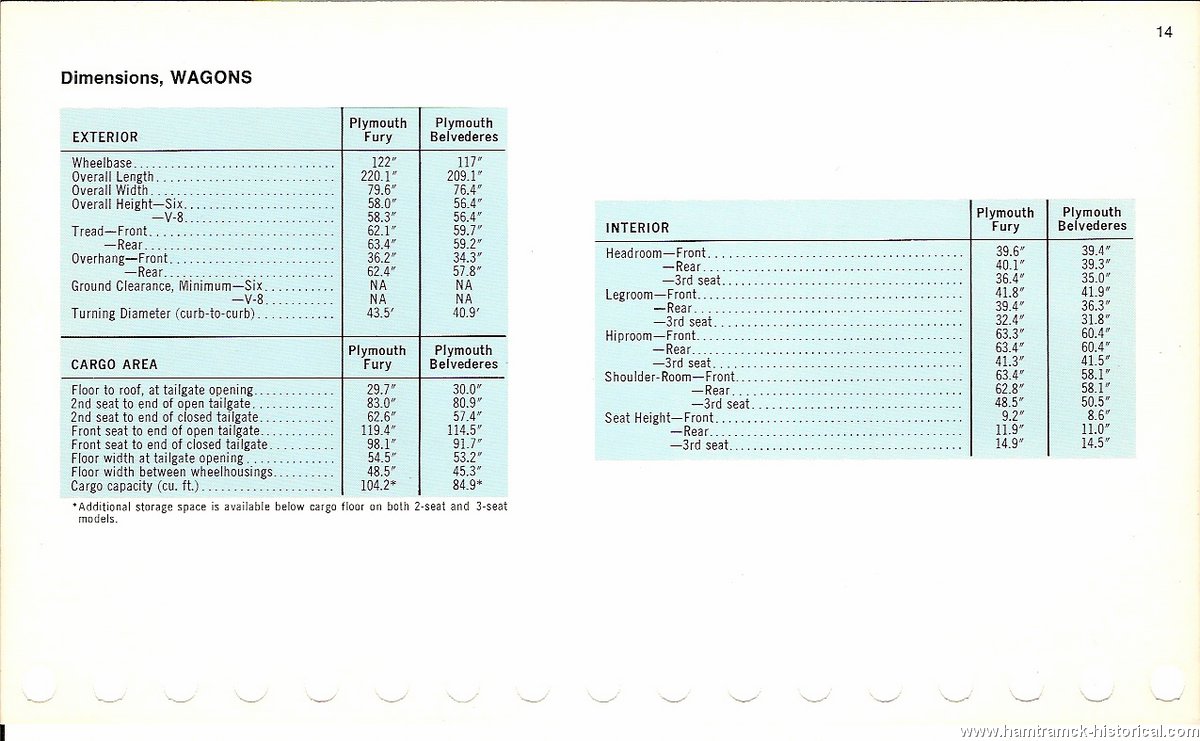

Image: 70_Plymouth_Specs0014
Dimensions Wagons

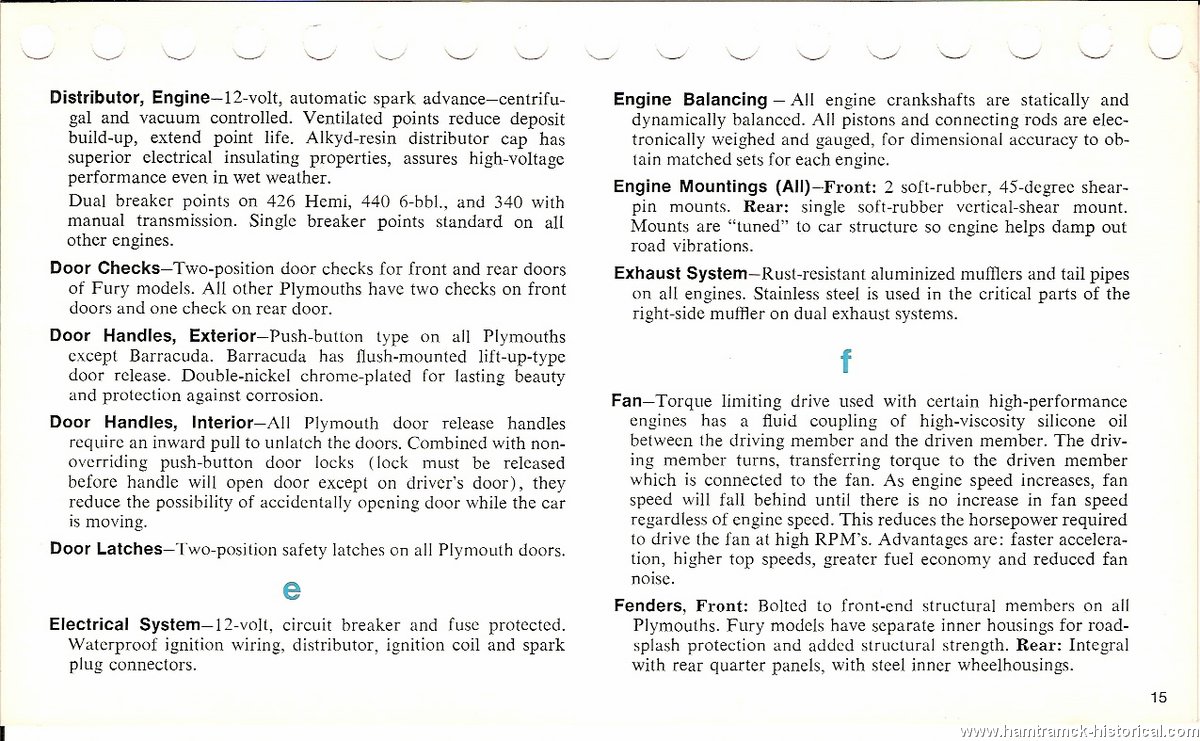

Image: 70_Plymouth_Specs0015
Distributor Engine - Fenders Front

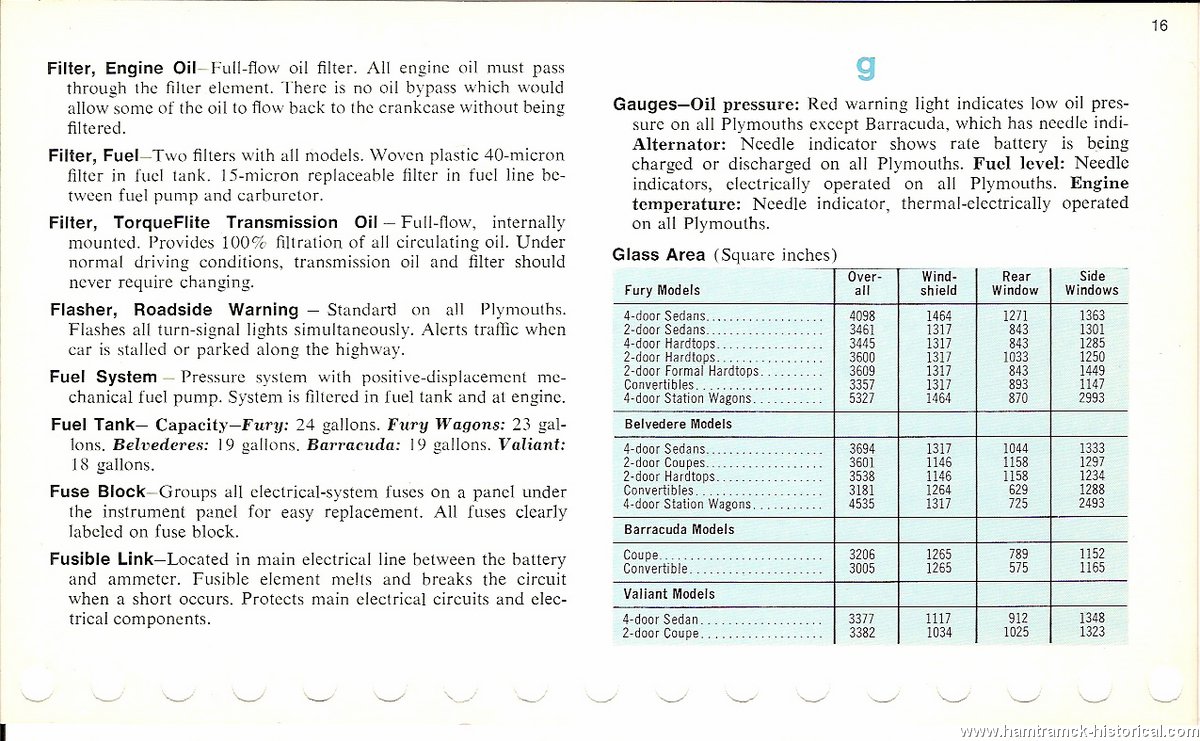

Image: 70_Plymouth_Specs0016
Filter Engine Oil - Glass Area

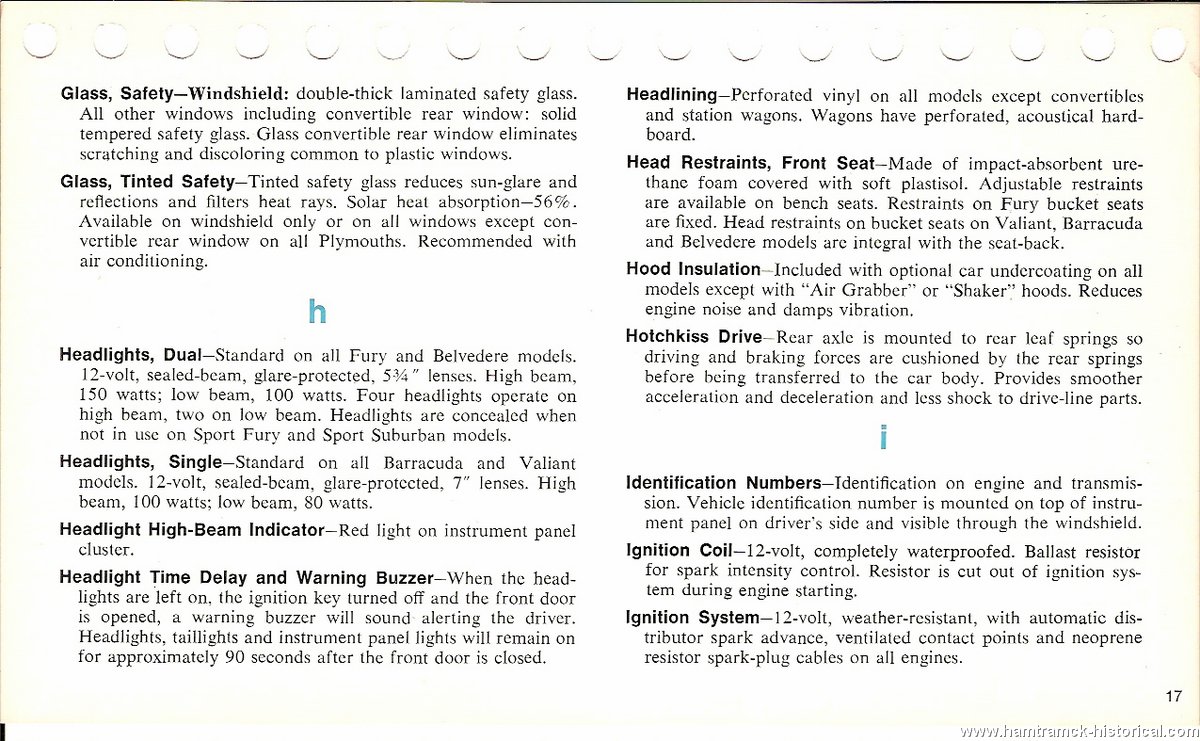

Image: 70_Plymouth_Specs0017
Glass Safety - Ignition System

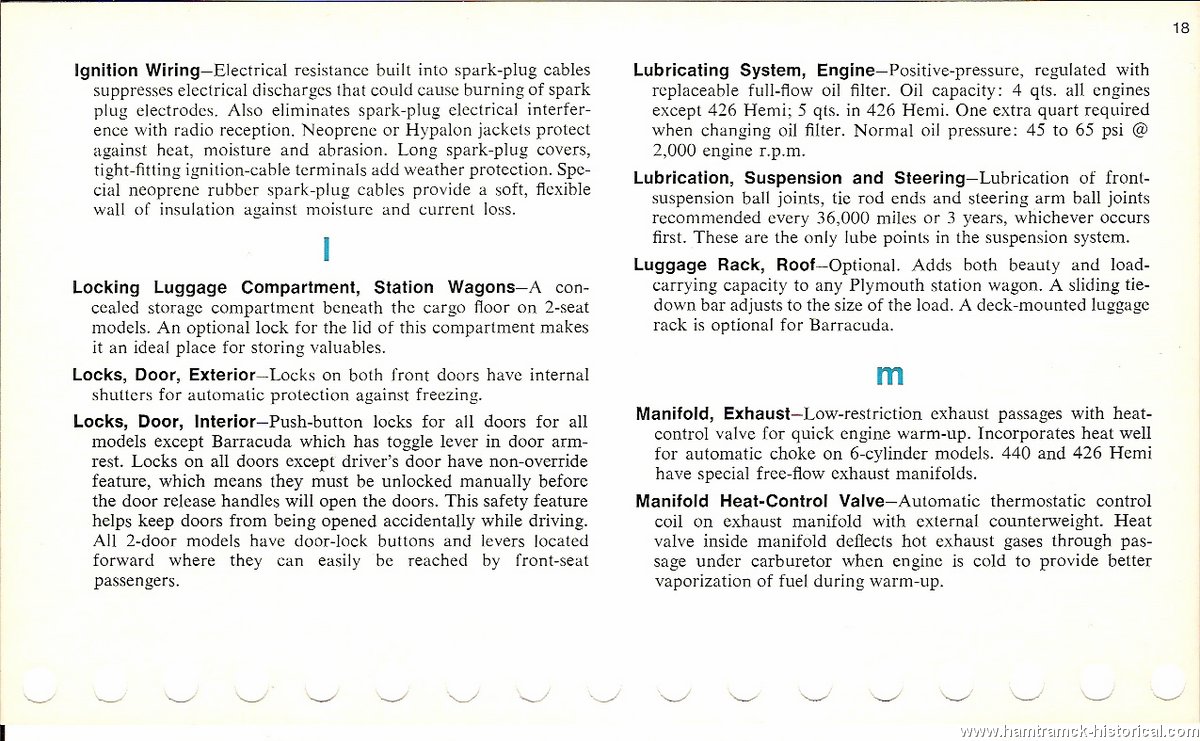

Image: 70_Plymouth_Specs0018
Ignition Wiring - Manifold Heat Control Valve

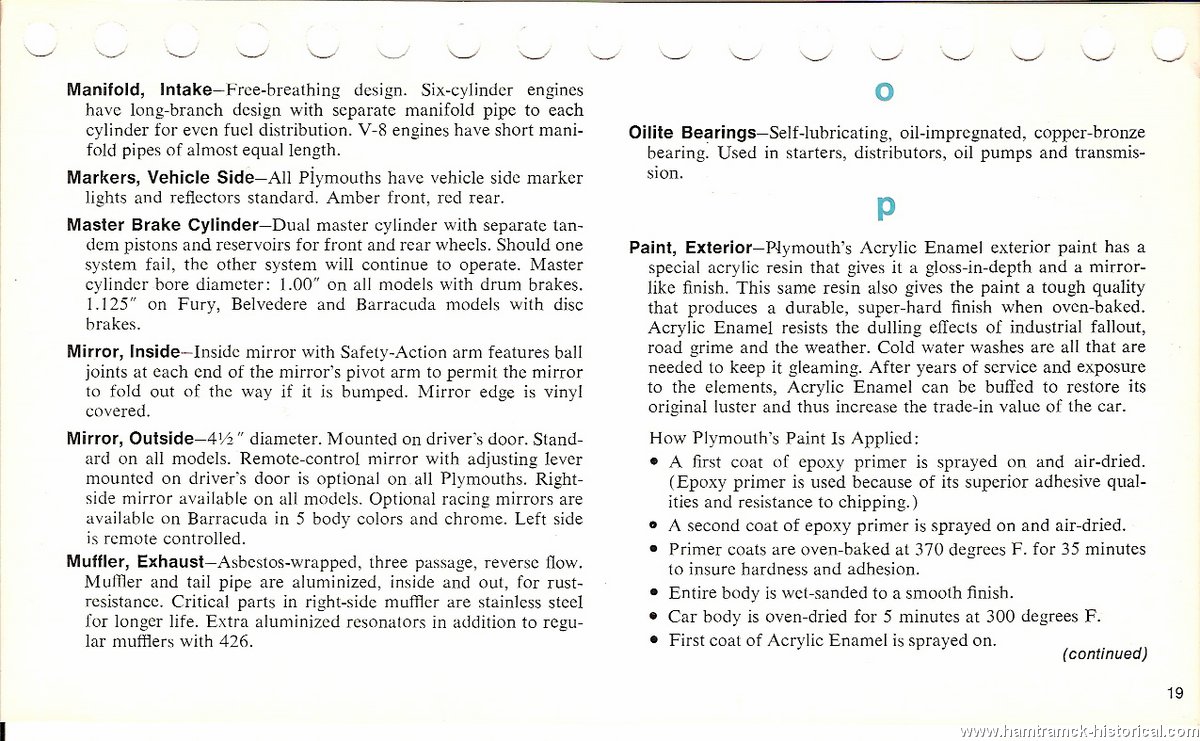

Image: 70_Plymouth_Specs0019
Manifold Intake - Paint, Exterior

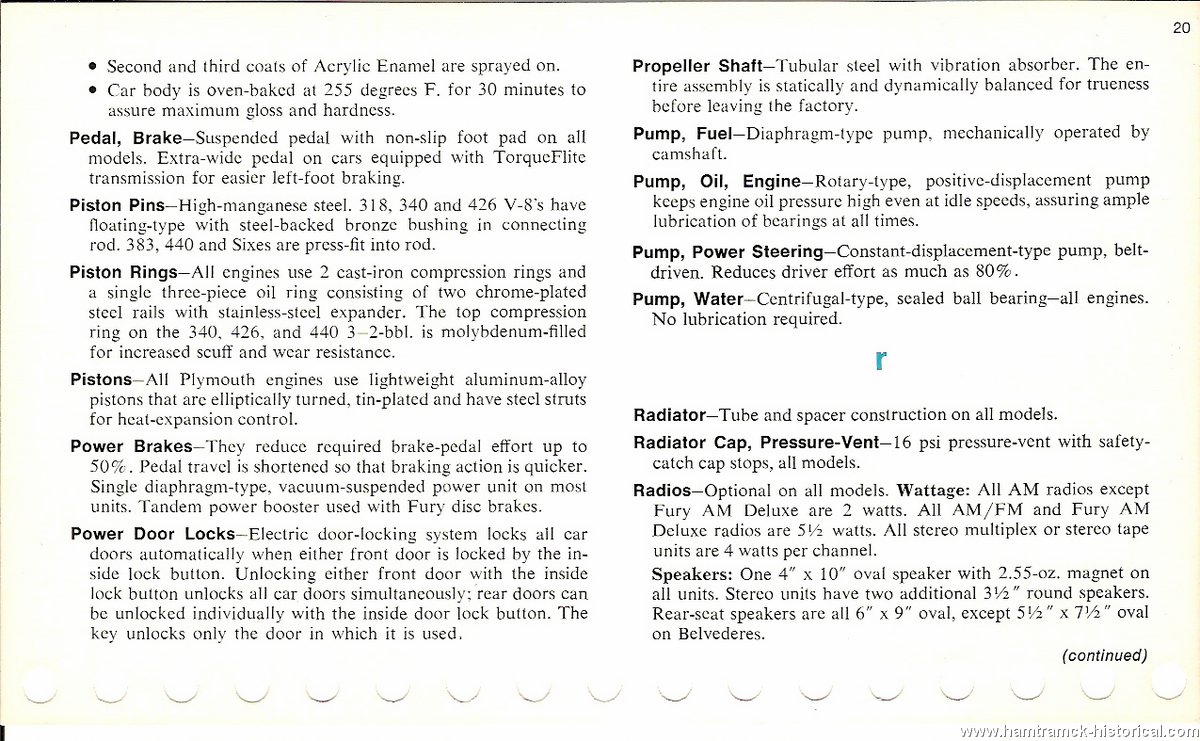

Image: 70_Plymouth_Specs0020
Pedal, Brake - Radios

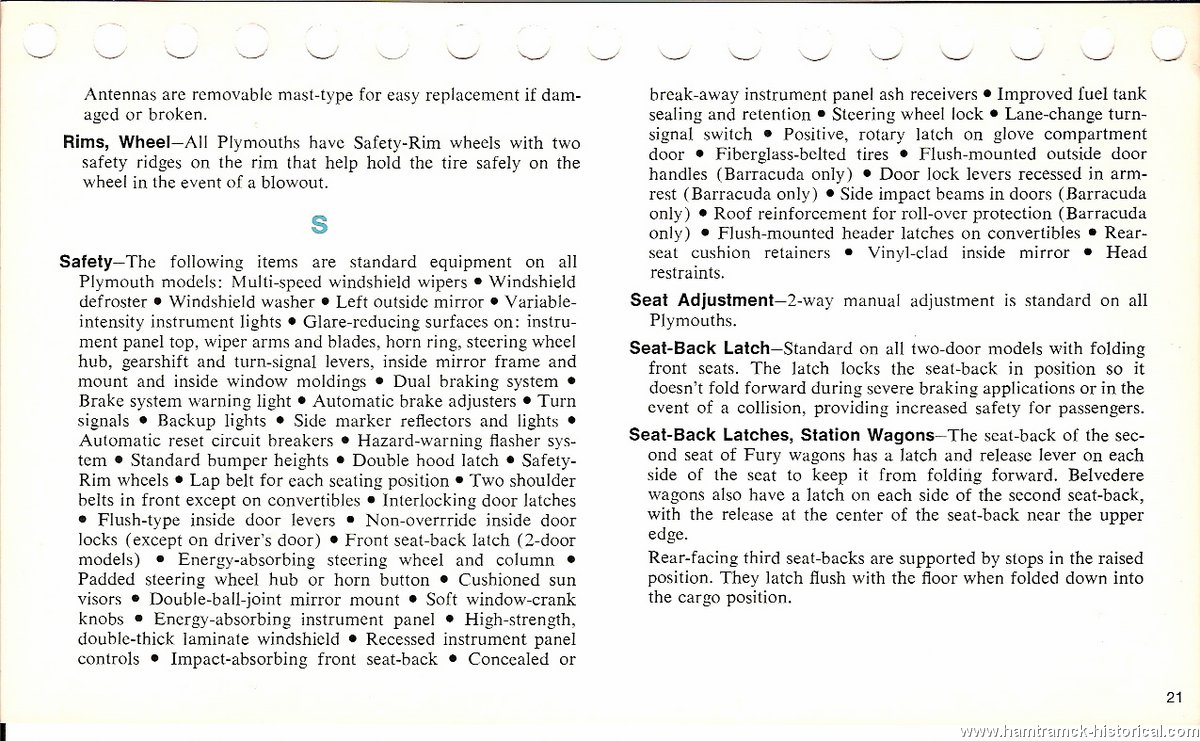

Image: 70_Plymouth_Specs0021
Rims, Wheel - Seat Back Latches, Station Wagons

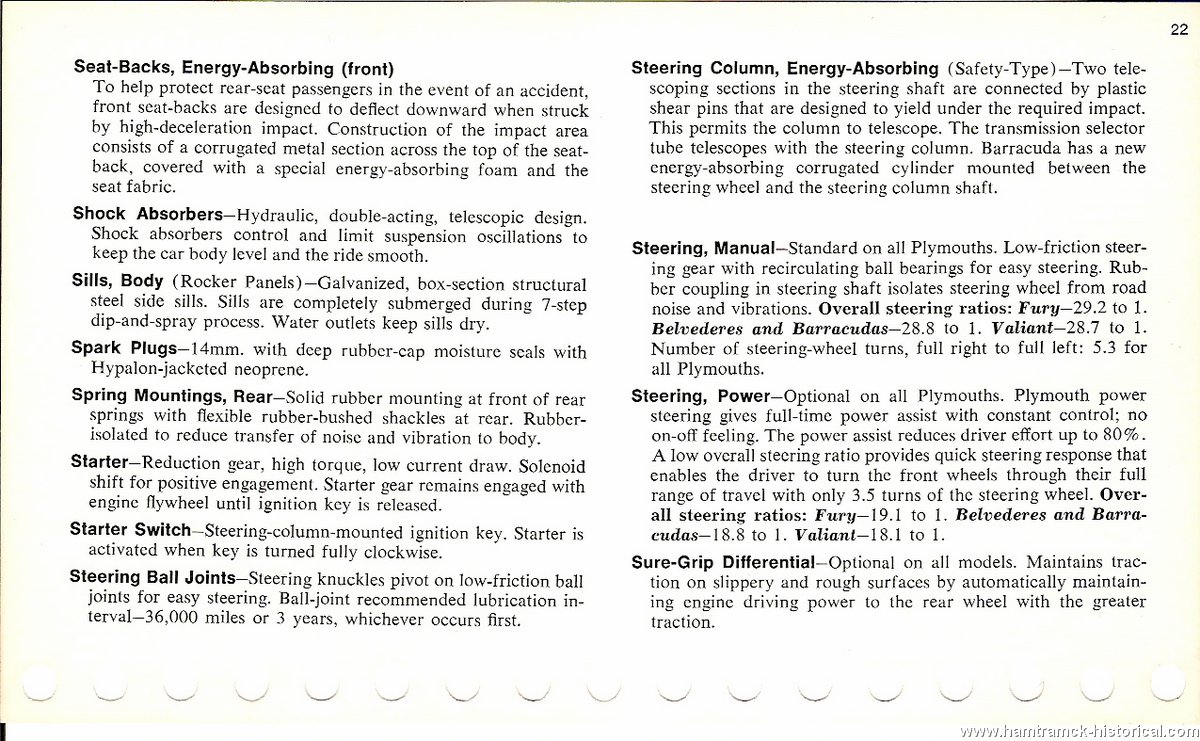

Image: 70_Plymouth_Specs0022
Seat Backs, Energy Absorbing - Sure Grip Differential

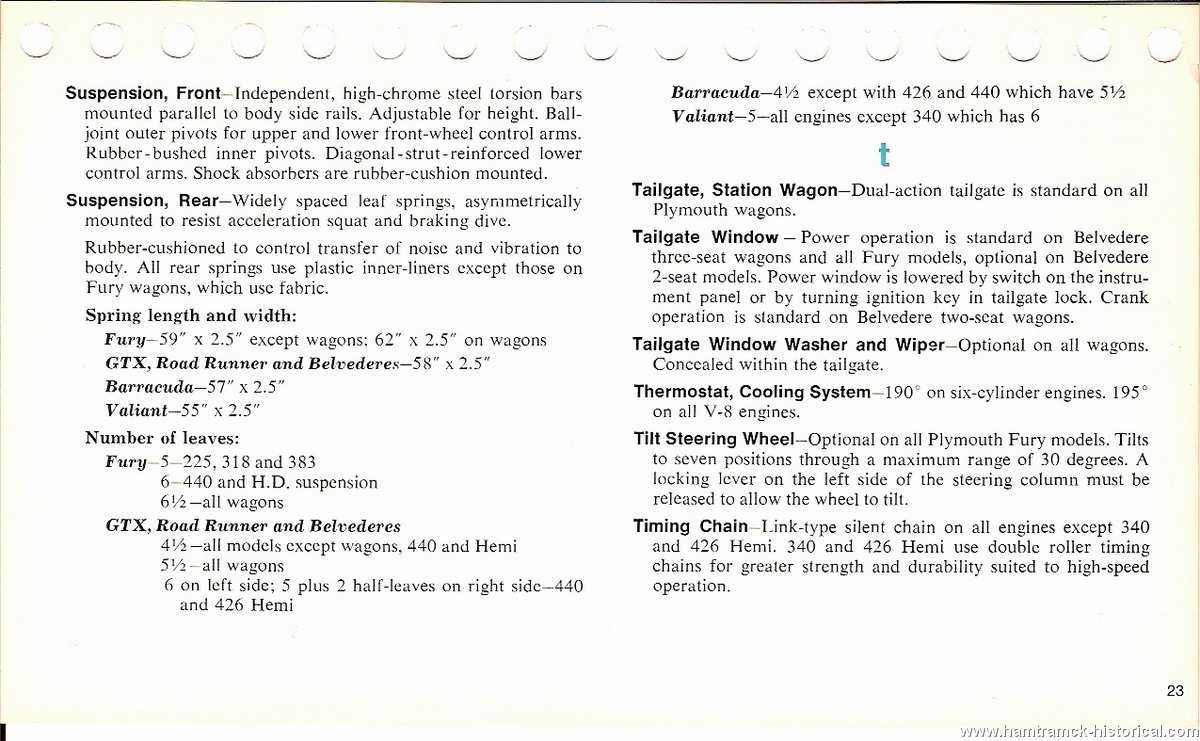

Image: 70_Plymouth_Specs0023
Suspension Front - Timing Chain

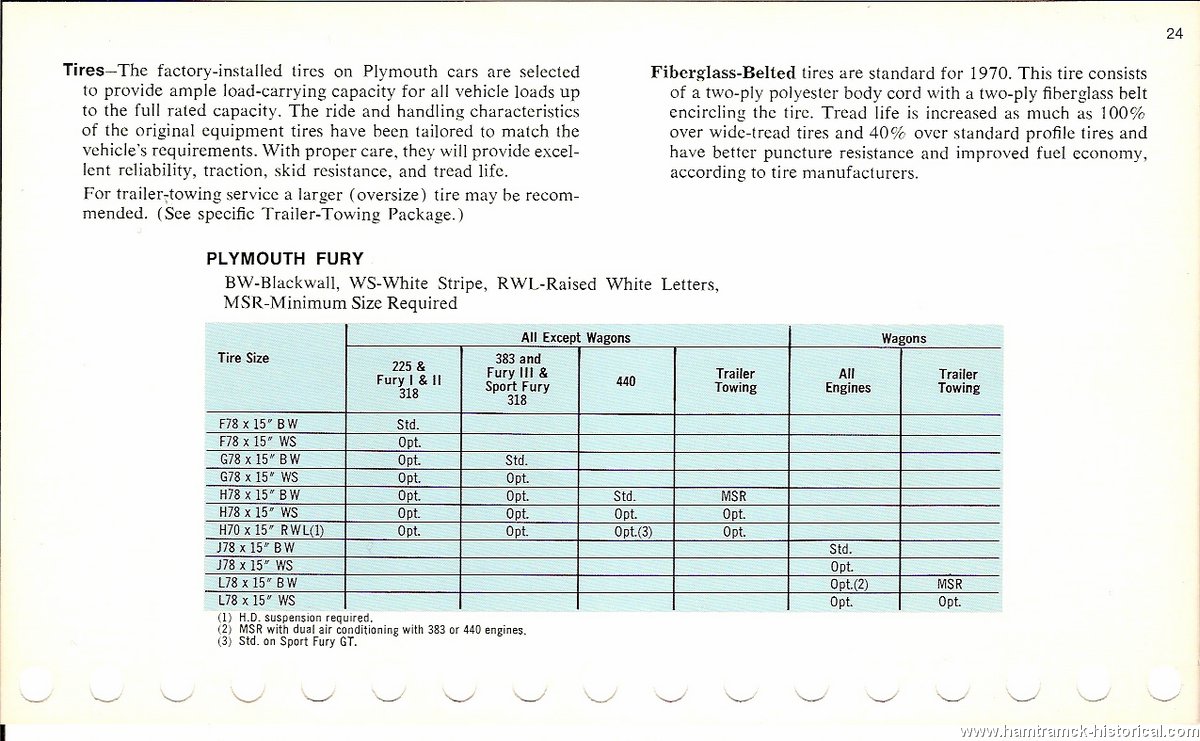

Image: 70_Plymouth_Specs0024
Tires - Plymouth Fury

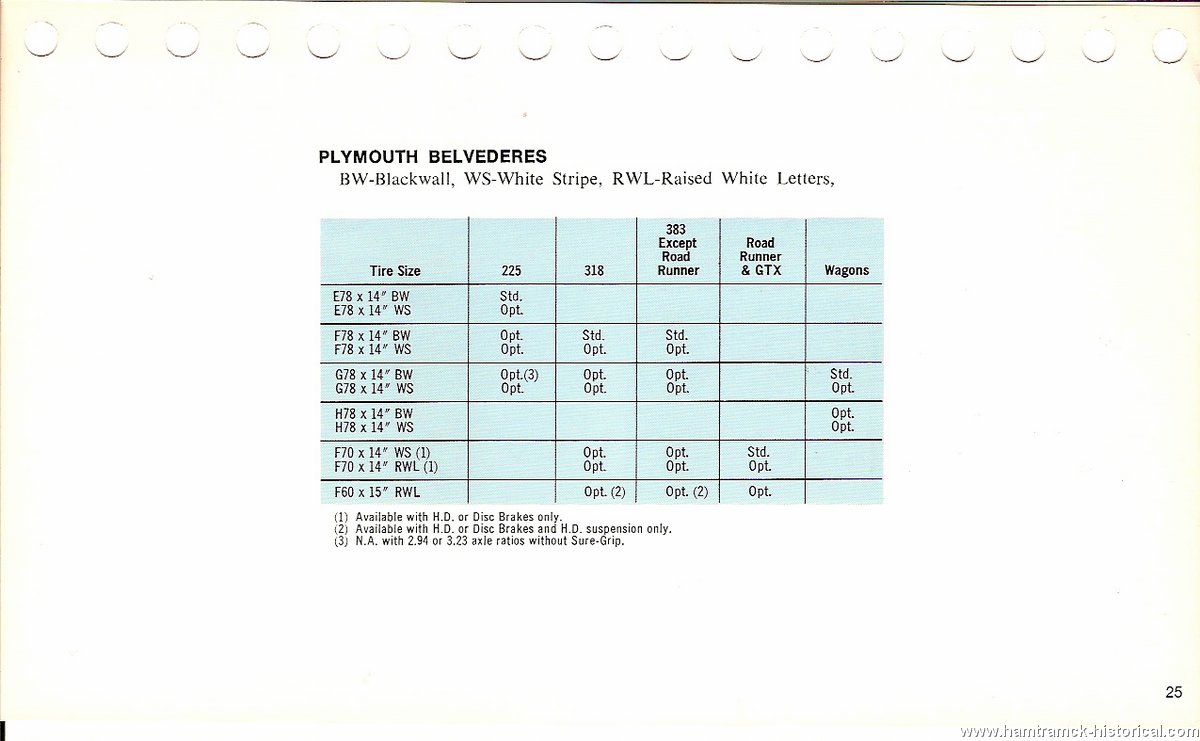

Image: 70_Plymouth_Specs0025
Tires - Belvedere

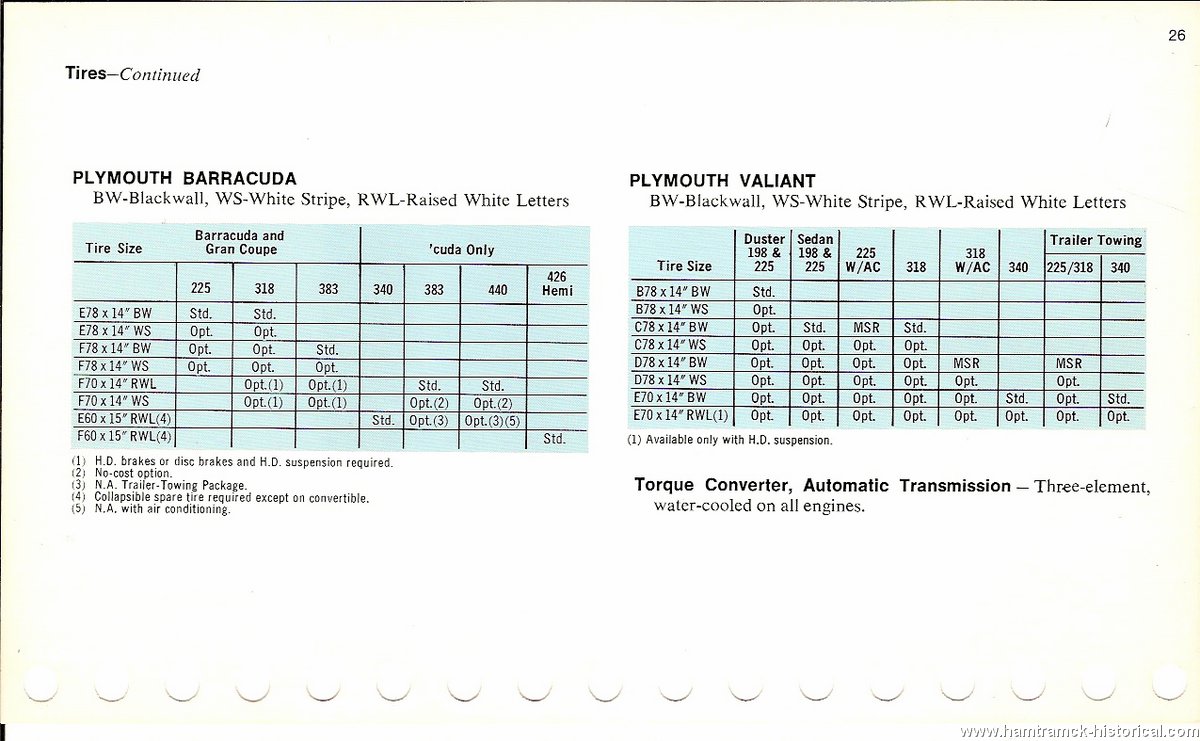

Image: 70_Plymouth_Specs0026
Tires Barracuda / Valiant

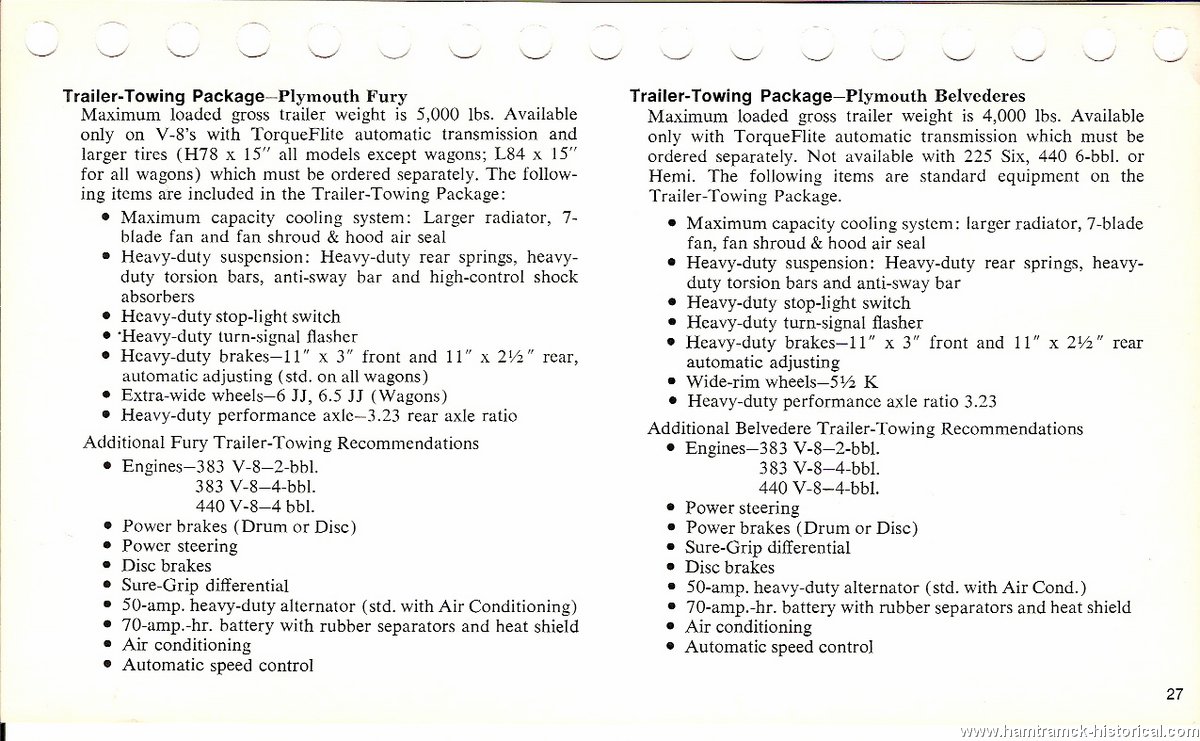

Image: 70_Plymouth_Specs0027
Trailer Towing Package Fury / Belvedere

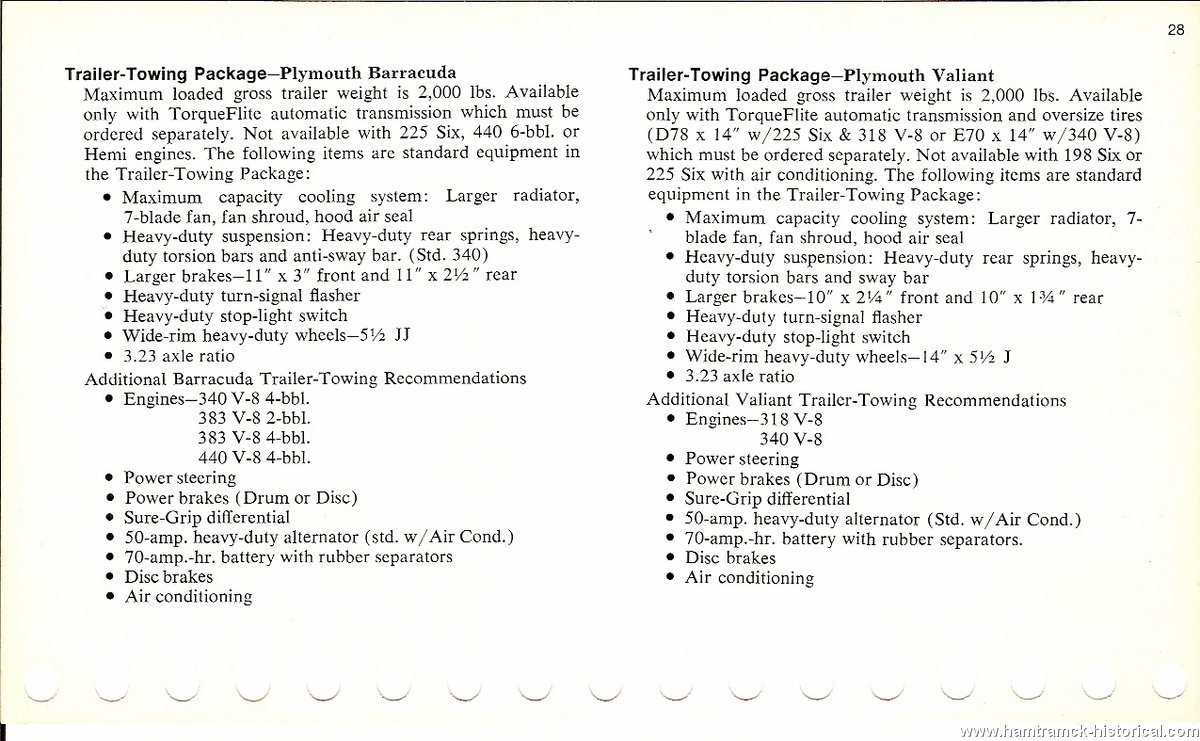

Image: 70_Plymouth_Specs0028
Trailer Towing Package Barracuda / Valiant

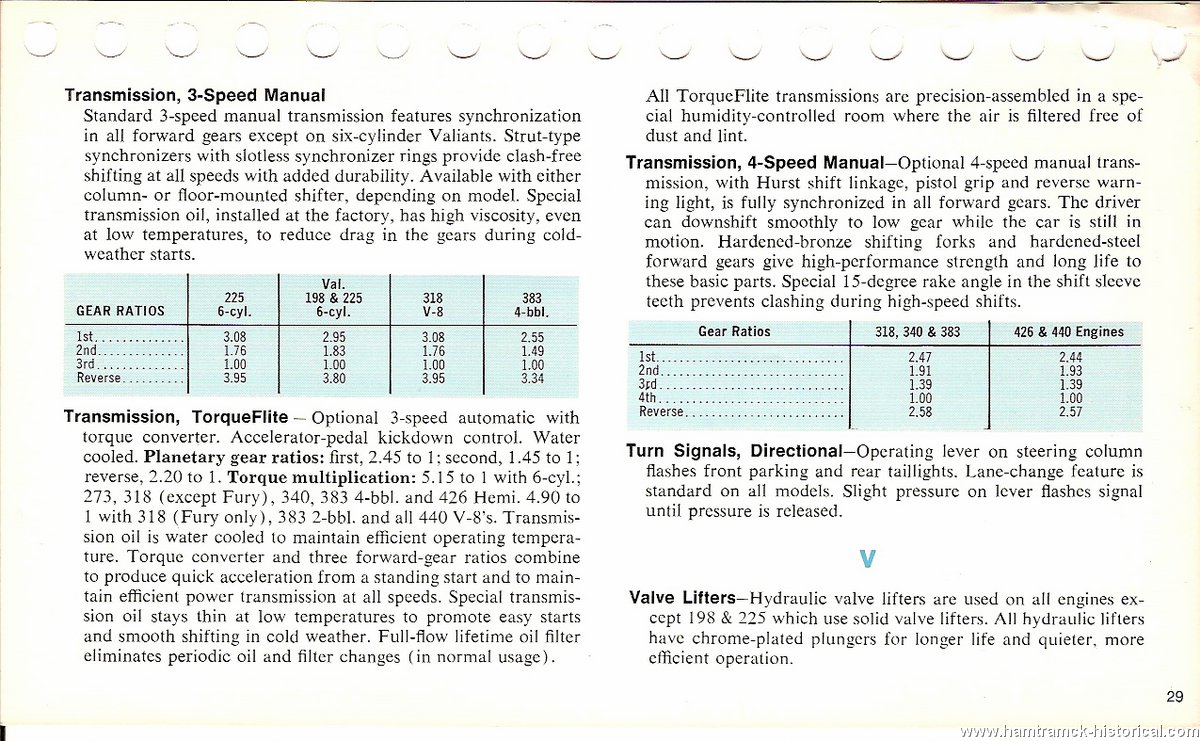

Image: 70_Plymouth_Specs0029
Transmission - Valve Lifters

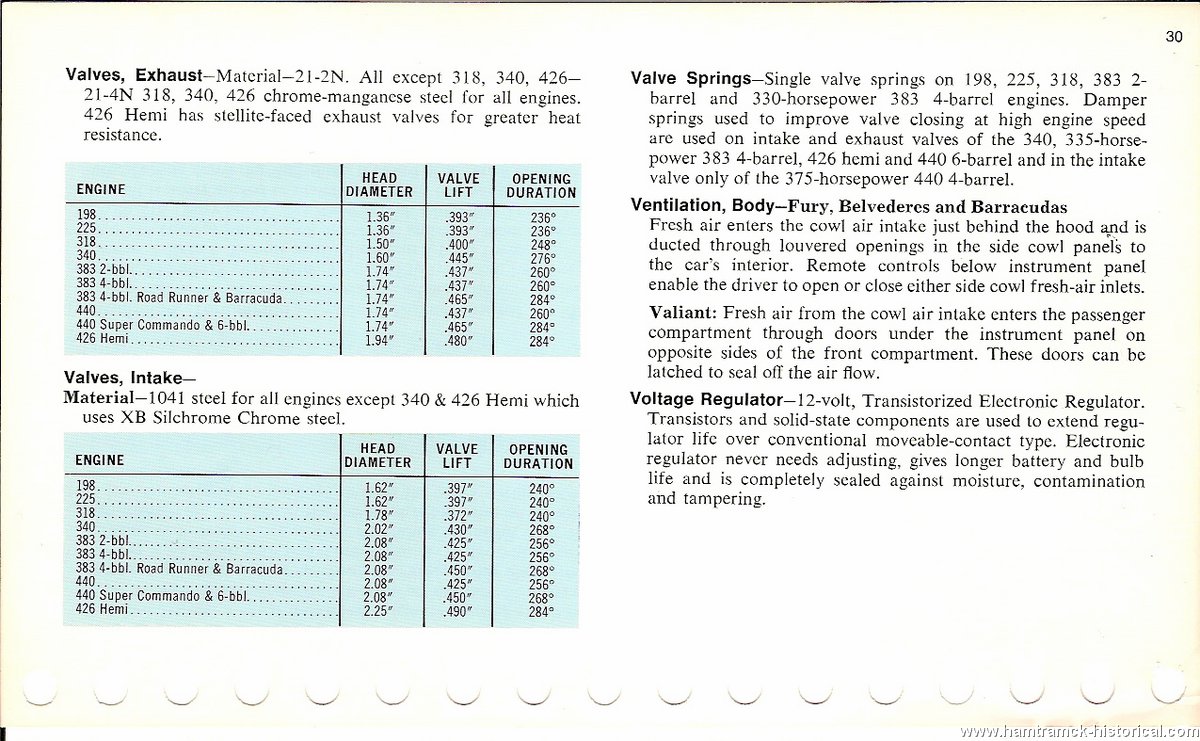

Image: 70_Plymouth_Specs0030
Valves Exhaust - Voltage Regulator

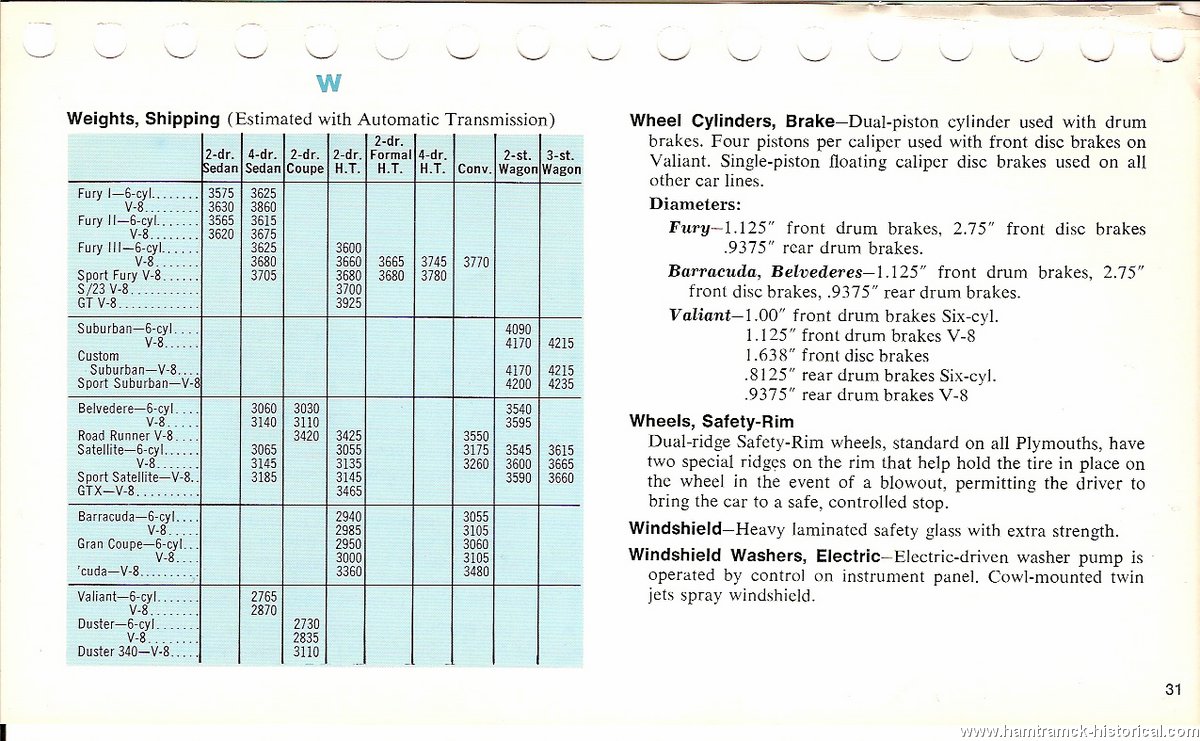

Image: 70_Plymouth_Specs0031
Weights Shipping - Windshield Washer, Electric

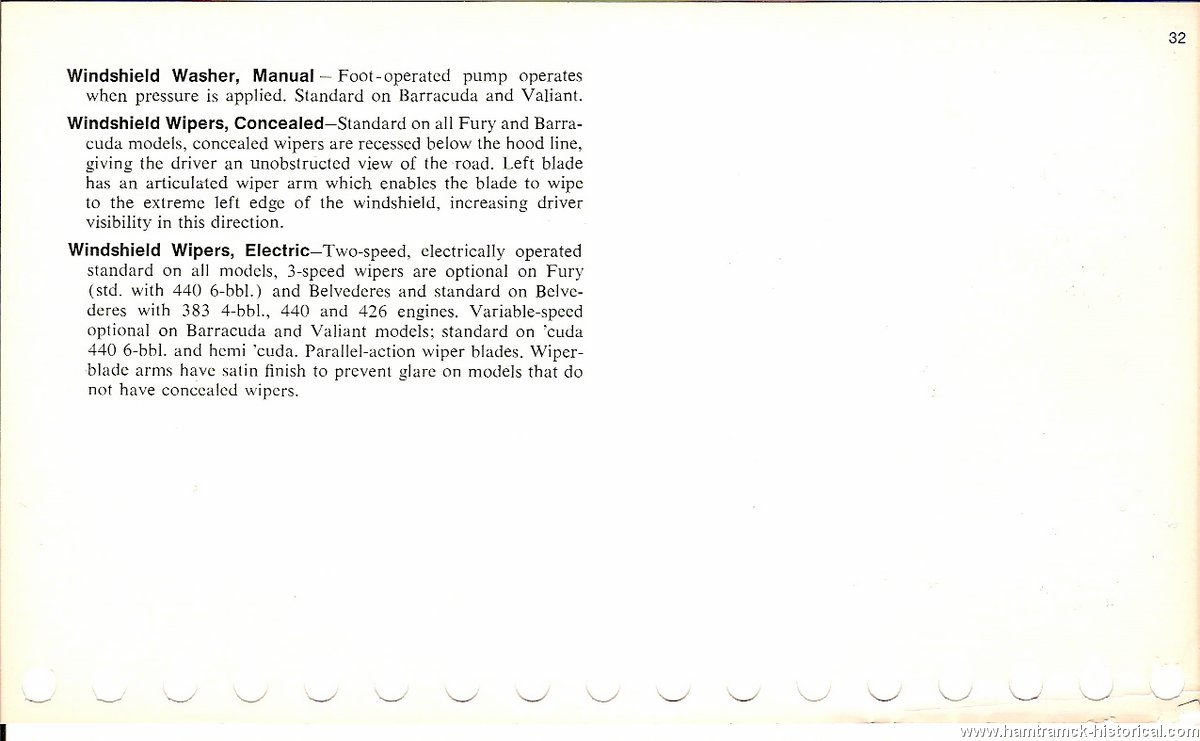

Image: 70_Plymouth_Specs0032
Windshield Washer, Manual - Windshield Wipers, Electric
