N88 Speed Control Package Installation Instructions

1978 Dodge Challenger & Mitsubishi Sapporo

CLICK ON IMAGES TO ENLARGE
Image: Sapporo Ins 1

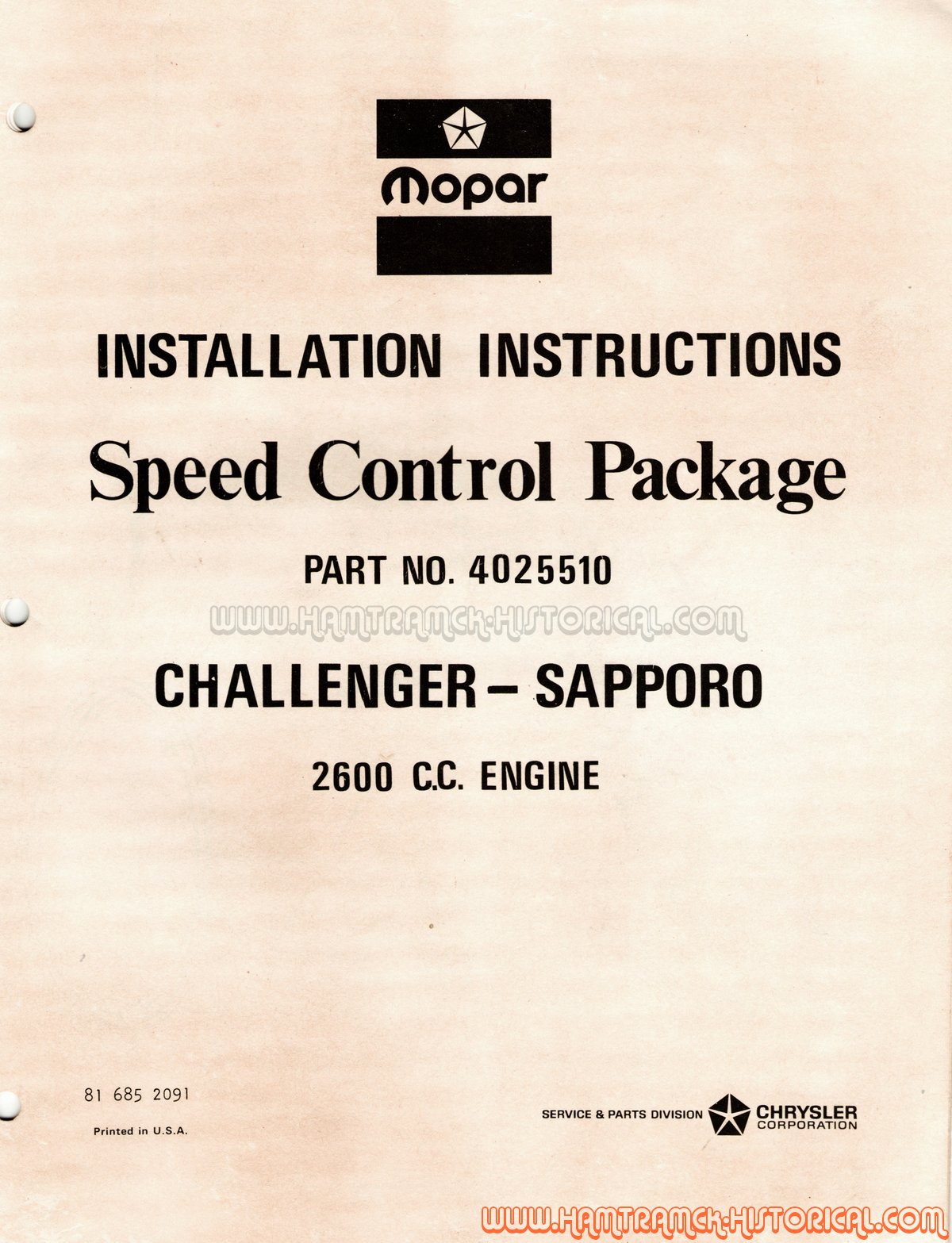

Installation Instructions Cover
Image: Sapporo Ins 2

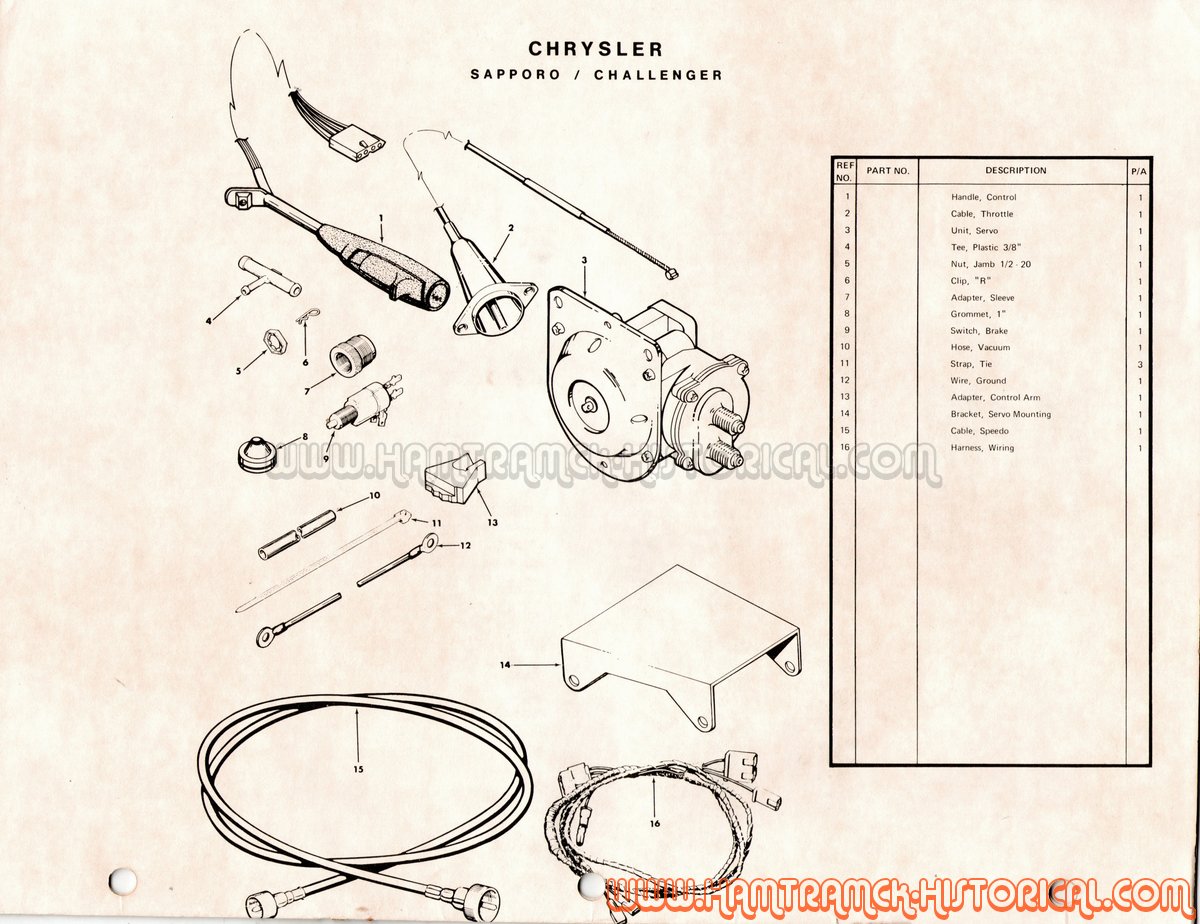

Parts

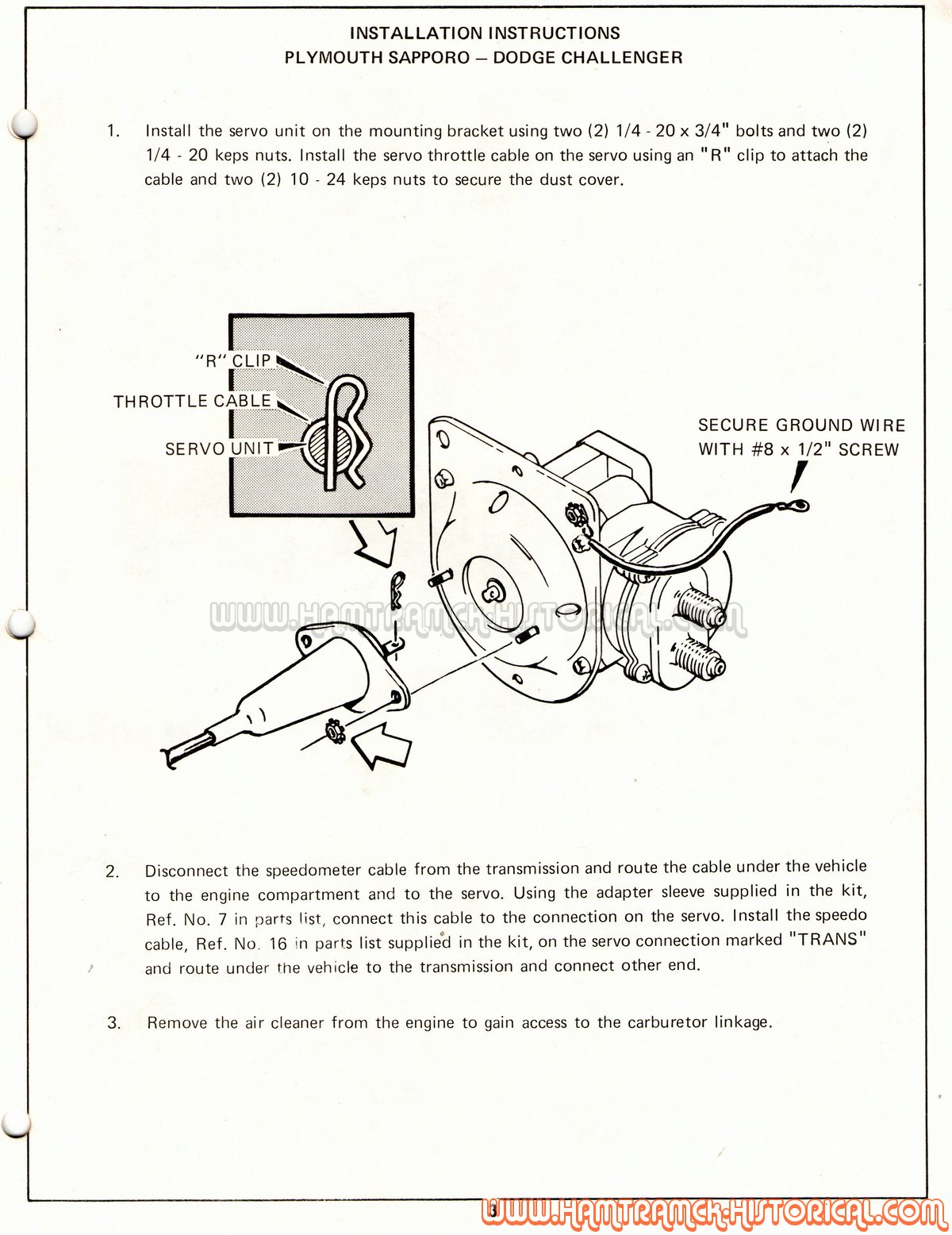

Image: Sapporo Ins 3
Installation Instructions - Install the servo unit, disconnect speedo, remove air cleaner ...
Image: Sapporo Ins 4.0

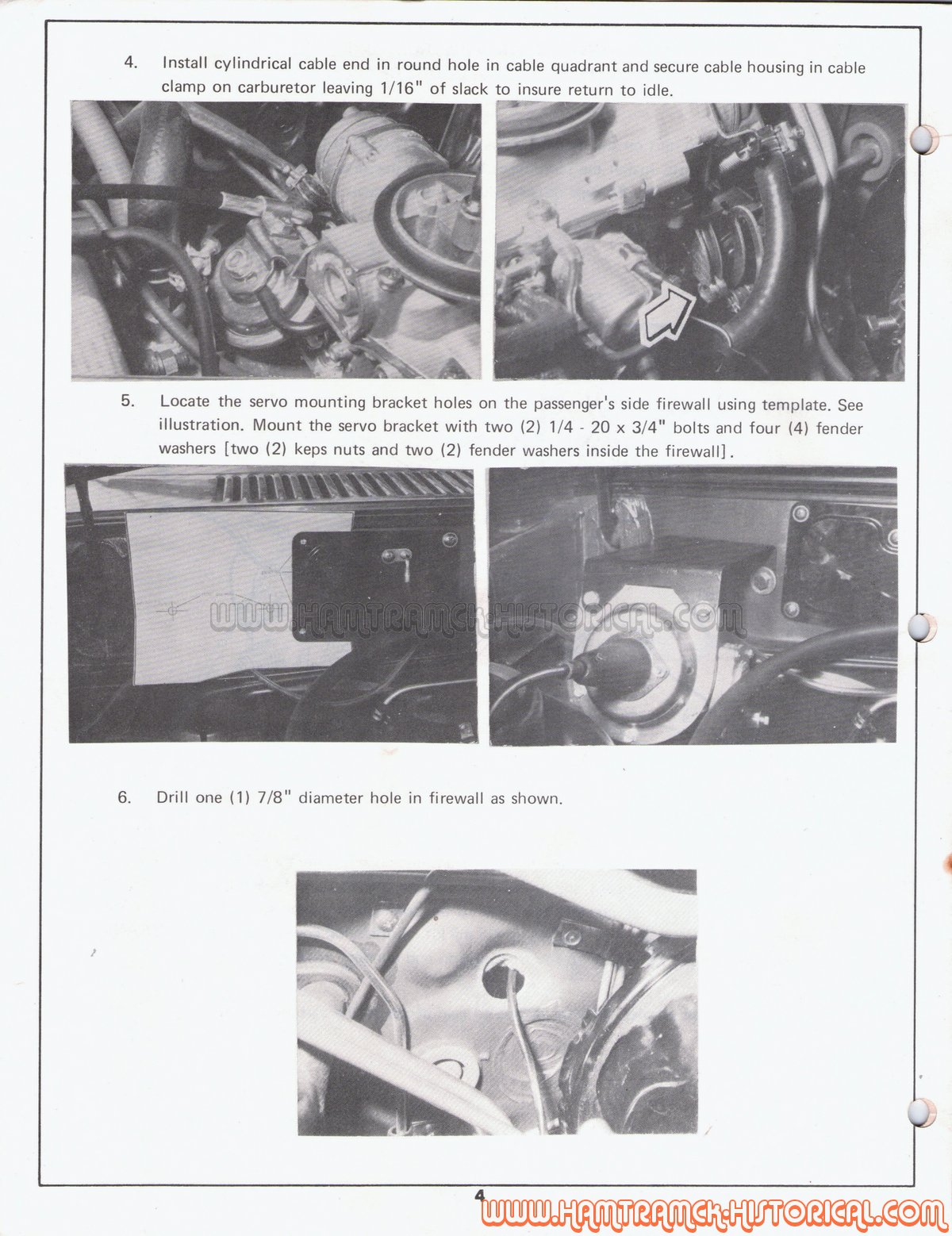

Install Cylindrical cable, locate servo mounting bracket holes, drill one 7/8" hole..

Image: Sapporo Ins 4.1

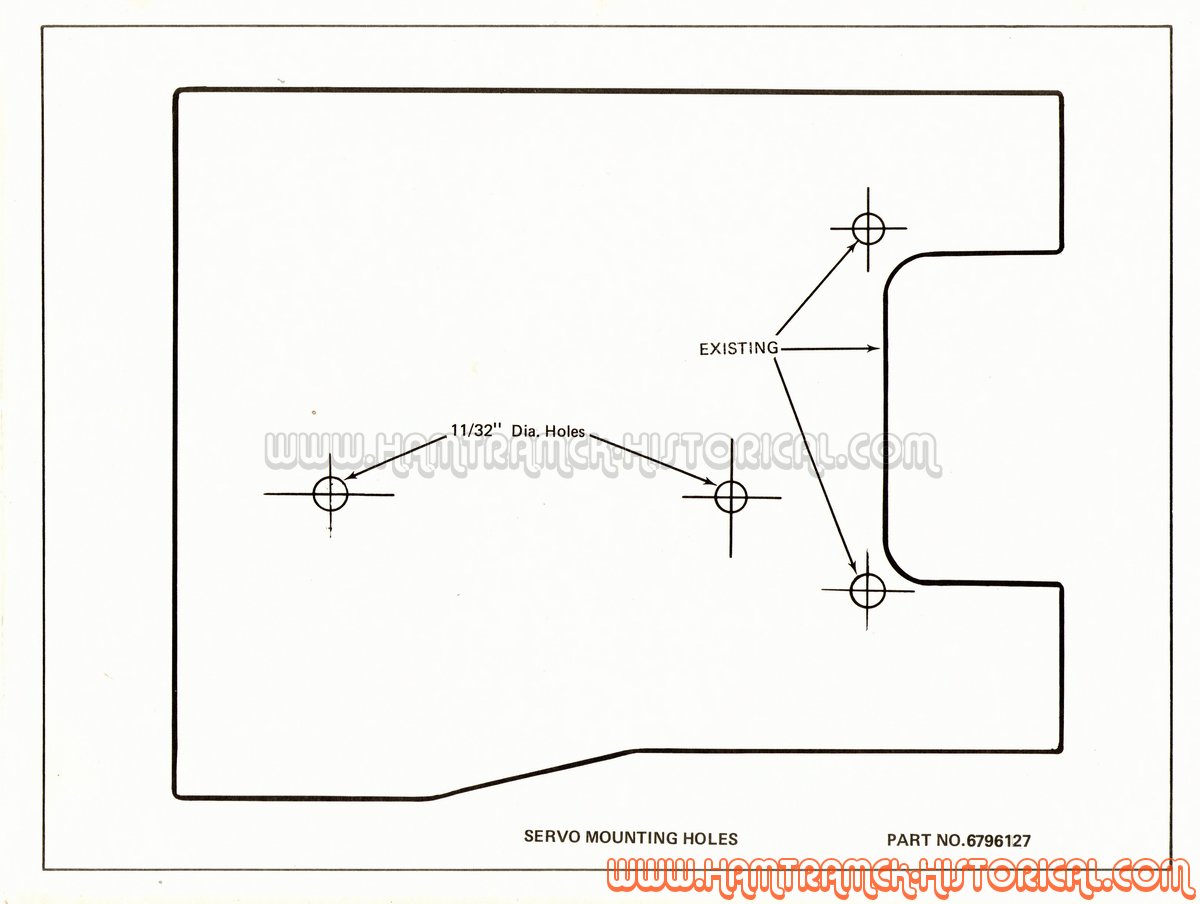

Servo Mounting Holes

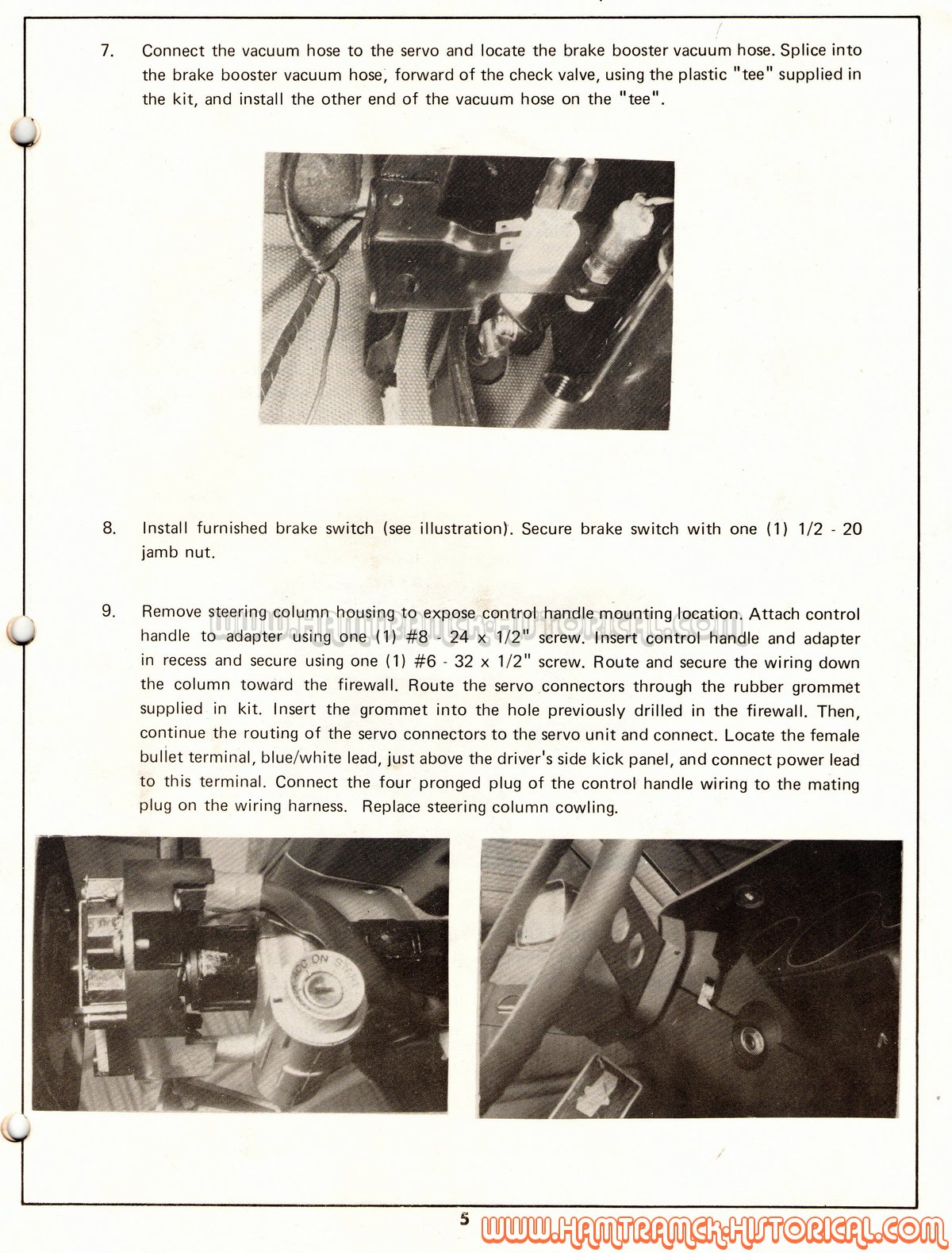

Image: Sapporo Ins 5
Connect to Vacuum Hose ...
Image: Sapporo Ins 6

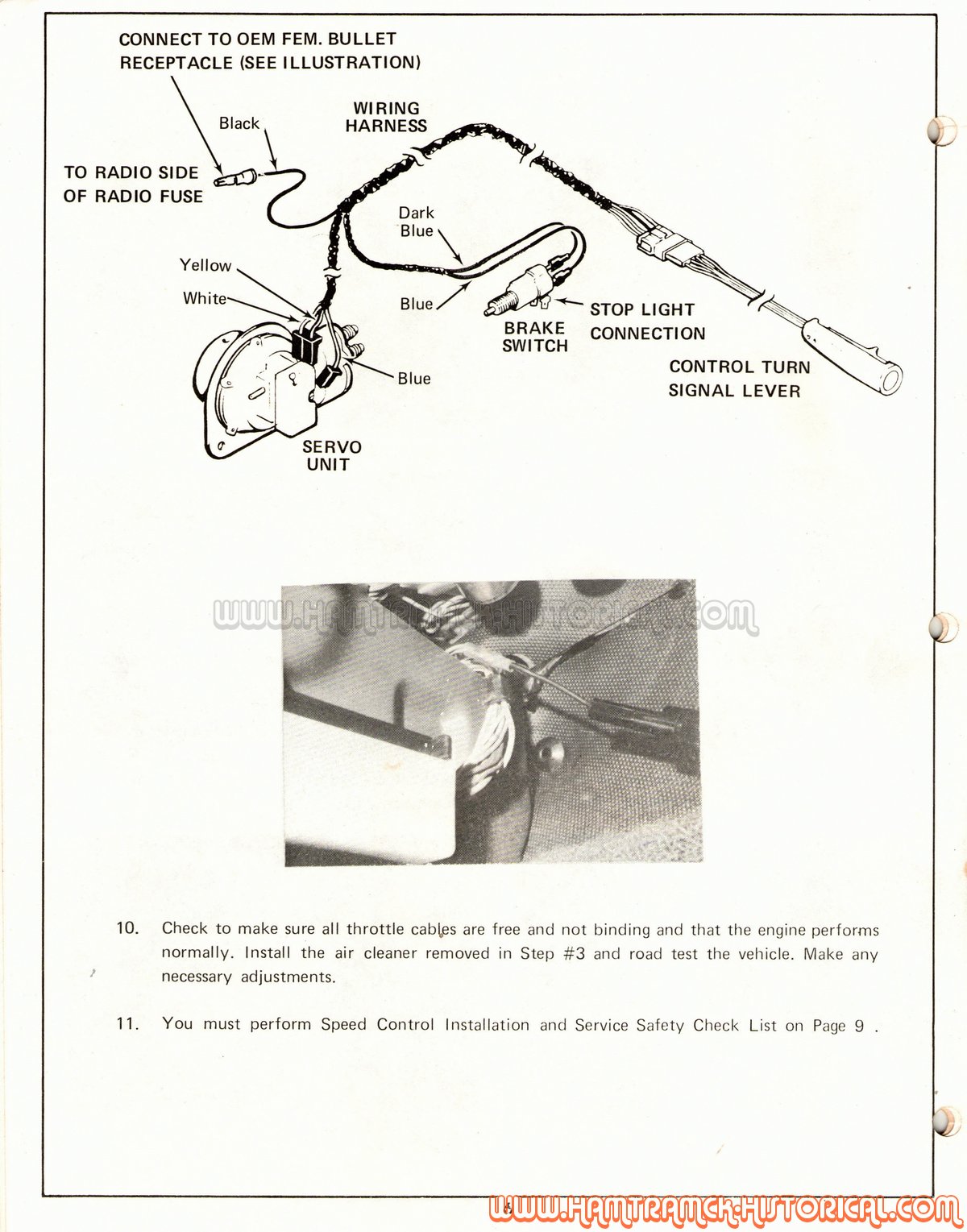

Connect to OEM Fem. Bullet Receptacle...
Image: Sapporo Ins 7

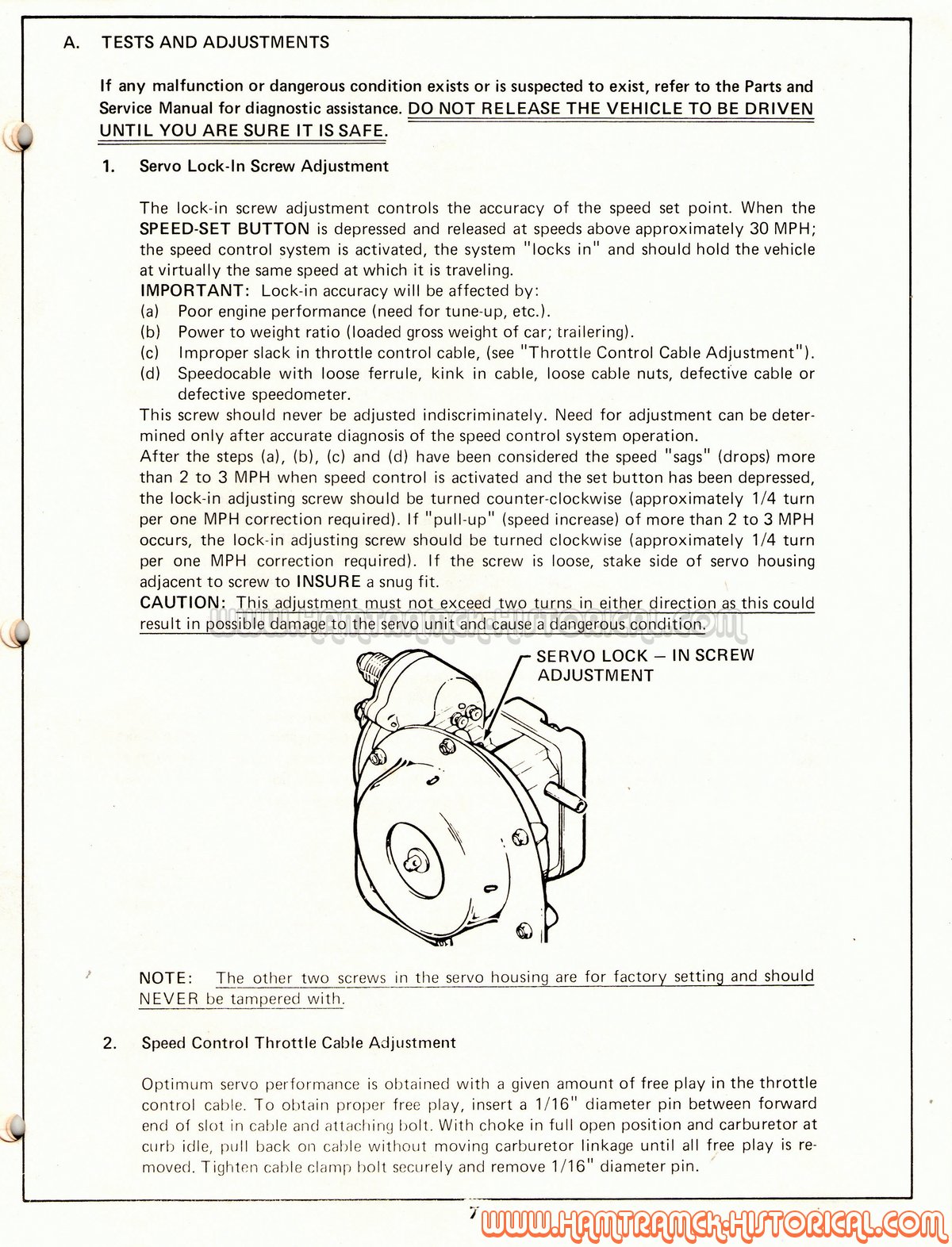

Tests and Adjustments

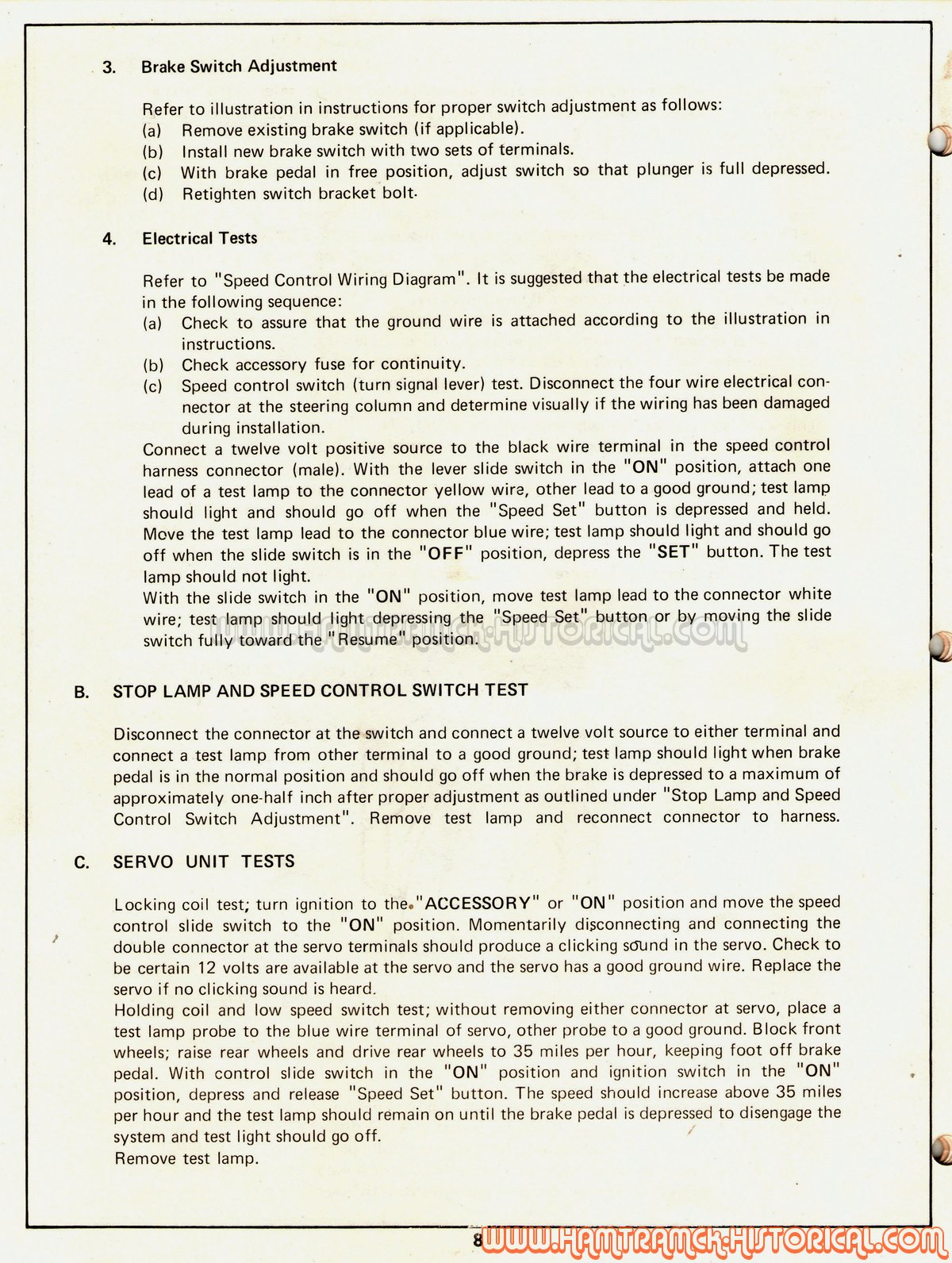

Image: Sapporo Ins 8
Brake Switch Adjustment, Electrical Tests, Stop Lamp and Speed control Switch Test, Servo Unit Tests
Image: Sapporo Ins 9

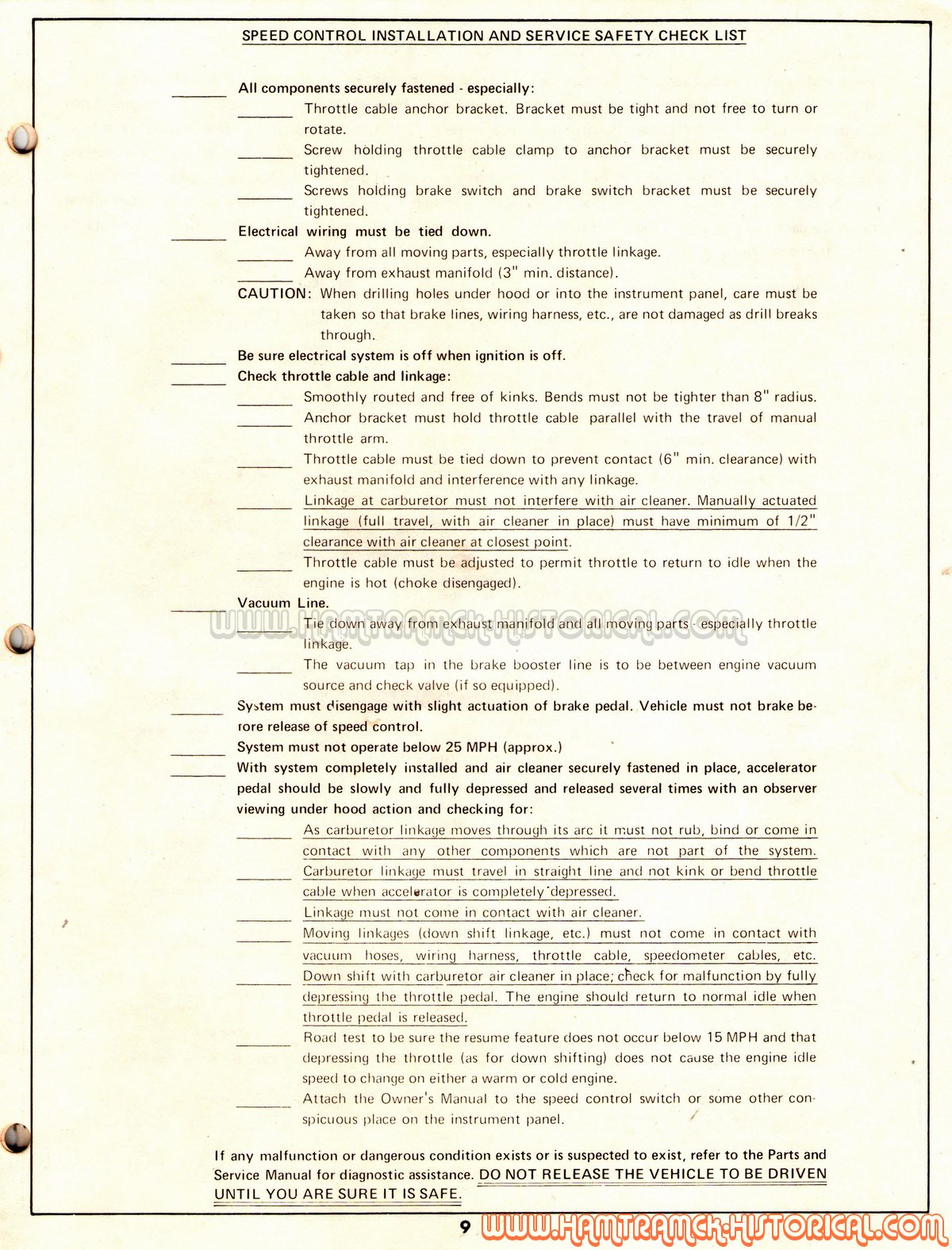

Speed Control Installation and Service Safety Check List
Image: Sapporo Ins 10

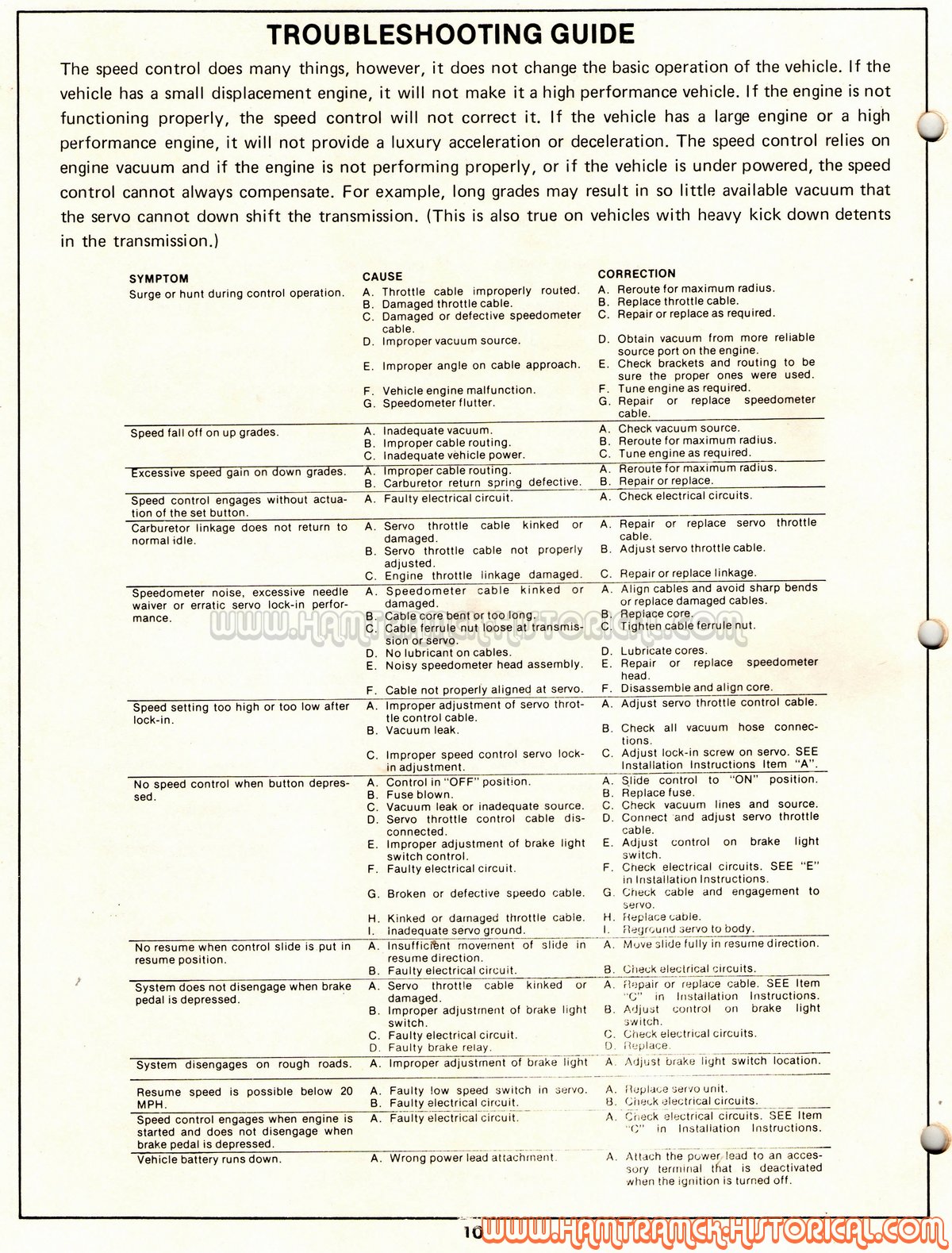

Troubleshooting Guide


1978 Dodge Challenger & Mitsubishi Sapporo - Revision A (June 16, 1978)

CLICK ON IMAGES TO ENLARGE
Image: Sapporo Ins R1

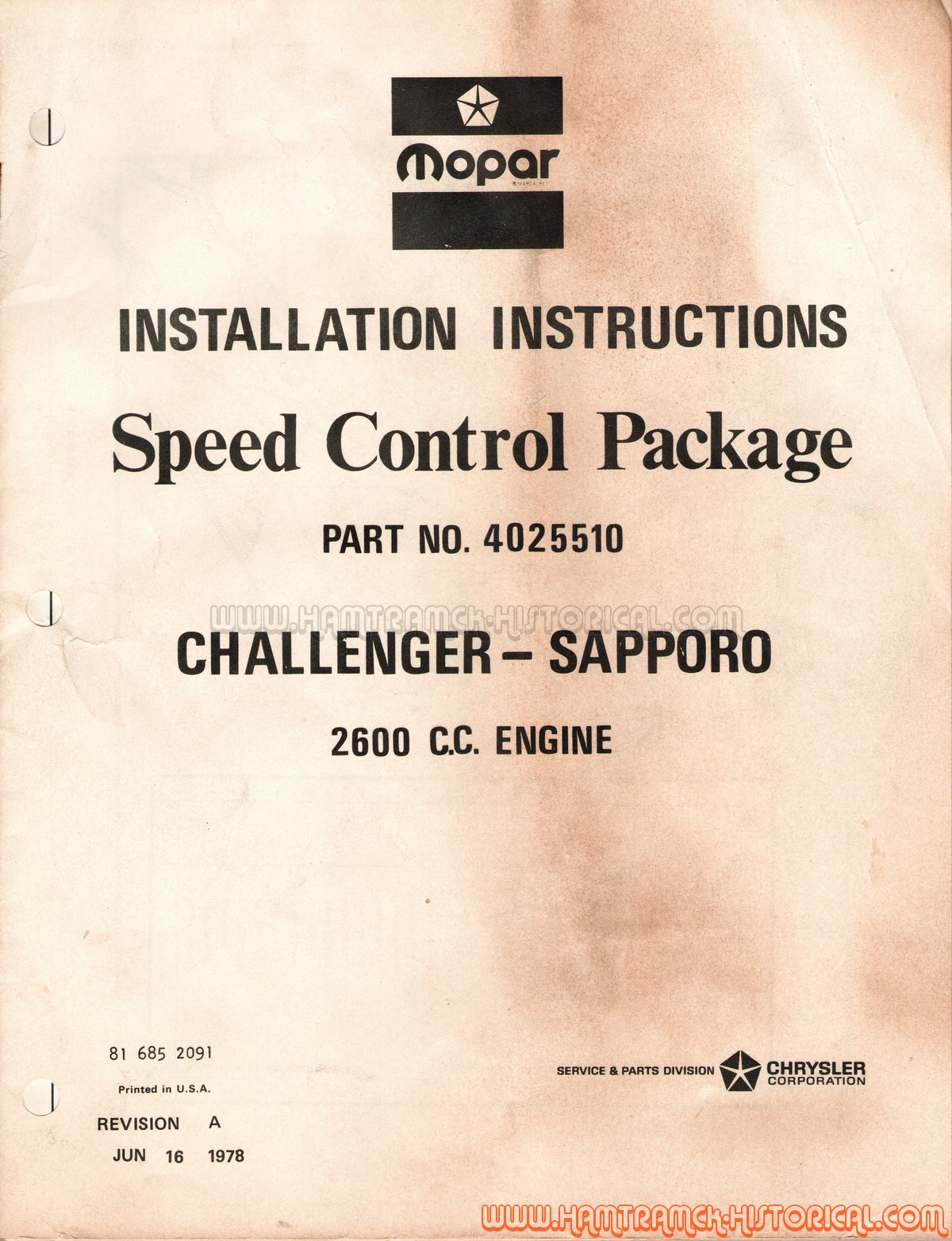

Installation Instructions Cover

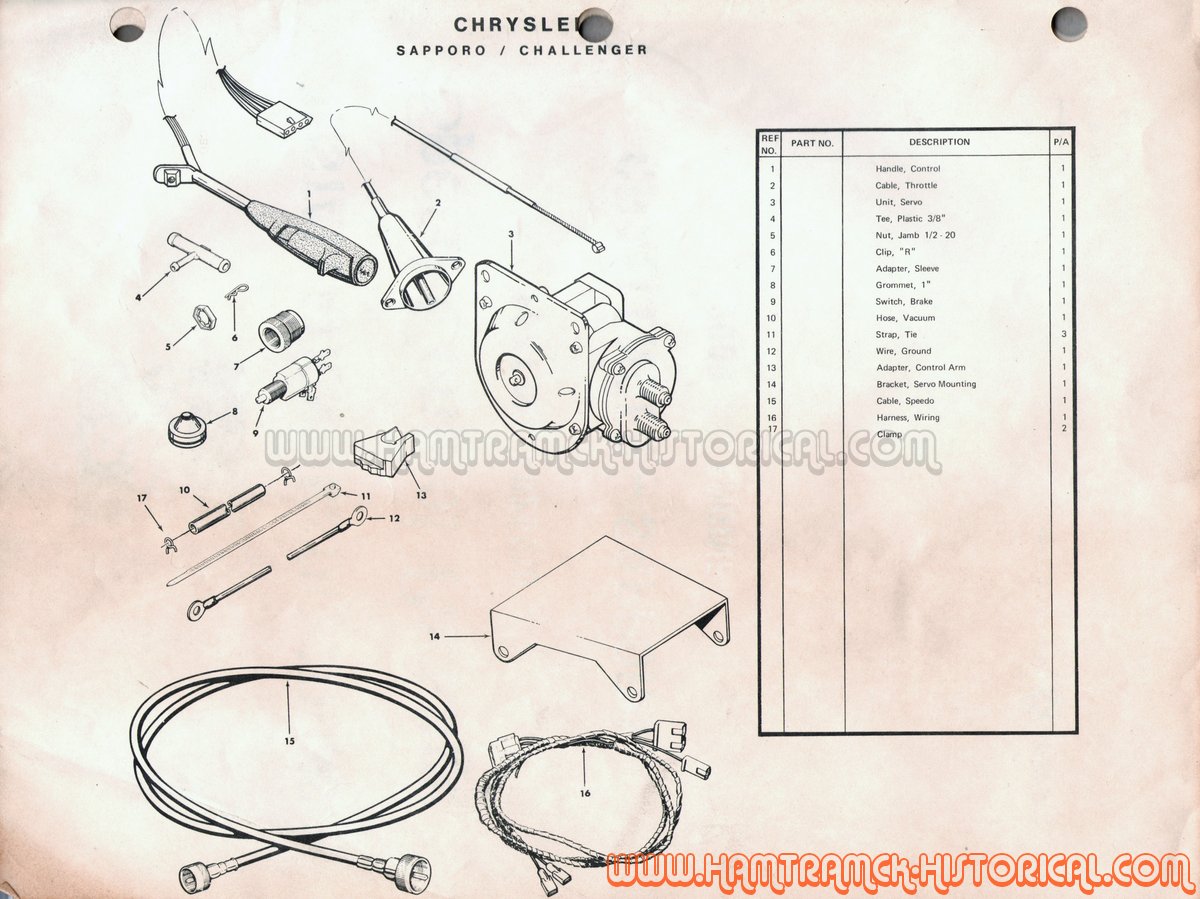

Image: Sapporo Ins R2.0
Parts
Image: Sapporo Ins R2.1

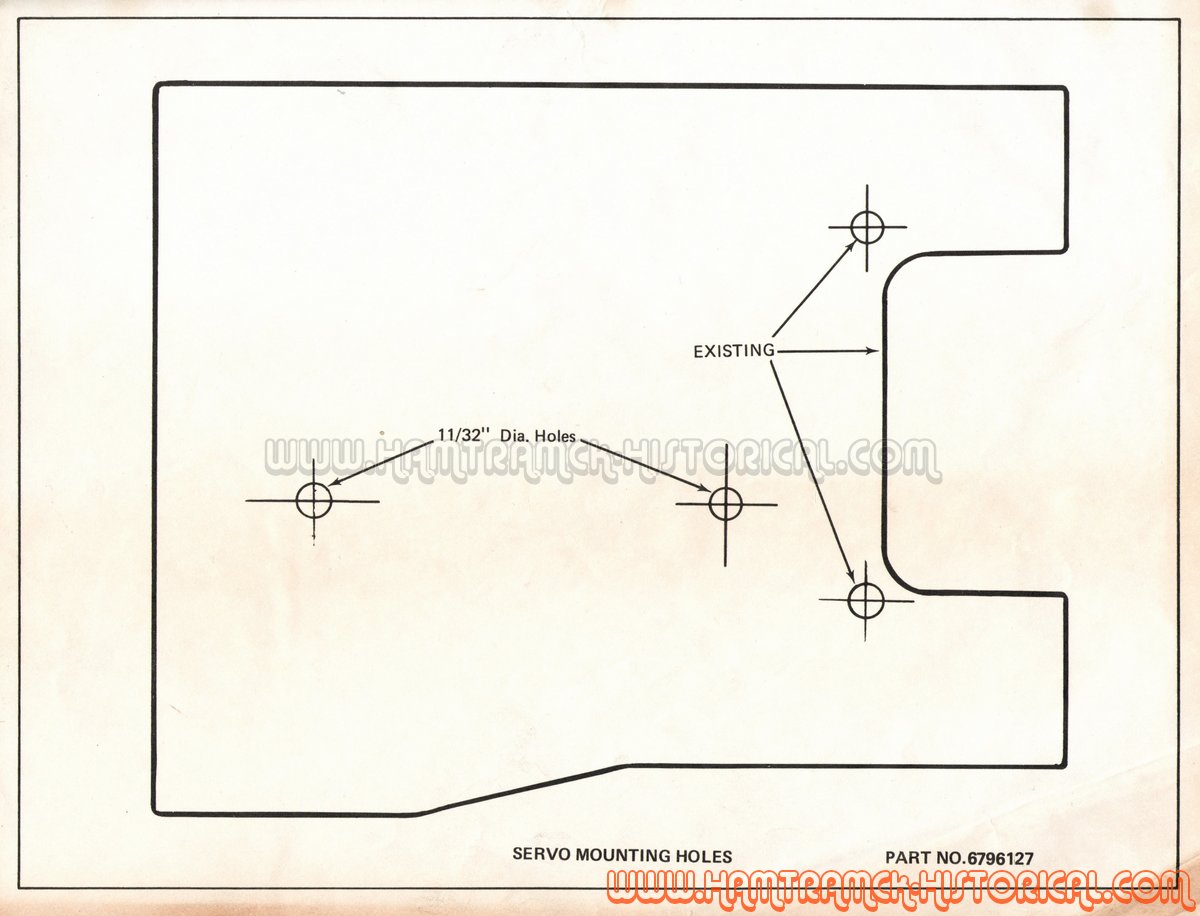

Servo Mounting Holes ...
Image: Sapporo Ins R3
Install the servo unit...

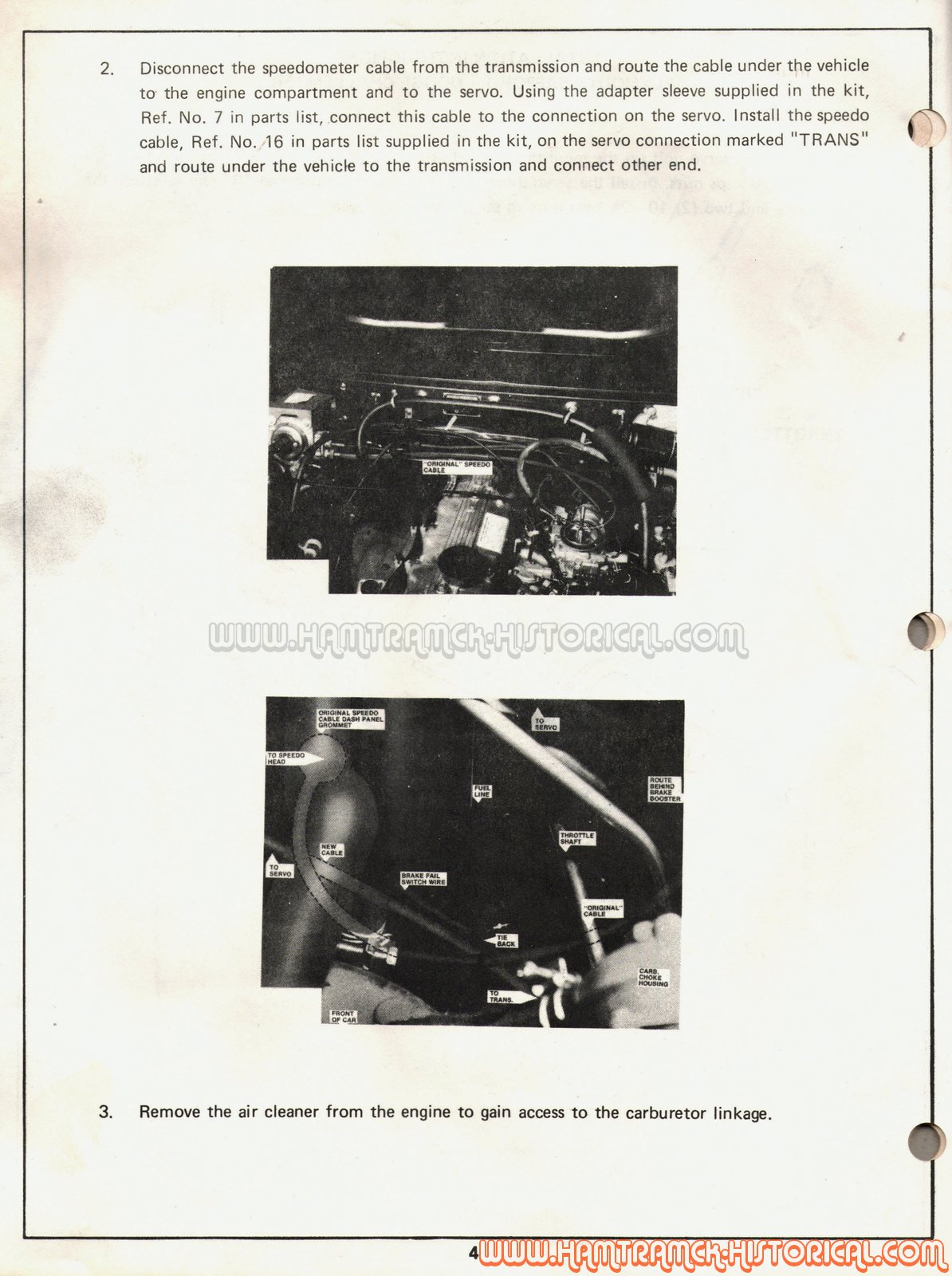

Image: Sapporo Ins R4
Disconnect the speedometer cable, remove air cleaner

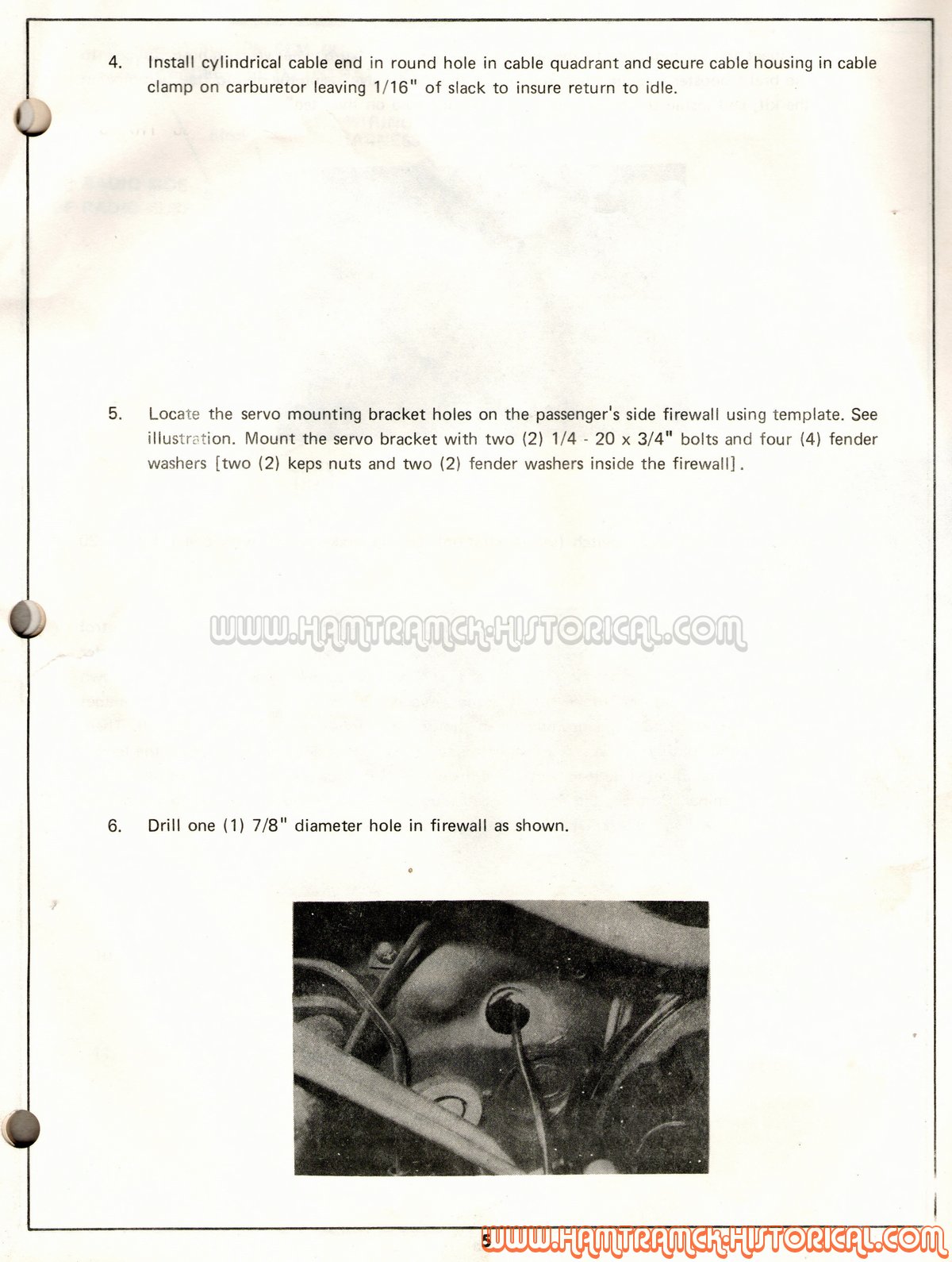

Image: Sapporo Ins R5
Install Cylindrical Cable, locate servo mounting bracket holes ...
Image: Sapporo Ins R6

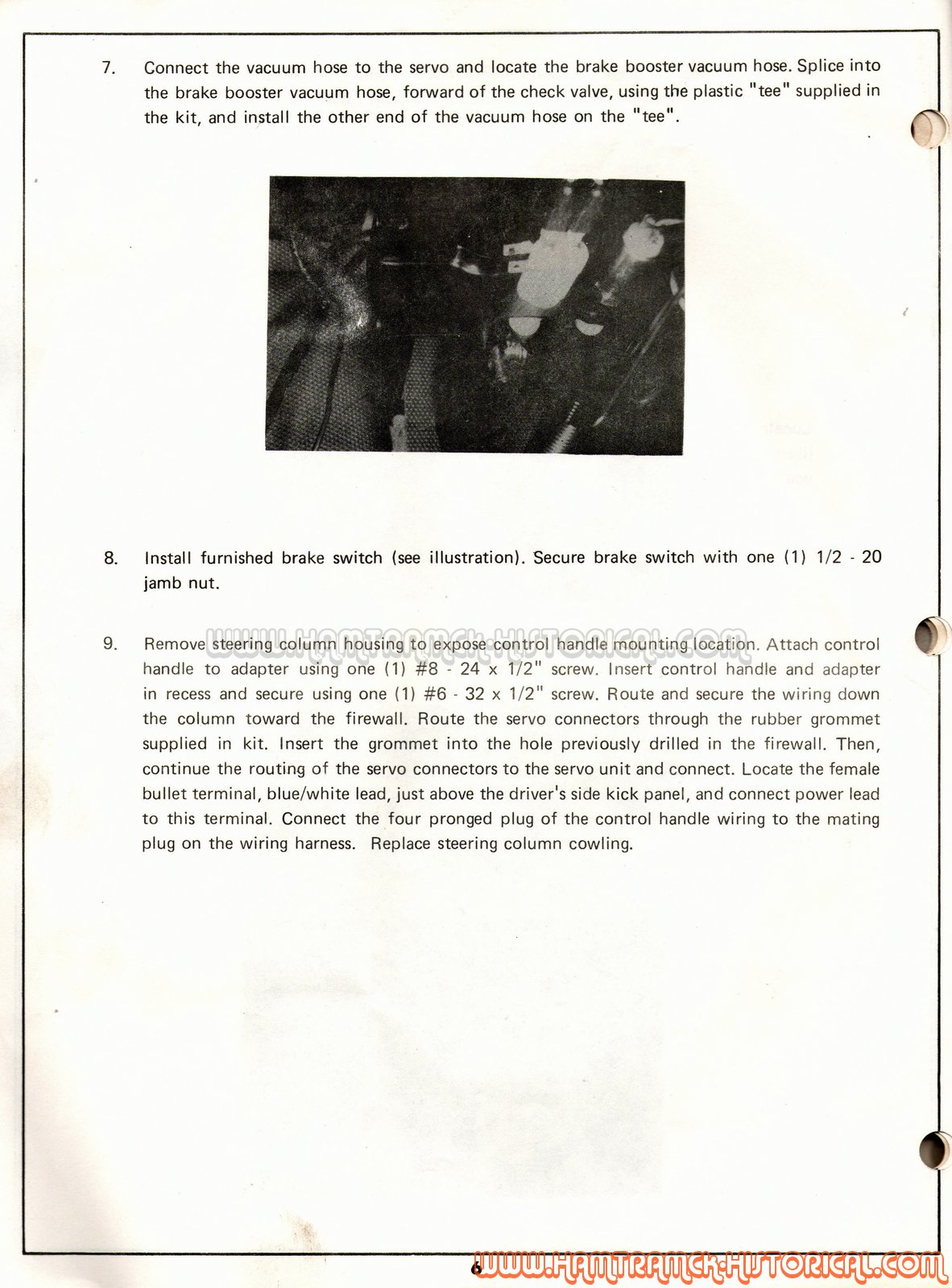

Connect the vacuum hose, Install furnished brake switch...

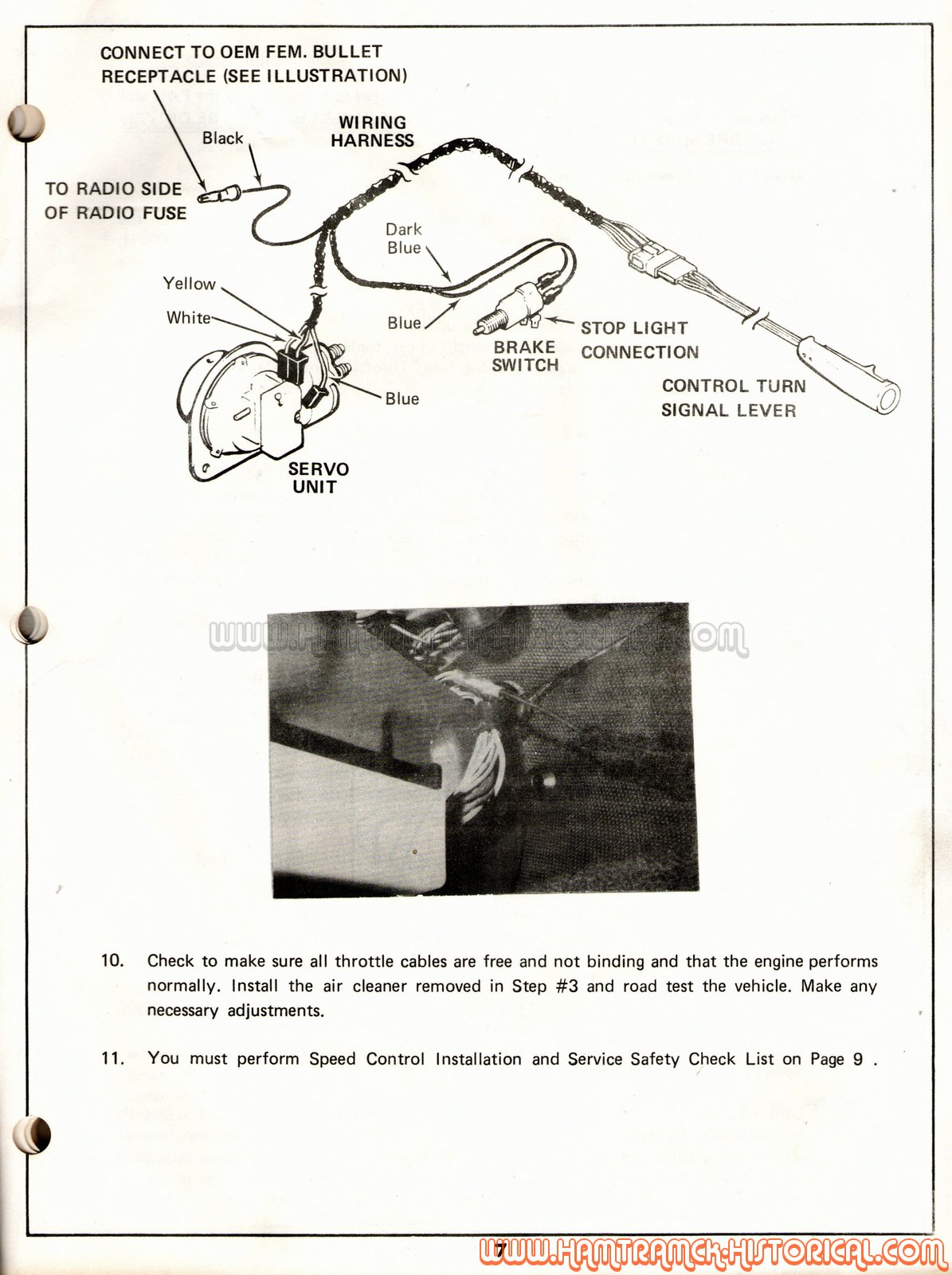

Image: Sapporo Ins R7
Connect to OEM Fem. Bullet ...

Image: Sapporo Ins R8

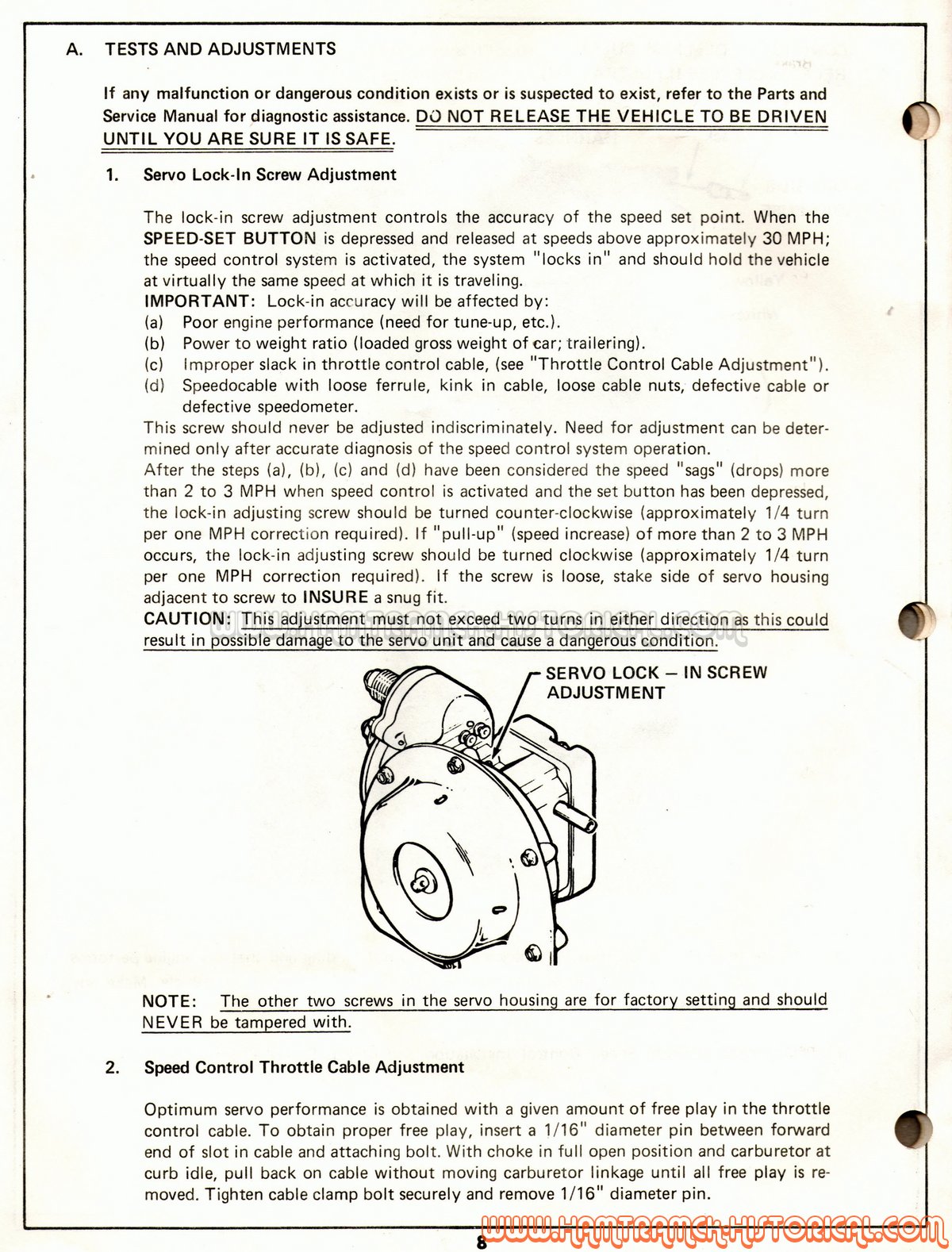

Tests and Adjustments

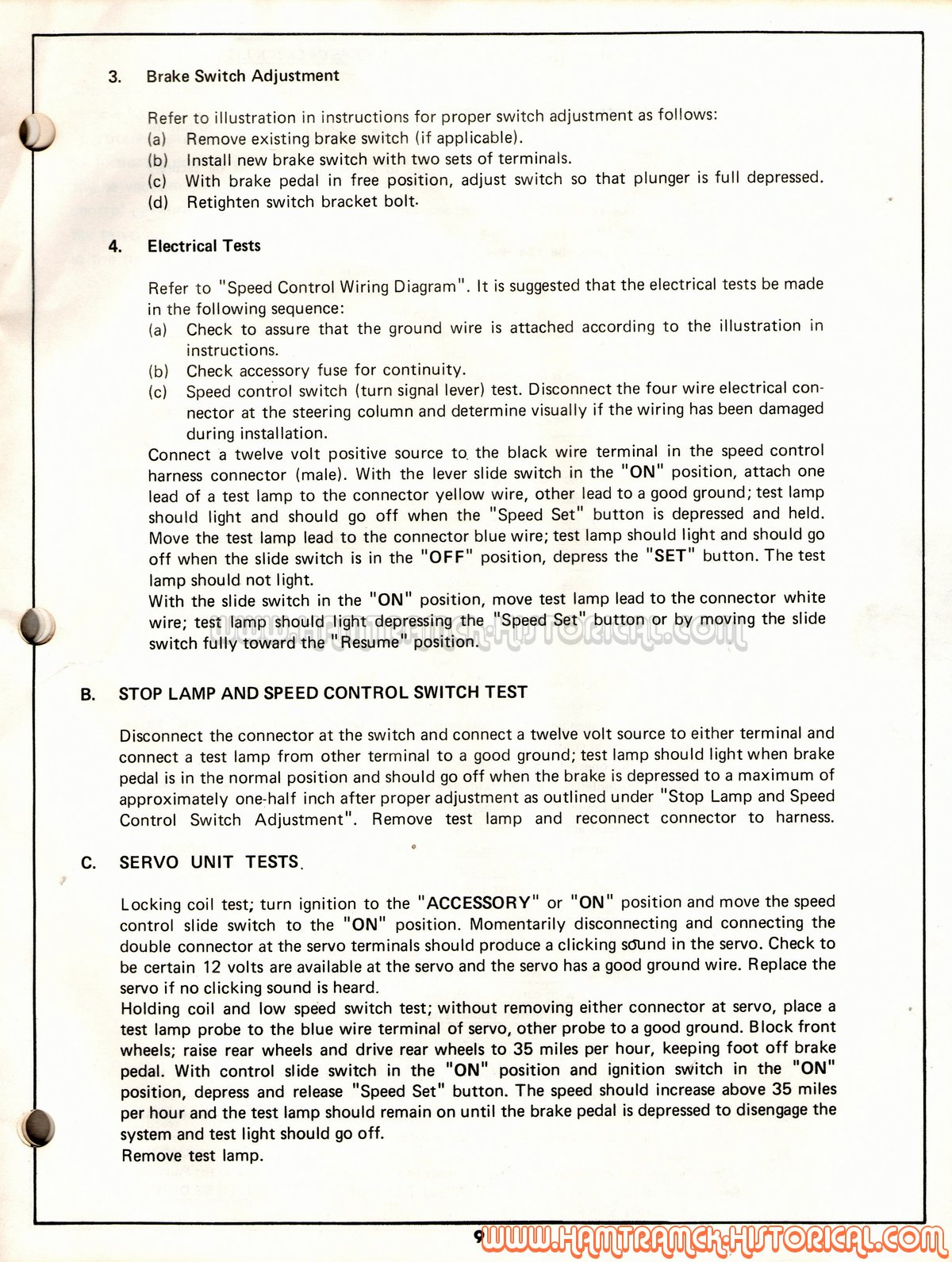

Image: Sapporo Ins R9
Brake Switch Adjustment, Electrical Tests, Stop Lamp and Speed control Switch Test, Servo Unit Tests
Image: Sapporo Ins R10

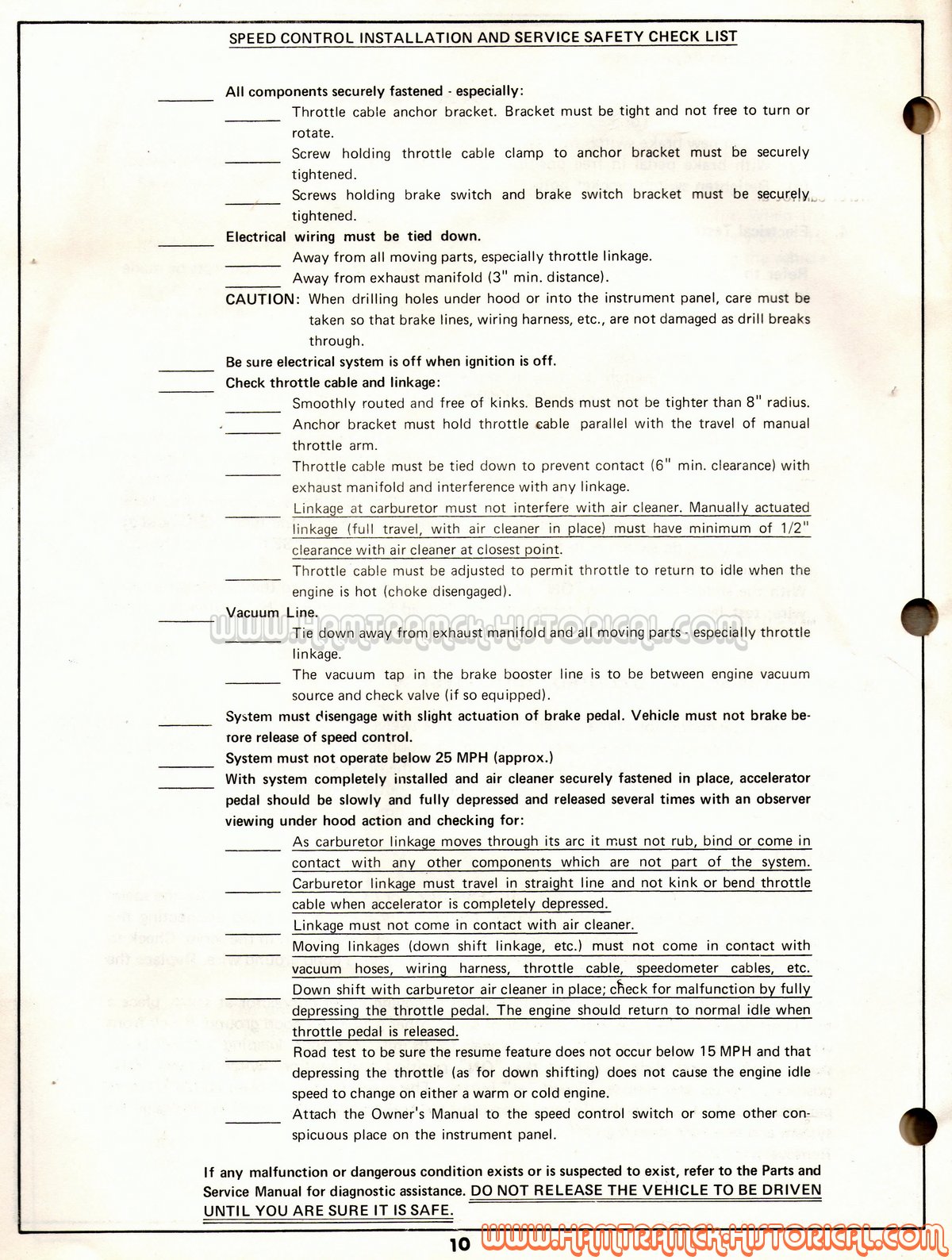

Speed Control Installation and Service Safety Check List
Image: Sapporo Ins R11

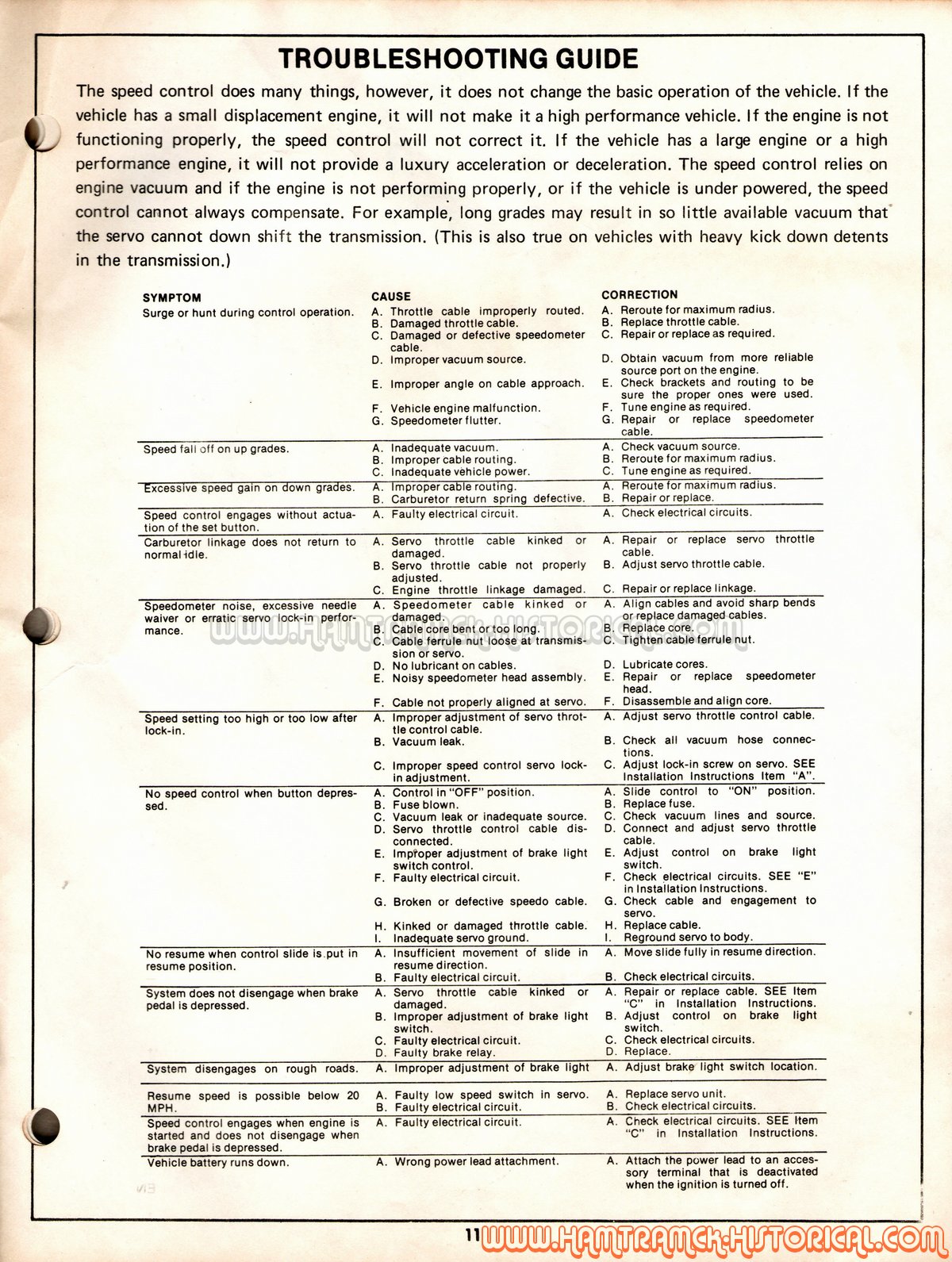

Troubleshooting Guide
